Compact Control Unit SHEV 3

    Part numberST4 3140
    Input voltage230 V AC
    Output voltage24 V DC
    Output current3.0
    SHE Groups1
    Ventilation groups1
Compact control panel SHEV 3 230 V AC / 24 V DC / 3 A The SHEV compact control panel is a... more
Product information "Compact Control Unit SHEV 3"

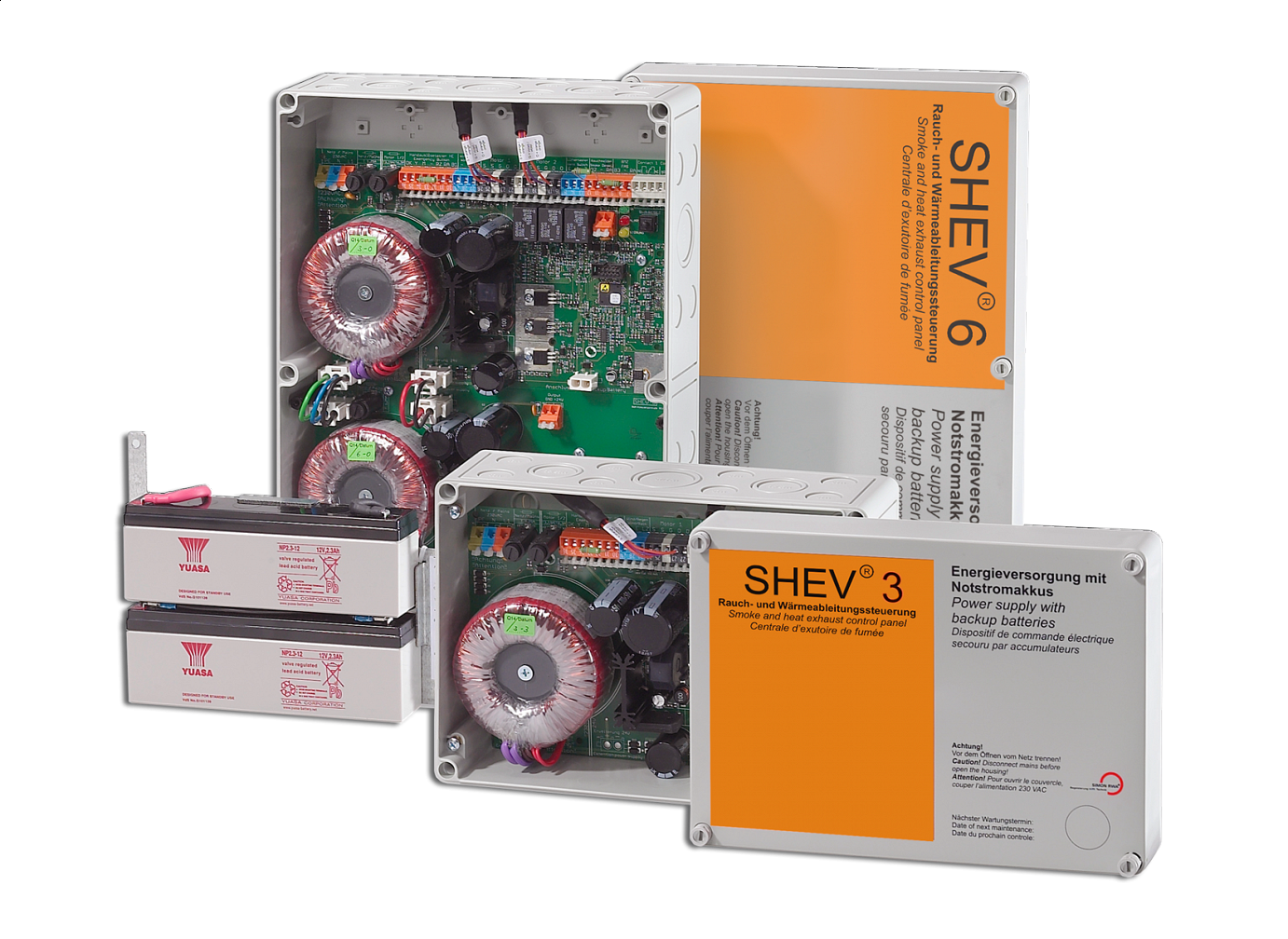

Compact control panel SHEV 3
230 V AC / 24 V DC / 3 A

The SHEV compact control panel is a compact device with an output current of 3 A. The control panel contains a primary and secondary power supply as well as the entire control and regulation technology for operating 24 Volt DC actuators for building openings, e.g. windows and smoke exhaust flaps. The compact control panel controls the actuators in case of fire as well as for daily ventilation. The SHEV compact control panel is specially designed for SHEV use in stairwells and for NSHEV and offers all necessary connections for release devices (push buttons, smoke detector, fire alarm system). In addition, various components can be connected for daily ventilation applications: wind/rain detectors, vent buttons, timers and higher-level controls. The ventilation function is at the same time a daily function control of the SHEV system.

The SHEV compact control panel is CE certified according to EN 12101-10 and tested according to ISO 21927-9.

Technical data:
Input voltage: 230 V AC
Output voltage: 24 V DC
Output current: 3 A
Monitoring: continuous and short-term operation
Protection class:: IP66
Temperature range: -5°C - +40°C
SHEV groups: 1
Ventilation groups: 1
Housing: Plastic
Color: grey (similar RAL 7035)
Dimensions (WxHxD): 254 x 180 x 111 mm
Weight: 4.40 kg

Manufacturer:
SIMON PROtec Systems GmbH
Typ: Compact control panel SHEV 3
Article number: ST4 3140

Output current (Ampere): 3 A
SHEV / VENT: Natuaral ventilation, SHEV, SHEV & Natural ventilation
Output voltage: 24 V DC
