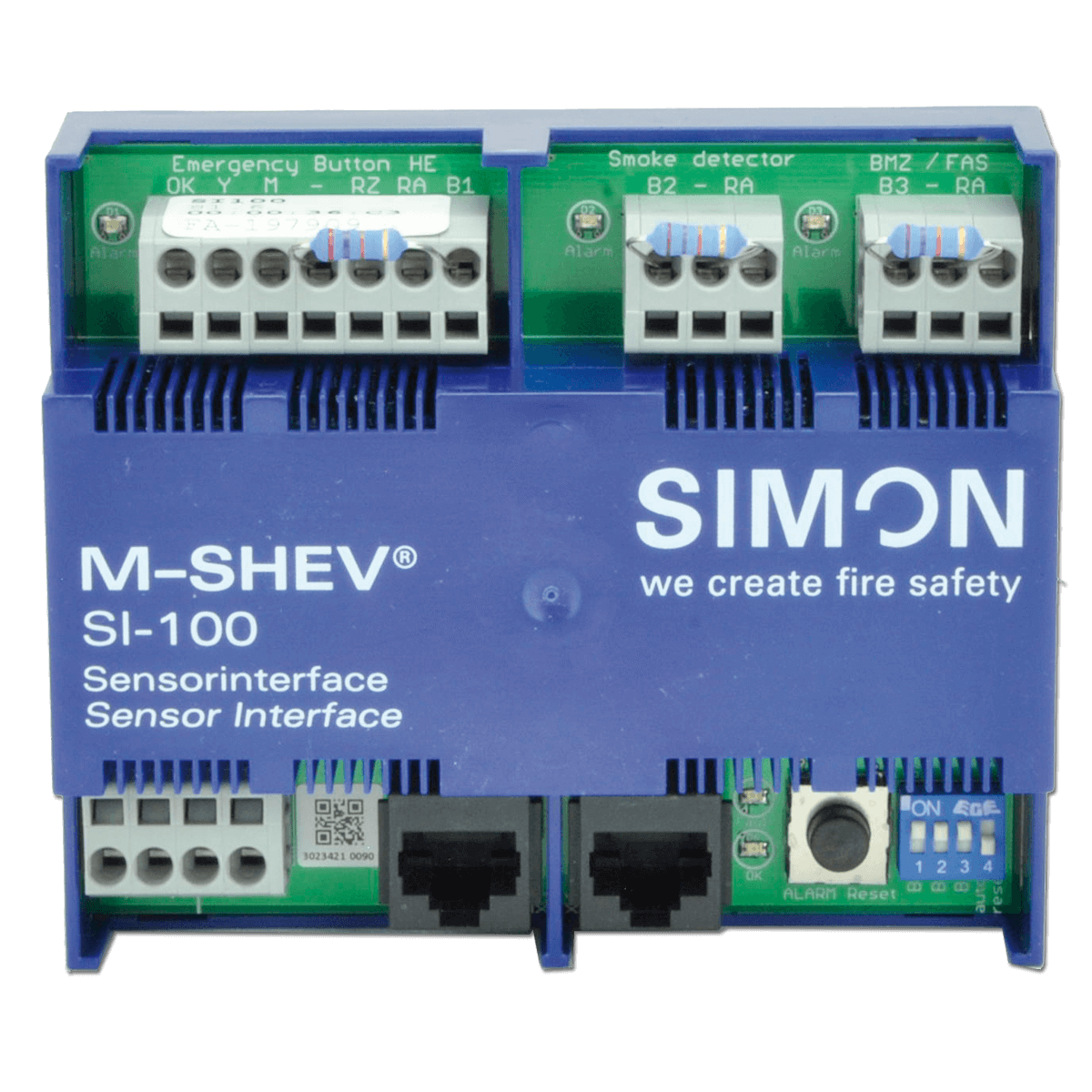

Sensor interface SI-100

Preview: SI-100 Module M-SHEV Preview: SimonLink diagnostic software
SI-100 Module M-SHEV
SimonLink diagnostic software

    Part numberST4 3381
    Input voltage24 V DC
    Output voltage24 V DC
Description Technische Daten Downloads
Description
Sensor interface SI-100 Responsible for the management of a SHEV group. Provides standby... more
Close menu
Product information "Sensor interface SI-100"

Sensor interface SI-100

Responsible for the management of a SHEV group. Provides standby current monitored detection lines for manual release pushbuttons (SHEV pushbuttons - max. 8 pieces), smoke detectors/thermo detectors and fire alarm system. Reset button and fault indicators. Individually parameterizable, group assignment and diagnostics via SimonLink software (e.g. FACP auto-reset and priority switching of the detection lines).

Manufacturer:
SIMON PROtec Systems GmbH
Type: Sensorinterface SI-100
Artikelnummer: ST4 3381

Related links to "Sensor interface SI-100"
Downloads
Matchcode SI-100 Article name Sensorinterface SI-100 Part number ST4 3381... more
Zurück
MatchcodeSI-100
Article nameSensorinterface SI-100
Part numberST4 3381
Input voltage24 V DC
Output voltage24 V DC
LED signs- Auslöselinie ausgelöst (separat für B1, B2 und B3) - rot - Störung (Störungen des SI 100 oder an einem der zugeordneten MR 100)
Weight0.208
Housing typePlastic
Appliance classI
Nominal working temperature20
Environment temperature range-5 °C - 40 °C
Technische Daten
Product Information... more
Zurück

Product Information

Brochure Control Panels Brochure Control Panels
Brochure M-SHEV control units Brochure for the modular control panel M-SHEV
Brochure M-SHEV_EN Brochure for the modular control panel M-SHEV (English)
Catalogue (web) Smoke & Daily Vent Catalogue (web) Smoke & Daily Vent

Certificates

CE-Certificate M-SHEV Declaration of conformity for the modular control panels M-SHEV-10, M-SHEV-10-AP, M-SHEV-12, M-SHEV-12-AP, M-SHEV-12-AP-ECO, M-SHEV-24-AP-ECO, M-SHEV-24, M-SHEV-48, M-SHEV-XX (cascadable power supply EV-24 / 48 A)
Environmental Product Declaration (EPD) Environmental Product Declaration (EPD)
