Modular control panel M-SHEV-12-AP-ECO

    Part numberST4 3437
    Input voltage230 V AC
    Output voltage24 V DC
    Output current12
    SHE Groups1
    Ventilation groups1
Modular control panel M-SHEV-12-AP-ECO 230 V AC / 24 V DC / 12 A The M-SHEV-12-AP modular... more
Product information "Modular control panel M-SHEV-12-AP-ECO"

Modular control panel M-SHEV-12-AP-ECO
230 V AC / 24 V DC / 12 A

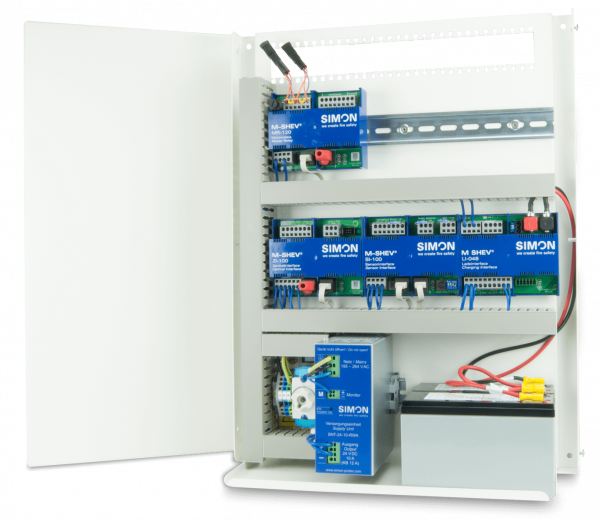

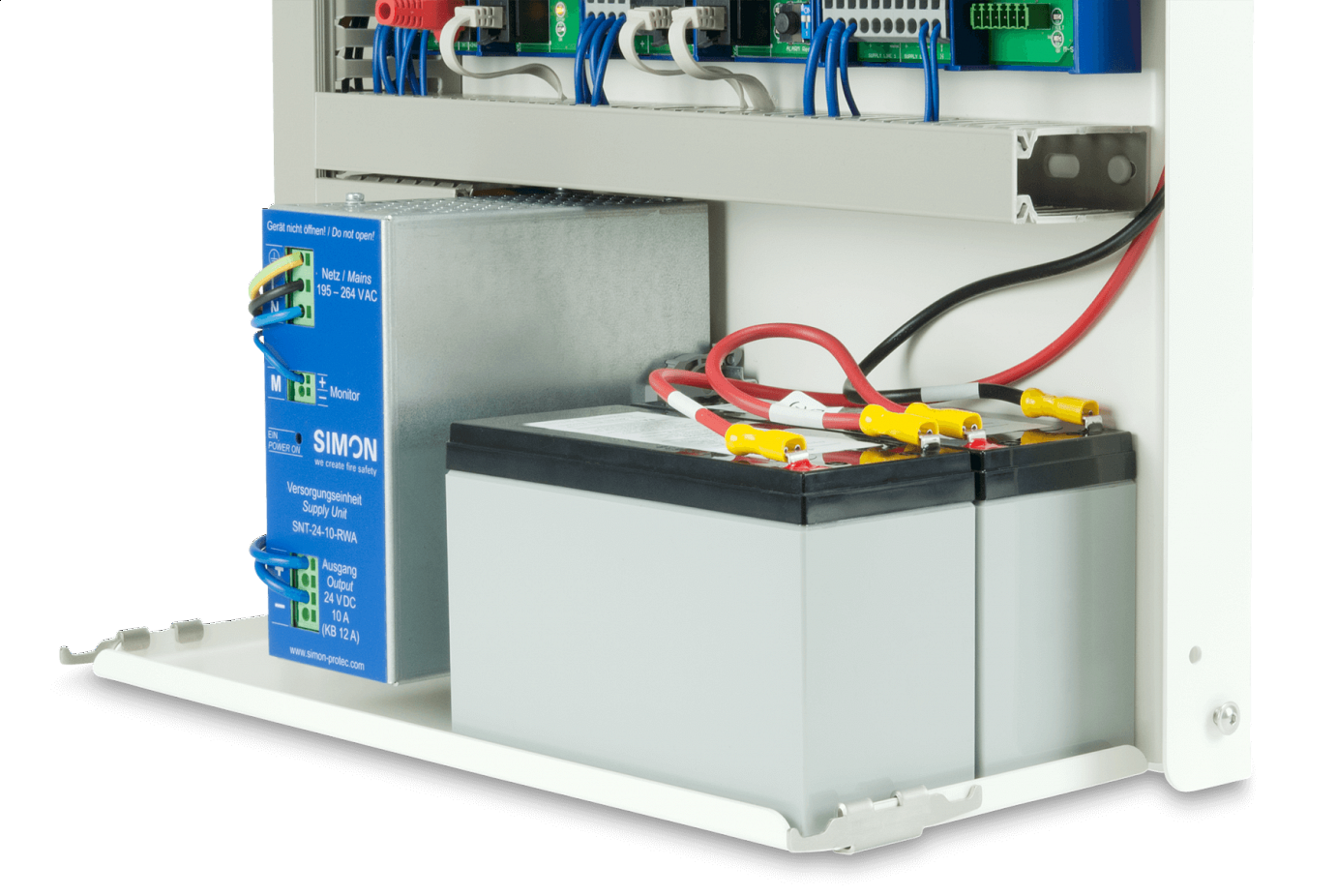

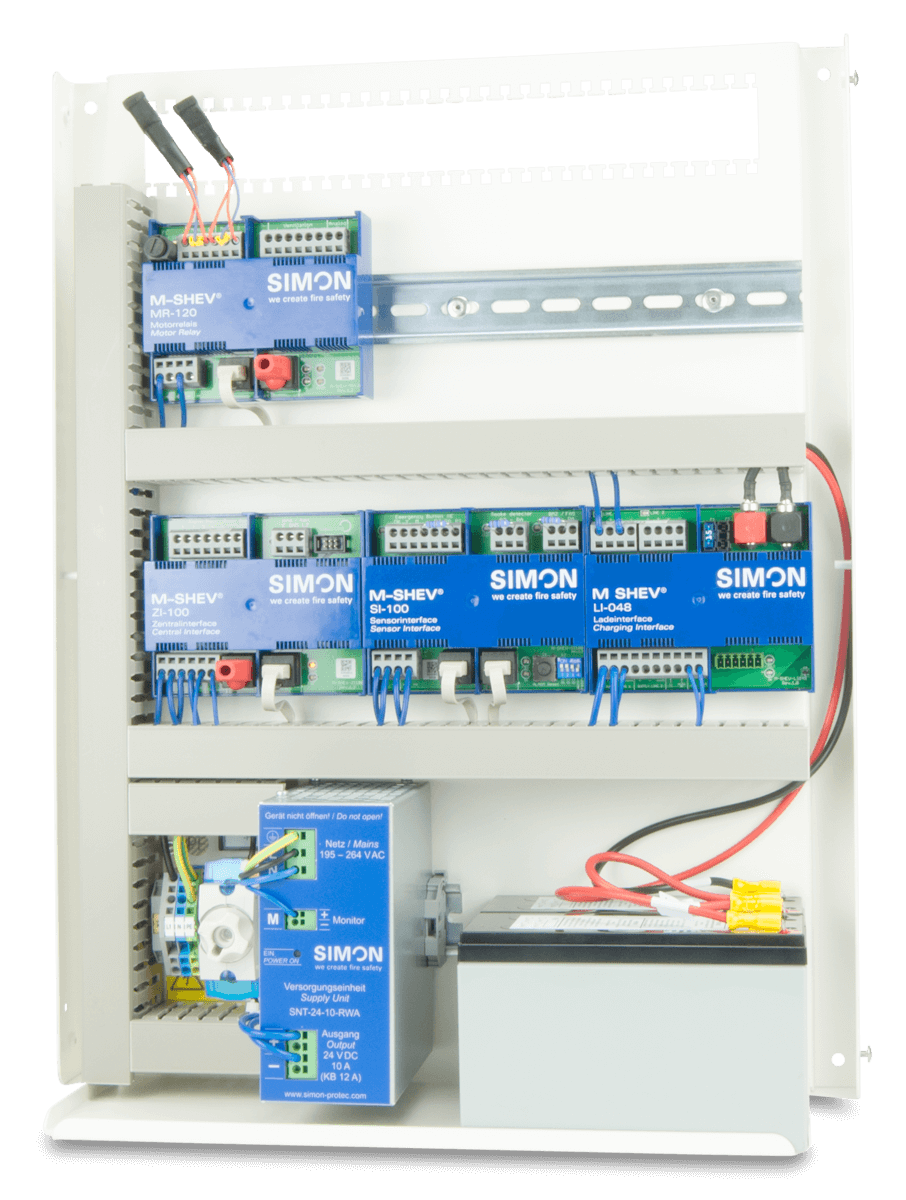

The M-SHEV-12-AP modular control panel is an electrical control device in a sheet steel housing with power supply, emergency power supply and all control and regulation electronics for operating 24 V DC actuators for building openings, e.g. windows and smoke exhaust flaps. The M-SHEV modular control panel controls actuators both in case of fire and for daily ventilation. In the event of a power failure, the emergency power supply ensures the function of the SHEV system for at least 72 hours. The M-SHEV modular control panel provides all necessary connections for release devices (push buttons, smoke detector, fire alarm system). In addition, various components can be connected for daily ventilation applications, e.g. wind/rain detectors and vent buttons. The ventilation function is at the same time a daily function check of the SHEV system. The M-SHEV modular control panel is CE certified according to EN 12101-10.

Technical data:
Input voltage: 230 V AC
Output voltage: 24 V DC
Output current: 12 A
Monitoring: continuous and short-term operation
Protection class: IP20
Temperature range: -5°C - +40°C
Housing: Sheet steel case
Color: RAL 9010
Dimensions (WxHxD): 400 x 516 x 155 mm
Weight: 14.3 kg

Manufacturer:
SIMON PROtec Systems GmbH
Typ: Modular control panel M-SHEV-12-AP-ECO
Article number: ST4 3437

Related links to "Modular control panel M-SHEV-12-AP-ECO"
Matchcode M-SHEV-12-AP-ECO Article name Modulzentrale M-SHEV-12-AP-ECO Part number... more
MatchcodeM-SHEV-12-AP-ECO
Article nameModulzentrale M-SHEV-12-AP-ECO
Part numberST4 3437
Input voltage230 V AC
Output voltage24 V DC
Output current12
ClassificationCE zertifiziert DIN EN 12101-10, geprüft ISO 21927-9
LED signsLED-Anzeige Betriebszustand Netz: Daueranzeige grün - Netz vorhanden LED-Anzeige Betriebszustand Bleiakku („O.K.“): Daueranzeige grün - Akku vorhanden und wird geladen (Ladung wird erhalten)
IP codeIP20
SHE Groups1
Ventilation groups1
Weight14.3
HousingStahlblechgehäuse
Housing typeSteel case
ColourRAL 9010
Housing width400
Housing height516
Housing depth155
Appliance classI
Environment temperature range-5°C - +40°C
