Motor relay MR-120

Preview: MR-120 Module M-SHEV Preview: MR-120 Module M-VENT Preview: SimonLink diagnostic software
MR-120 Module M-SHEV
MR-120 Module M-VENT
SimonLink diagnostic software

    Part numberST4 3383
    Input voltage230 V AC
    Output voltage24 V DC
Description Technische Daten Downloads
Description
Motor relay MR-120 Responsible for controlling 24 V DC actuators in two monitored lines... more
Close menu
Product information "Motor relay MR-120"

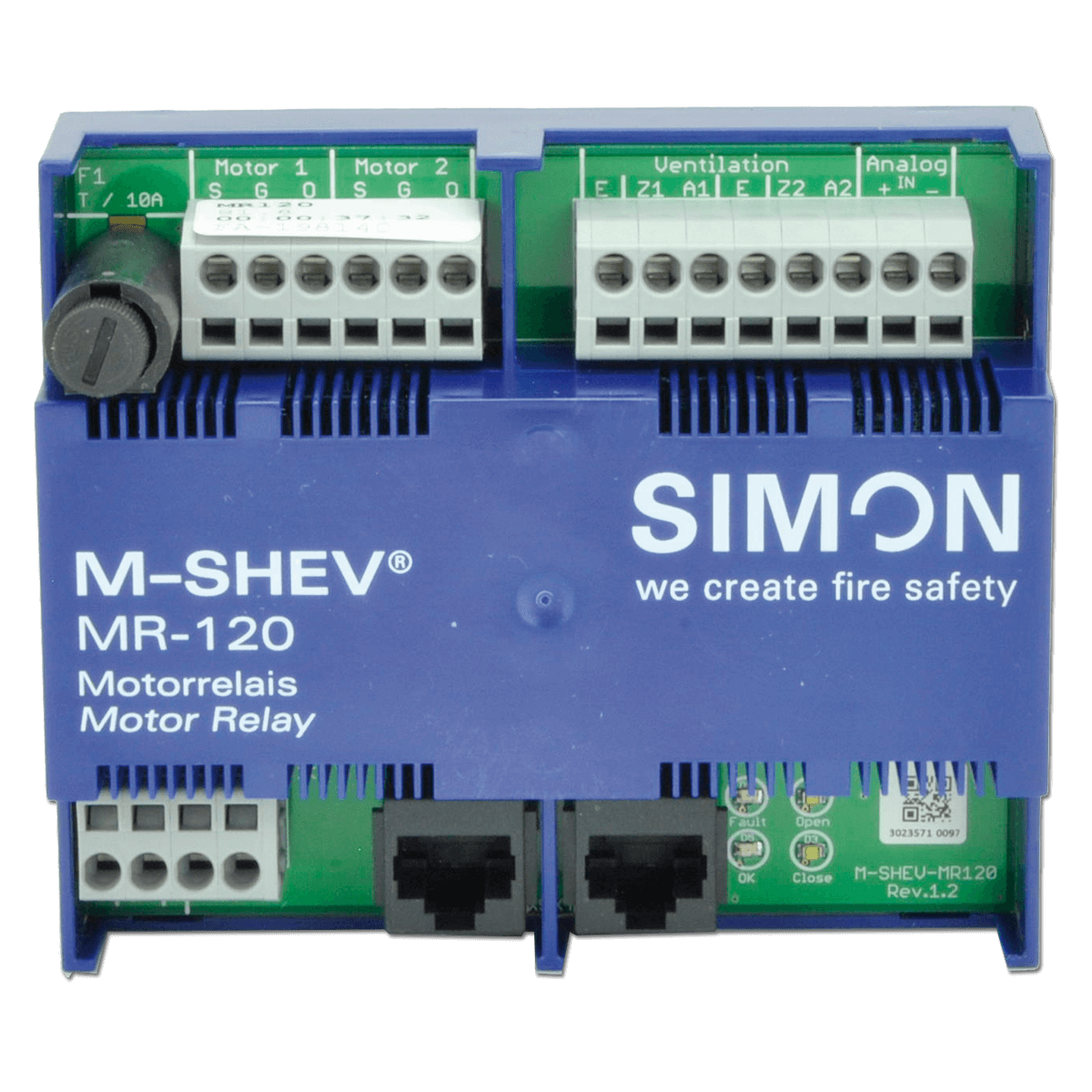

Motor relay MR-120

Responsible for controlling 24 V DC actuators in two monitored lines (common control) with a maximum total current of 12 A. Switching is done by pole reversal technique. Connection for two independent ventilation inputs, individually parameterizable (e.g. priority switching, gap ventilation, start-up delays). The ventilation inputs have a permanent contact in OPEN and CLOSE or automatic dead man function by prolonged pressing. The permanent control of the actuators in dead man according to the requirements for risk analysis for power operated windows is freely adjustable. MR-120 modules can be operated in solo or freely combined in ventilation and SHE groups. With fault indication. Output voltage: 24V DC, ripple < 500 mV (residual ripple < 5 %).

Manufacturer:
SIMON PROtec Systems GmbH
Type: Motor relay MR-120
Article number: ST4 3382

Related links to "Motor relay MR-120"
Downloads
Matchcode MR-120 Article name Motor Relais MR-120 Part number ST4 3383 Input... more
Zurück
MatchcodeMR-120
Article nameMotor Relais MR-120
Part numberST4 3383
Input voltage230 V AC
Output voltage24 V DC
LED signsLEDs auf Ladekarte: 1. Grüne LED “AKKU” = OK (Akku ist vorhanden und wird geladen) 2. Grüne LED “NETZ” = Netzbetrieb weitere LEDs auf den Modulen
IP codeIP54
Weight0.241
HousingStahlblech
Housing typeSteel case
ColourRAL7035
Appliance classI
Environment temperature range-5 °C - 40 °C
Technische Daten
Product Information... more
