BUS Interface BI-100-KNX

Preview: BI-100 Module M-VENT Preview: SimonLink diagnostic software
BI-100 Module M-VENT
SimonLink diagnostic software

    Part numberST4 3389
    Input voltage24 V DC
    Output voltage24 V DC
Description Technische Daten Downloads
Description
BUS Interface BI-100-KNX The BUS Interface BI-100-KNX consists of the BI-100-MB module with... more
Close menu
Product information "BUS Interface BI-100-KNX"

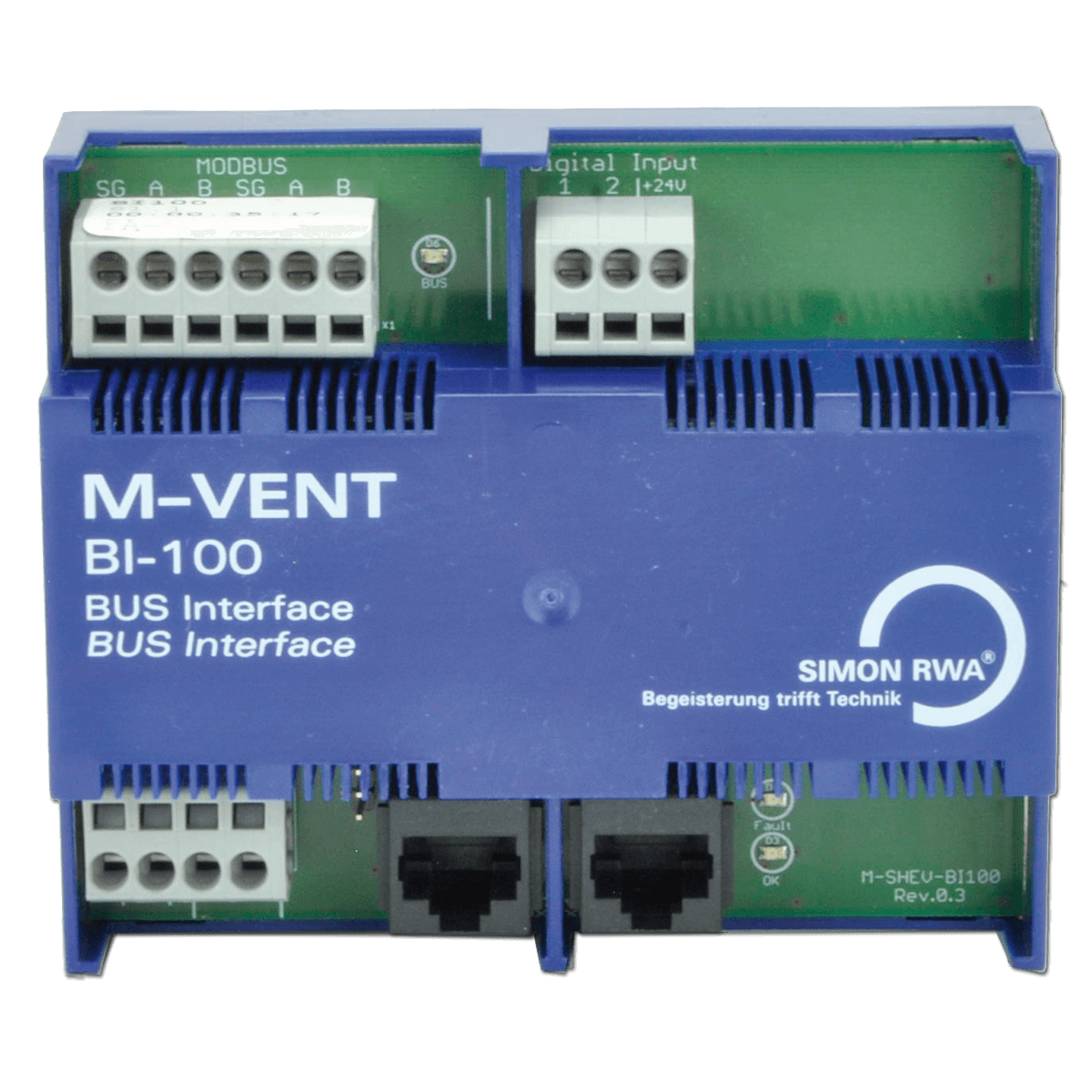

BUS Interface BI-100-KNX

The BUS Interface BI-100-KNX consists of the BI-100-MB module with ModBus output and a certified ModBus-KNX gateway. Provides digital connection of the M-SHEV with an external BUS of the building control system based on KNX. All M-SHEV states are made available to the BUS. In addition, up to 32 free virtual fan buttons can be configured and used in the system.

Manufacturer:
SIMON PROtec Systems GmbH
Type: BUS interface BI-100-KNX
Article number: ST4 3389

Related links to "BUS Interface BI-100-KNX"
Downloads
Matchcode BI-100-KNX Article name BUS Interface BI-100-KNX Part number ST4 3389... more
Zurück
MatchcodeBI-100-KNX
Article nameBUS Interface BI-100-KNX
Part numberST4 3389
Input voltage24 V DC
Output voltage24 V DC
Weight0.248
Housing typePlastic
Appliance classI
Environment temperature range-5 °C - 40 °C
Technische Daten
Product Information... more
Zurück

Product Information

Brochure Control Panels Brochure Control Panels
Brochure M-SHEV control units Brochure for the modular control panel M-SHEV
Brochure M-SHEV_EN Brochure for the modular control panel M-SHEV (English)
Catalogue (web) Smoke & Daily Vent Catalogue (web) Smoke & Daily Vent

User Manuals

Operating manual BI-100 Operating manual for BUS interface BI-100 including KNX

Certificates

CE-Certificate M-SHEV Declaration of conformity for the modular control panels M-SHEV-10, M-SHEV-10-AP, M-SHEV-12, M-SHEV-12-AP, M-SHEV-12-AP-ECO, M-SHEV-24-AP-ECO, M-SHEV-24, M-SHEV-48, M-SHEV-XX (cascadable power supply EV-24 / 48 A)
Environmental Product Declaration (EPD) Environmental Product Declaration (EPD)
