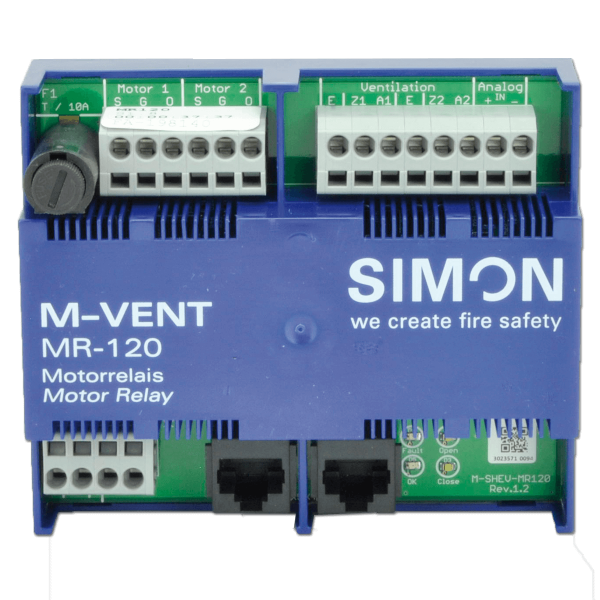

Motor relay MR-120-V

Motor relay MR-120-V

Responsible for controlling 24 V DC actuators in two monitored lines (common control) with a maximum total current of 12 A. Switching is done by pole reversal technology. Connection for two independent ventilation inputs, individually parameterizable (e.g. priority switching, gap ventilation, start-up delays). The ventilation inputs have a permanent contact in OPEN and CLOSE or automatic dead man function by prolonged pressing. The permanent control of the actuators in dead man according to the requirements for risk analysis for power operated windows is freely adjustable. MR-120 modules can be operated in solo or freely combined in ventilation groups. With fault indication. Output voltage: 24V DC, ripple < 500 mV (residual ripple < 5 %).

Manufacturer:
SIMON PROtec Systems GmbH | Medienstraße 8 | D-94036 Passau
Type: Motor relay MR-120-V
Article number: ST4 4050
WEEE Reg. No.: DE 97535049
