VENT-3 ventilation control unit

Preview: VENT-3 with keypad Preview: open VENT-3 with keypad Preview: VENT-3 with accessories Preview: SimonLink diagnostic software

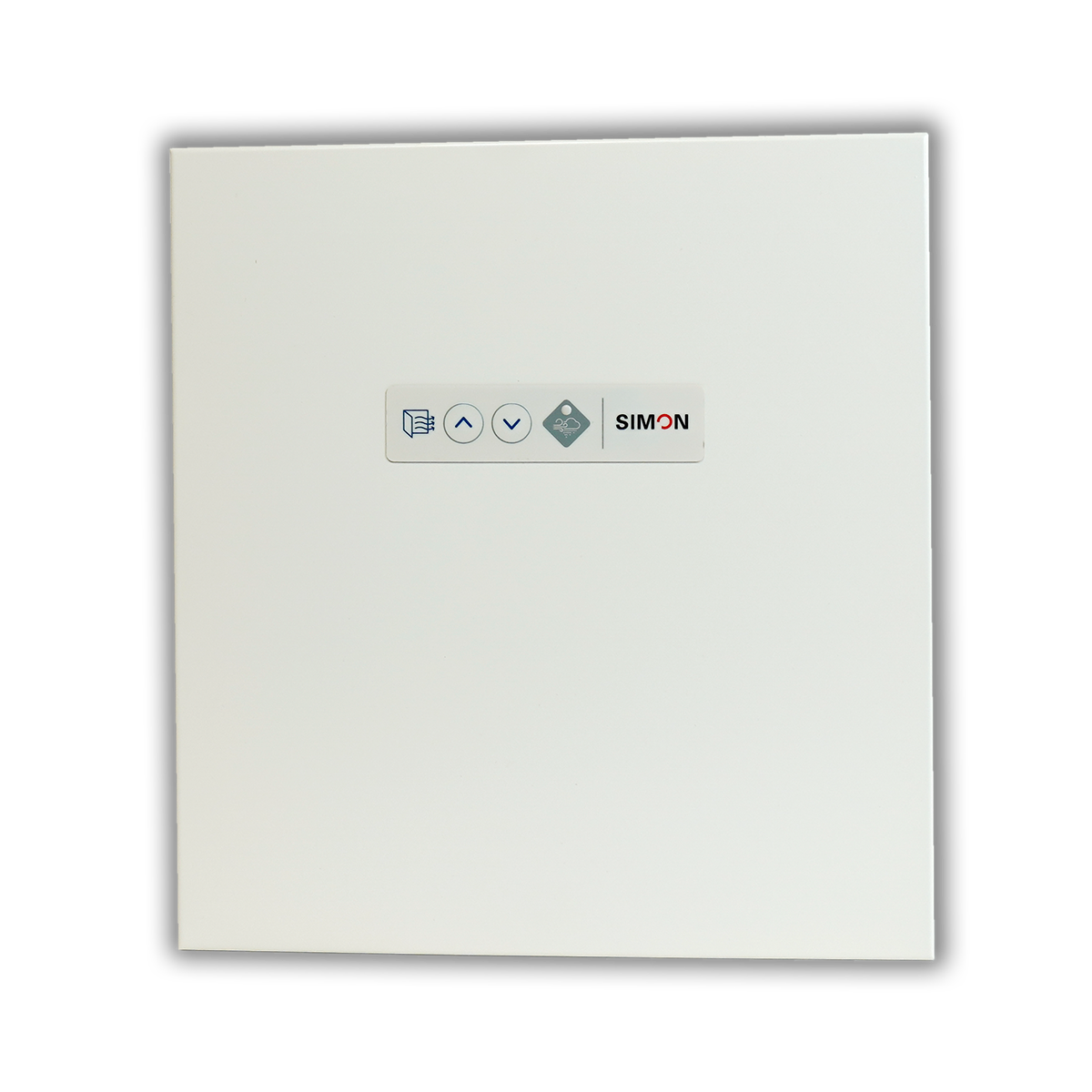

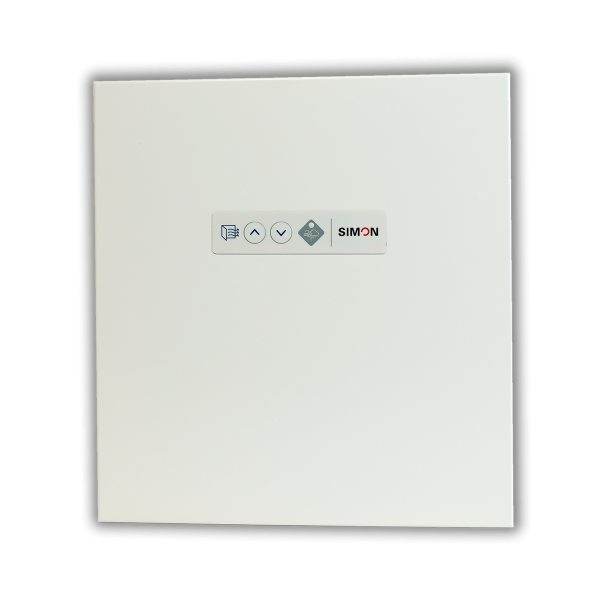

VENT-3 with keypad

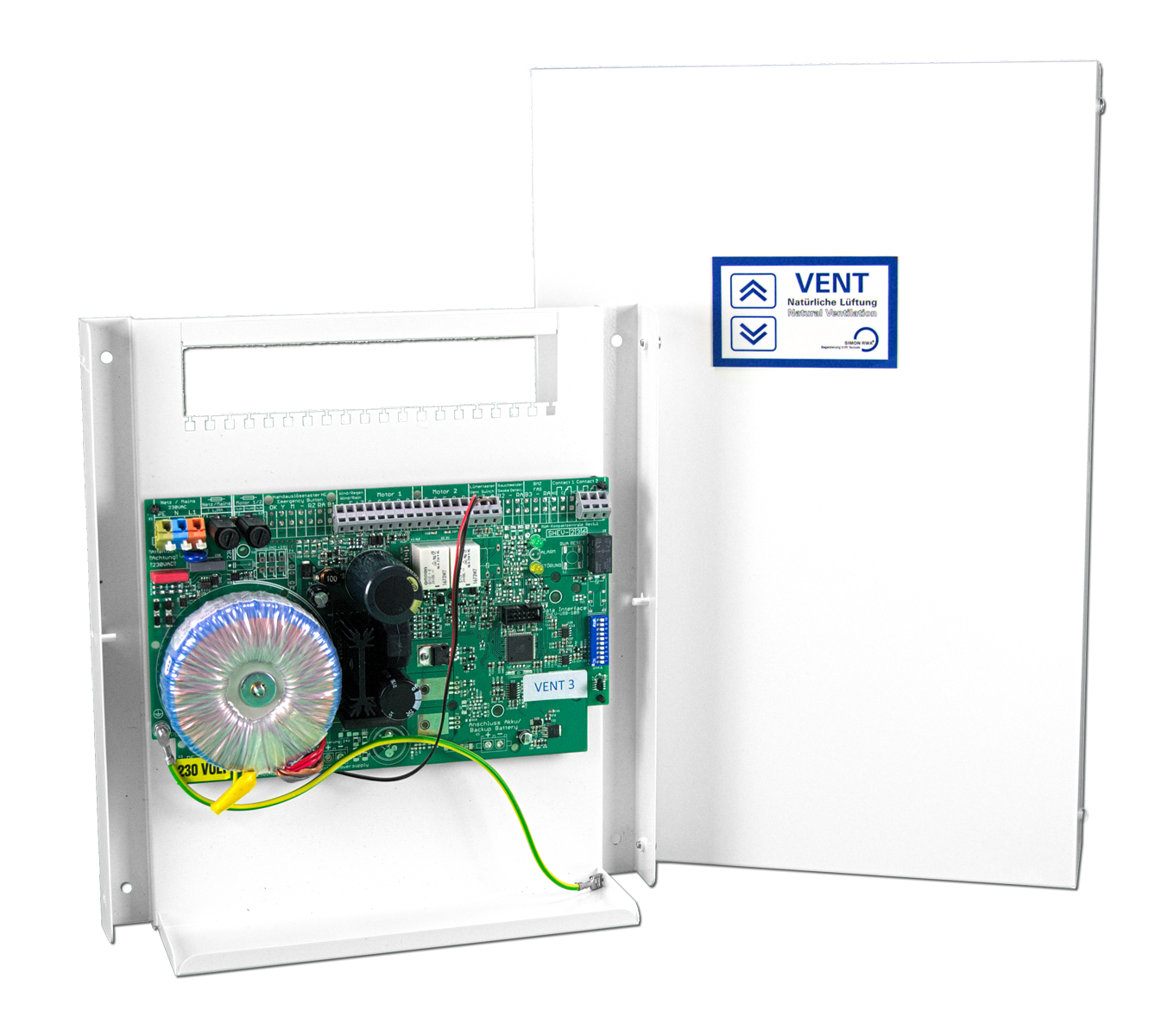

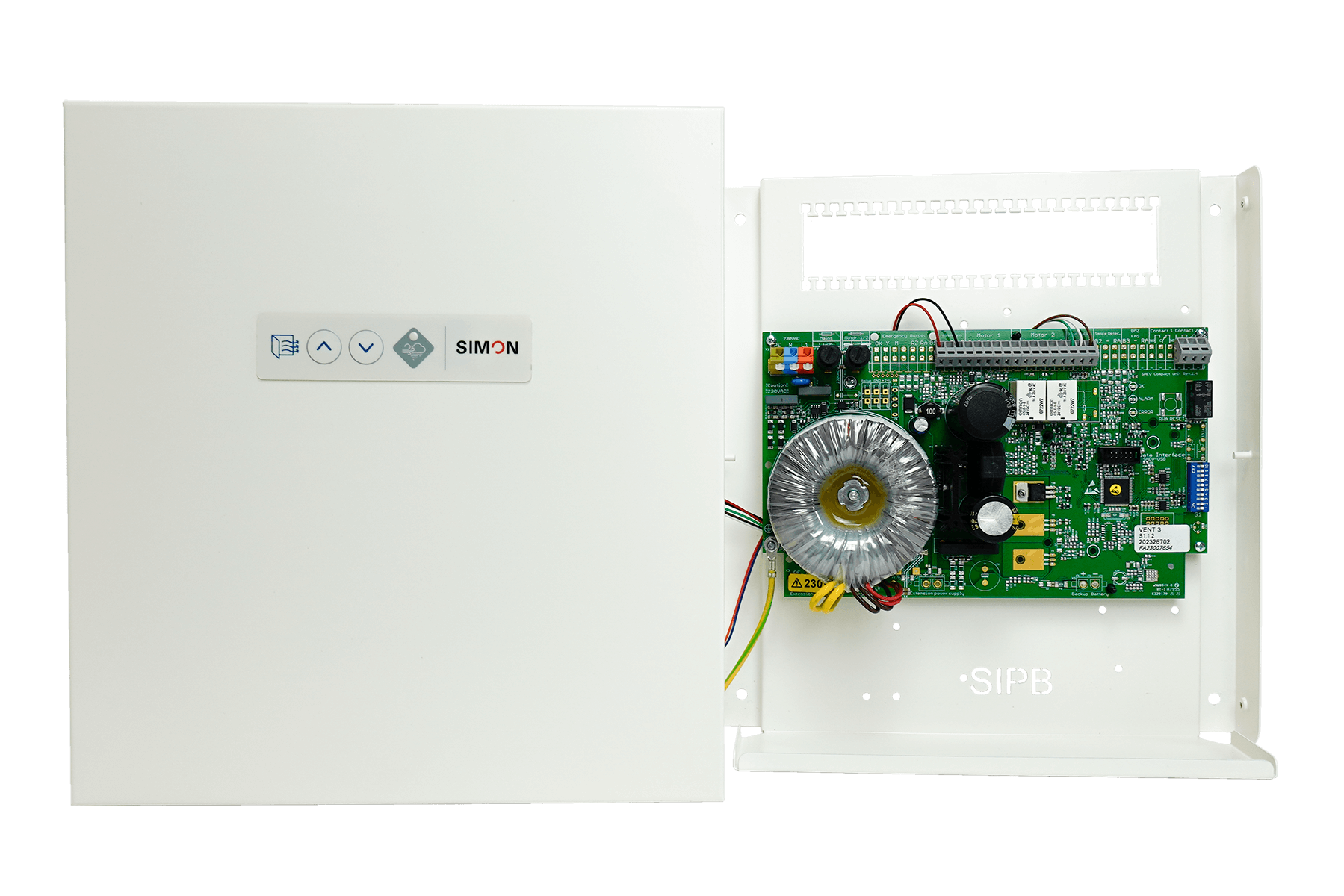

open VENT-3 with keypad

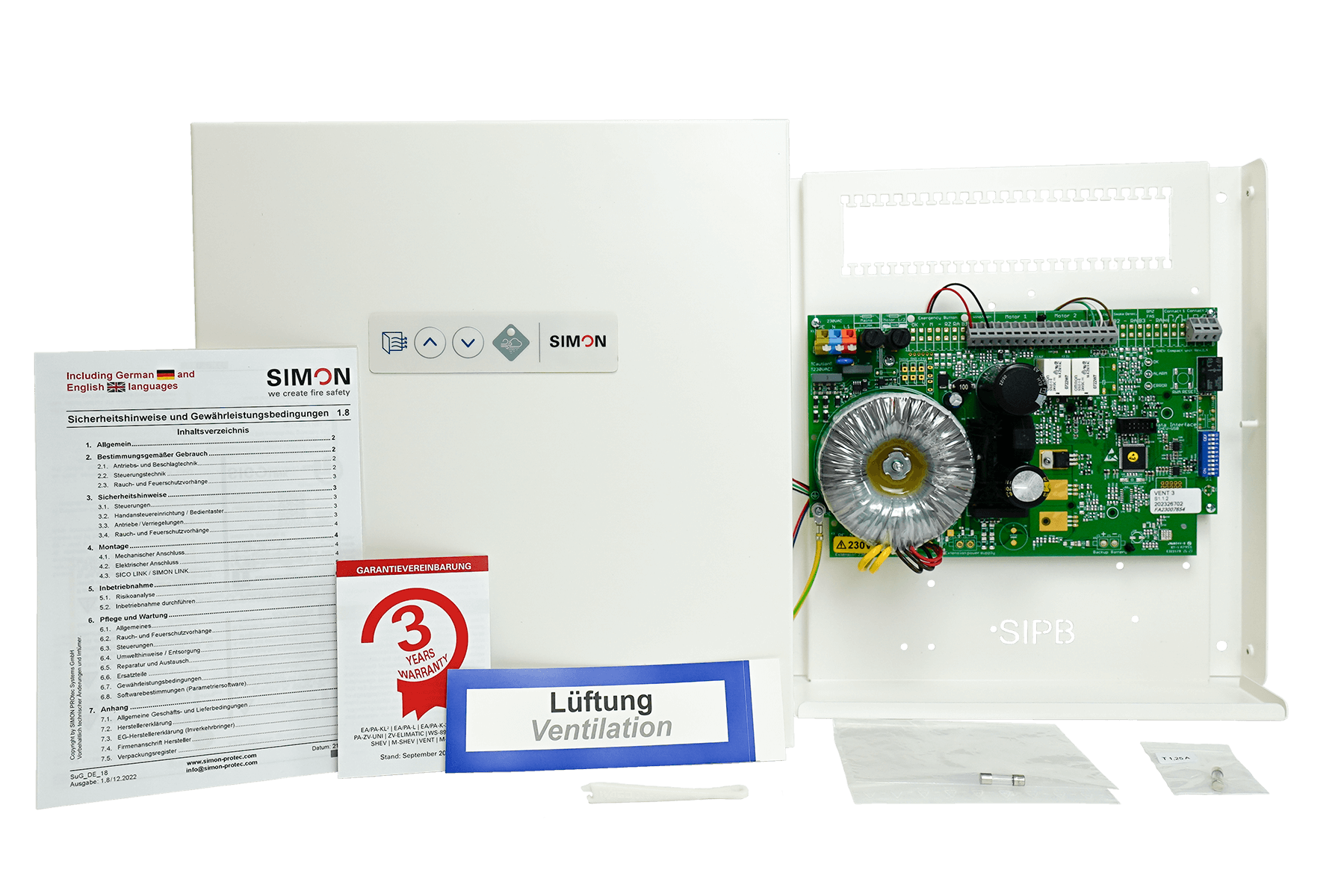

VENT-3 with accessories
SimonLink diagnostic software

    Part numberST4 4030
    Input voltage230 V AC
    Output voltage24 V DC
    Output current3
    Ventilation groups1
Description Technische Daten Downloads
Description
Ventilation control panel VENT-3 230 V AC / 24 V DC / 3 A The electric ventilation control... more
Close menu
Product information "VENT-3 ventilation control unit"

Ventilation control panel VENT-3
230 V AC / 24 V DC / 3 A

The electric ventilation control VENT-3 is a compact unit in a metal housing with membrane keypad OPEN/CLOSE. It contains the power supply and the entire control and regulation electronics for operating 24 V DC actuators. The VENT-3 controls the connected actuators for daily aeration and ventilation.

Technical data:
Input voltage: 230 V AC
Output voltage: 24 V DC
Output current: 3 A
Monitoring: continuous and short-term operation
Protection class:: IP20
Temperature range: -5°C - +40°C
Ventilation groups: 1
Housing: sheet steel case, coated
Color: RAL 9010
Dimensions (WxHxD): 301 x 323 x 85 mm
Weight: 4.10 kg

Manufacturer:
SIMON PROtec Systems GmbH
Typ: Ventilation control panel VENT-3
Article number: ST4 4030

Related links to "VENT-3 ventilation control unit"
Downloads
Matchcode VENT-3 Article name VENT-3 Lüftungssteuerung Part number ST4 4030... more
Zurück
MatchcodeVENT-3
Article nameVENT-3 Lüftungssteuerung
Part numberST4 4030
Input voltage230 V AC
Output voltage24 V DC
Output current3
IP codeIP20
Switch on duration30
Ventilation groups1
Weight4.10
HousingStahlblechgehäuse
Housing typeSteel case
ColourRAL 9010
Housing width301
Housing height323
Housing depth85
Appliance classI
Environment temperature range-5°C - +40°C
Technische Daten
Product Information... more
Zurück

Product Information

Brochure compact control unit VENT 3-6 Brochure compact control unit VENT 3-6
Brochure Control brochure VENT 3-6 Brochure Control brochure VENT 3-6
Brochure Control Panels Brochure Control Panels
Catalogue (web) Smoke & Daily Vent Catalogue (web) Smoke & Daily Vent

User Manuals

Operating manual VENT 3-6 Operating manual for compact control unit VENT 3-6

Certificates

Certificate VENT-3 & VENT-6 Declaration of conformity for the ventilation control units VENT-3 und VENT-6
Certifictate UKCA_VENT-3-6-61 Declaration of conformity for daily vent control panel VENT-3, VENT-6, VENT-61
Environmental Product Declaration (EPD) Environmental Product Declaration (EPD)

Other

Safety instructions and warranty conditions Safety instructions and warranty conditions
