Smoke-extraction flap SHEV Flap-L
SHEV-FLAP smoke extraction device, size L
with iSHEV- linear actuator with integrated electronic load cut-off

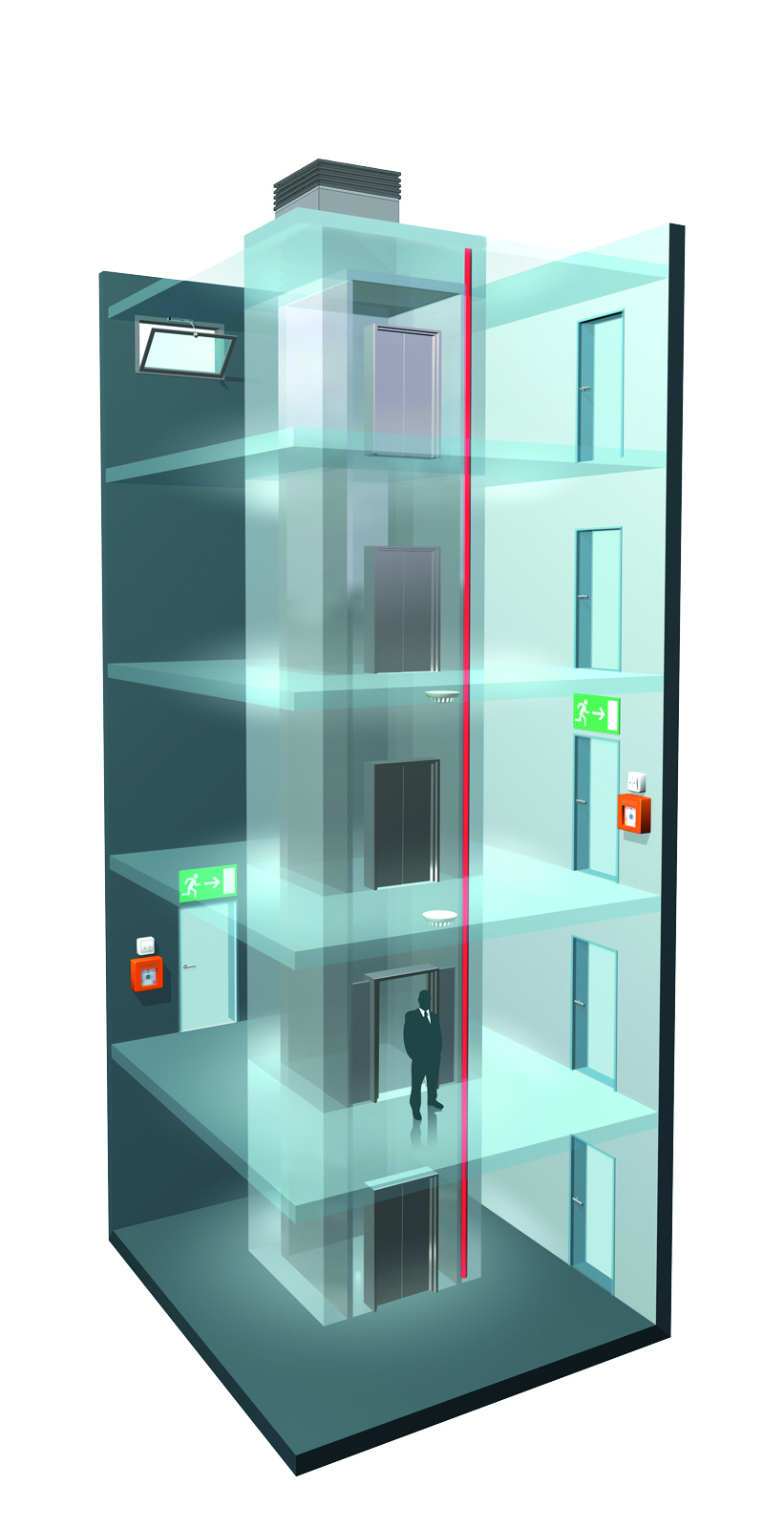

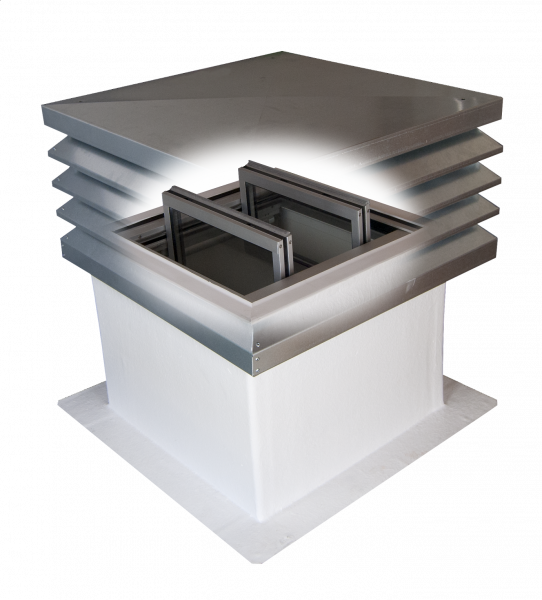

The smoke extraction element SHEV-FLAP is the ideal closure for openings in flat roofs. These are especially openings above elevator shafts, which are intended for natural ventilation and smoke extraction. It can also be used as a relief opening for pressure ventilation systems in stairwells. The SHEV-FLAP consists of a straight, 50 cm high thermally insulated upstand and an integrated, tested NRWG lamella element with attached weather protection lamella hood. During construction, special attention was paid to a clean thermal separation in terms of building physics. The element is available in various standard sizes as well as made to measure. This solution provides a weather-protected opening, which ensures smoke extraction independent of wind direction.
Technical data:
Operating voltage: 24 V DC /±15%
rated current: 1 A
Duty cycle: 30% (ON: 3 min / OFF: 7 min)
Push force: 1000 N
Pulling force: 1000 N
stroke length: 48 mm
Temperature range: -5°C to + 40°C
Inside curb dimensions: 815 mm x 815 mm
Geometric cross section: 0.35 m2
Low snow load stabilty of the crowning - SL 10
No overhead glazing. Version with laminated safety glass (LSG) on request
Manufacturer:
SIMON PROtec Systems GmbH
Type: SHEV-FLAP-L
Item number: M2 1792
- Do you have any questions concerning this product?
- Sicherheitshinweise & Gewährleistungsbedingungen
- Produktinformation EA-LS-1000-48-02
- Product information EA-LS-1000-48-02
- Katalog (Web) RWA & Lüftung
- Catalogue (web) Smoke & Daily Vent
- Environmental Product Declaration (EPD)
- Safety instructions and warranty conditions
- Broschüre Fensterautomation
- Brochure Window Automation
- Umweltproduktdeklaration (EPD)
- Further products by SIMON PROtec
Matchcode | SHEV Flap-L |
Article name | Entrauchungselement SHEV Flap-L |
Part number | M2 1792 |
Input voltage | 24 V DC |
Weight | 95 |
Housing length | 1010 |
Housing width | 1010 |
Housing height | 830 |
Inner width | 815 |
Inner depth | 815 |
Environment temperature range | -5 °C - 40 °C |
