Compact control unit SHEV 2 ECO
| Part number | ST4 3168 |
| Input voltage | 230 V AC |
| Output voltage | 24 V DC |
| Output current | 2.0 |
| SHE Groups | 1 |
| Ventilation groups | 1 |
Compact control panel SHEV-2-ECO
230 V AC / 24 V DC / 2 A

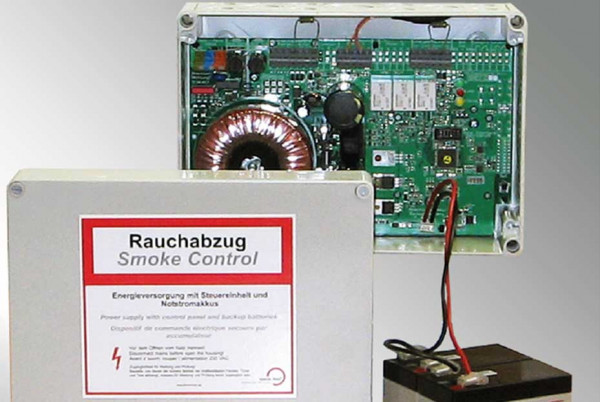

The electrical control panel SHEV 2 ECO is a compact device in a plastic housing. It contains power supply, emergency power supply and the entire control and regulation electronics for operating 24 V DC actuators for windows and smoke exhaust flaps. The SHEV 2 ECO is a compact central control panel for smoke exhaust. It is housed as a compact assembly group in a single board system in a surface-mounted housing. The SHEV 2 ECO is primarily used to equip smoke exhaust systems in stairwells.
Technical data:
Input voltage: 230 V AC
Output voltage: 24 V DC
Output current: 2 A
Monitoring: continuous and short-term operation
Protection class:: IP66
Temperature range: -5°C - +40°C
SHEV groups: 1
Ventilation groups: 1
Housing: Plastic housing, surface-mounted
Color: Grey (similar RAL 7035)
Dimensions (WxHxD): 254 x 180 x 111 mm
Weight: 3.42 kg
Manufacturer:
SIMON PROtec Systems GmbH
Typ: Compact control panel SHEV 2 ECO
Article number: ST4 3168
| SHEV / VENT: | Natuaral ventilation, SHEV, SHEV & Natural ventilation |
| Output current (Ampere): | 2 A |
| Output voltage: | 24 V DC |
| Matchcode | SHEV 2 ECO |
| Article name | Kompaktzentrale SHEV 2 ECO |
| Part number | ST4 3168 |
| Input voltage | 230 V AC |
| Output voltage | 24 V DC |
| Output current | 2.0 |
| IP code | IP66 |
| Switch on duration | 30 |
| SHE Groups | 1 |
| Ventilation groups | 1 |
| Weight | 3.42 |
| Housing | Polystorol, halogenfrei, Aufputz |
| Housing type | Plastic |
| Colour | Grau, ähnl. RAL7035 |
| Housing width | 254 |
| Housing height | 180 |
| Housing depth | 111 |
| Environment temperature range | -5°C - +40°C |
