Modular control panel M-SHEV-24
| Part number | ST4 3447 |
| Input voltage | 230 V AC |
| Output voltage | 24 V DC |
| Output current | 24 |
Modular control panel M-SHEV-24
230 V AC / 24 V DC / 24 A

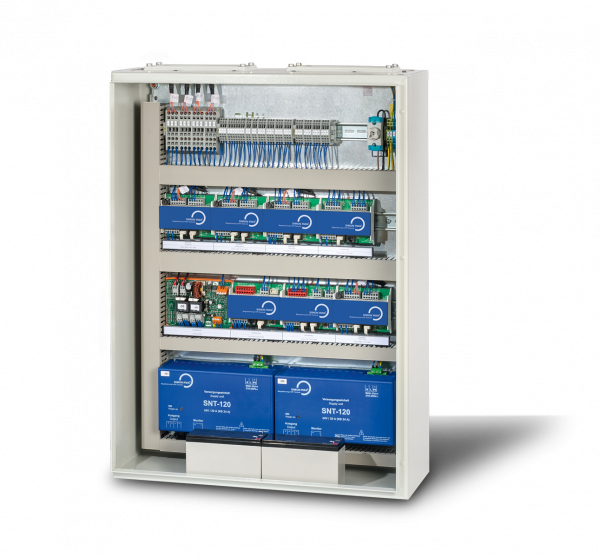

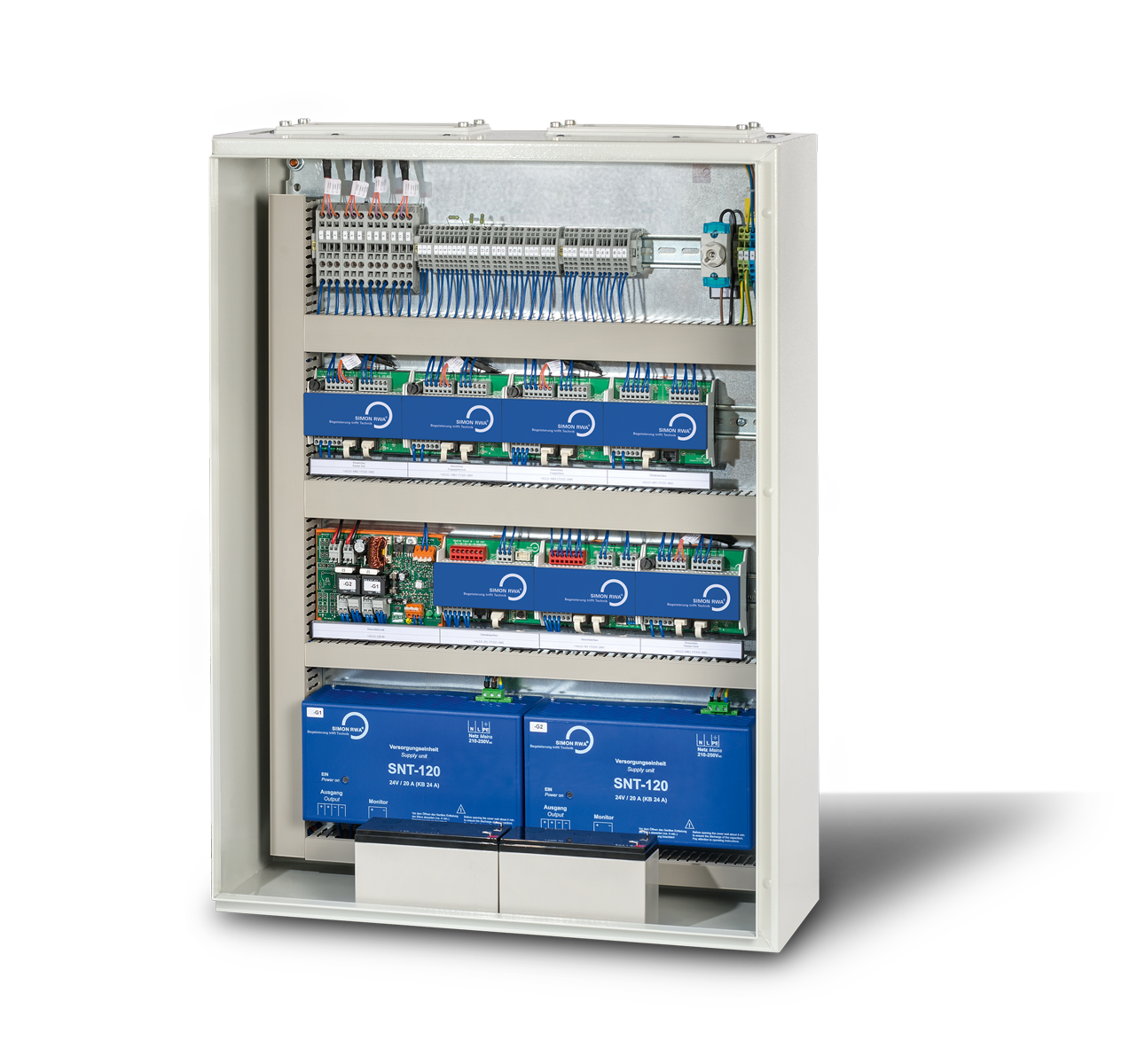

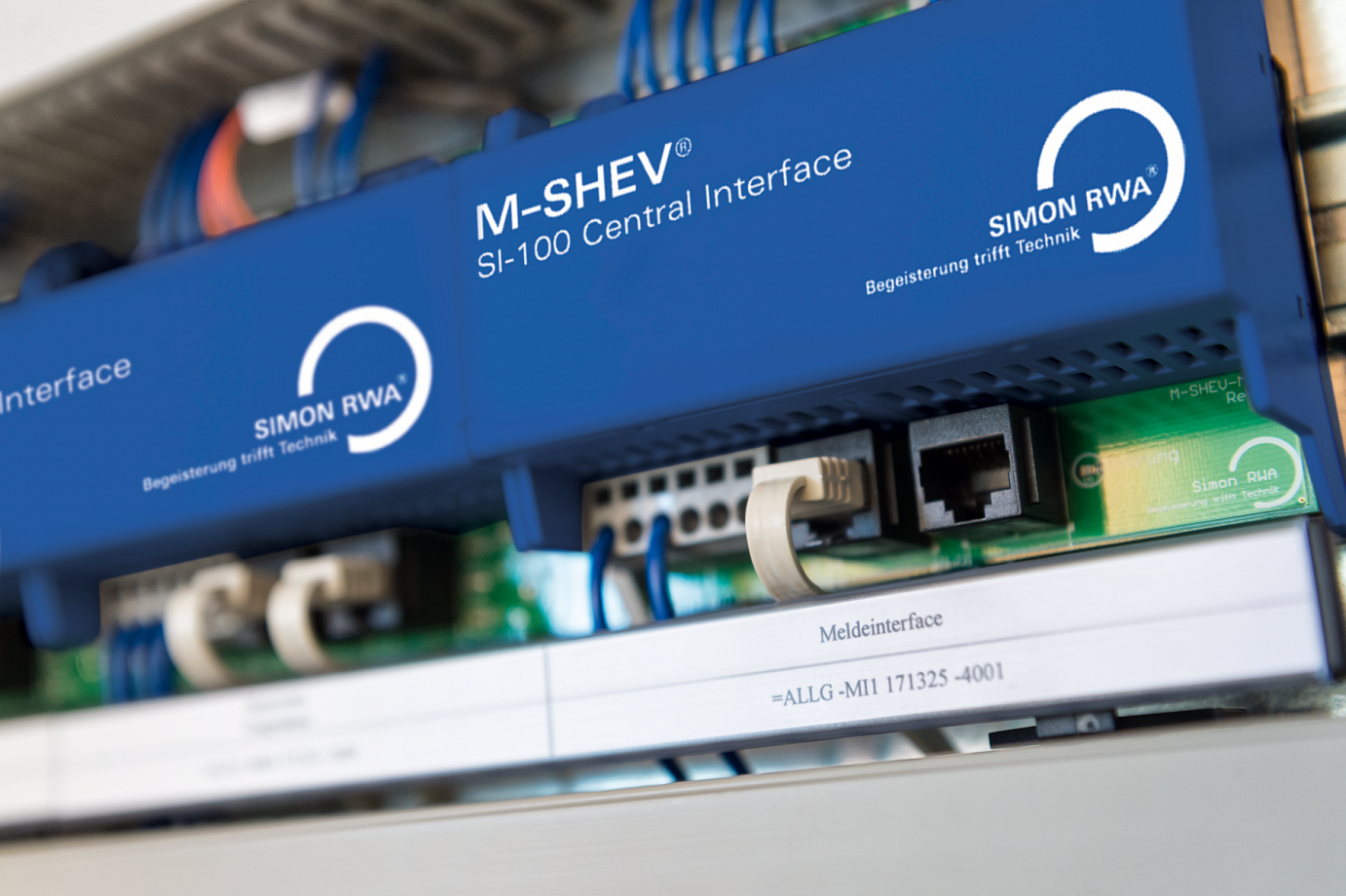

The M-SHEV (Modular Smoke and Heat Exhaust Ventilation) modular control panel is an electrical control device in a sheet steel housing with power supply, emergency power supply and all control and regulation electronics for operating 24 V DC actuators for building openings, e.g. windows and smoke exhaust flaps. The M-SHEV modular control panel controls actuators both in case of fire and for daily ventilation. In the event of a power failure, the emergency power supply ensures the function of the SHEV system for at least 72 hours. The M-SHEV modular control panel provides all necessary connections for release devices (push buttons, smoke detector, fire alarm system). In addition, various components can be connected for daily ventilation applications, e.g. wind/rain detectors and vent buttons. The ventilation function is at the same time a daily function check of the SHEV system. The M-SHEV modular control panel is CE certified according to EN 12101-10.
Technical data:
Input voltage: 230 V AC
Output voltage: 24 V DC
Output current: 24 A
Monitoring: continuous and short-term operation
Protection class: IP66
Temperature range: -5°C - +40°C

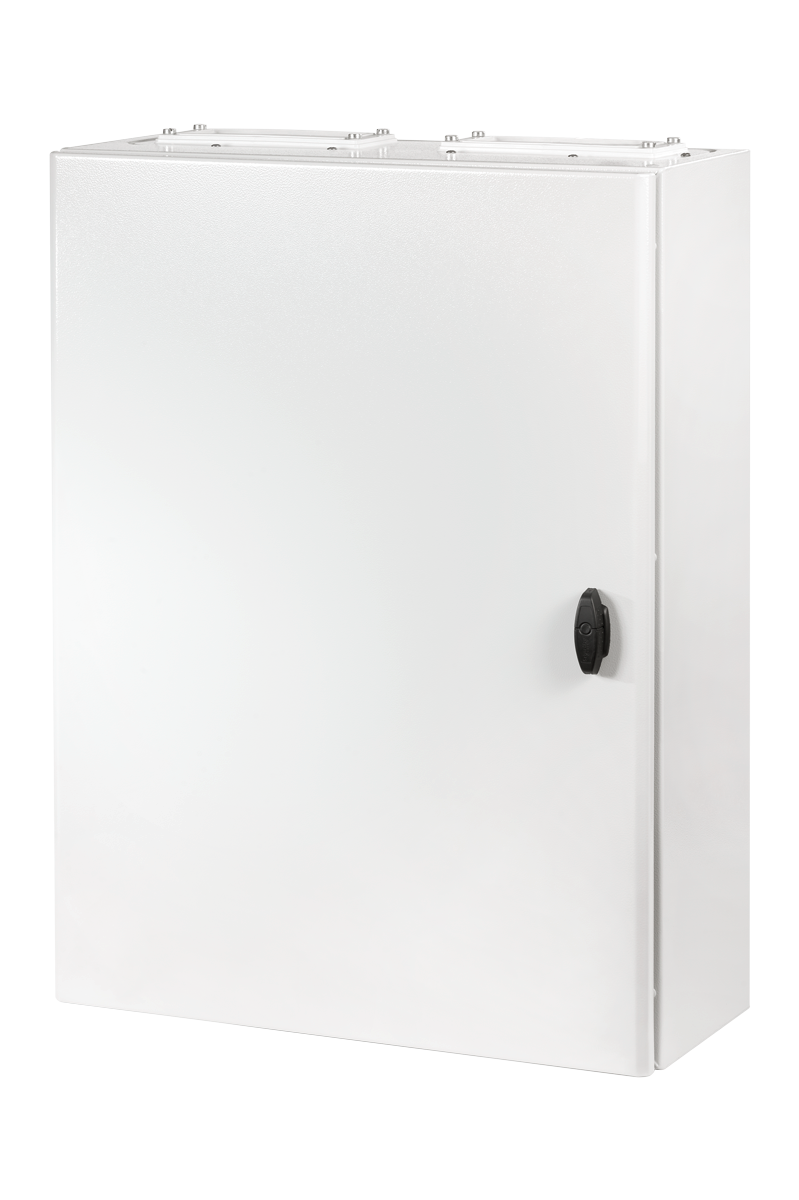

Housing: Sheet steel case
Color: RAL 7035
Dimensions (WxHxD): 500 x 500 x 200 mm
Manufacturer:
SIMON PROtec Systems GmbH
Typ: Modular control panel M-SHEV-24
Article number: ST4 3447
| Matchcode | M-SHEV-24 |
| Article name | Modulzentrale M-SHEV-24 |
| Part number | ST4 3447 |
| Input voltage | 230 V AC |
| Output voltage | 24 V DC |
| Output current | 24 |
| Classification | CE zertifiziert DIN EN 12101-10, geprüft ISO 21927-9 |
| LED signs | LED-Anzeige Betriebszustand Netz: Daueranzeige grün - Netz vorhanden LED-Anzeige Betriebszustand Bleiakku („O.K.“): Daueranzeige grün - Akku vorhanden und wird geladen (Ladung wird erhalten) |
| IP code | IP66 |
| Housing | Stahlblechgehäuse |
| Housing type | Steel case |
| Colour | RAL 7035 (lichtgrau) |
| Housing width | 500 |
| Housing height | 500 |
| Housing depth | 200 |
| Appliance class | I |
| Environment temperature range | -5°C - +40°C |
Product Information
 Brochure Control Panels | Brochure Control Panels |
| Brochure M-SHEV control units | Brochure for the modular control panel M-SHEV |
| Brochure M-SHEV_EN | Brochure for the modular control panel M-SHEV (English) |
| Catalogue (web) Smoke & Daily Vent | Catalogue (web) Smoke & Daily Vent |
User Manuals
| Operating manual M-SHEV | Operating manual for the M-SHEV product family |
Certificates
| CE-Certificate M-SHEV | Declaration of conformity for the modular control panels M-SHEV-10, M-SHEV-10-AP, M-SHEV-12, M-SHEV-12-AP, M-SHEV-12-AP-ECO, M-SHEV-24-AP-ECO, M-SHEV-24, M-SHEV-48, M-SHEV-XX (cascadable power supply EV-24 / 48 A) |
| Certifictate UKCA_M-SHEV | Declaration of conformity for smoke control panel M-SHEV |
| Declaration of performance for the power supply of the M-SHEV | Declaration of performance for the power supply of the M-SHEV (EV-12 / EV-24 / EV-48) |
| Declaration of performance for the power supply of the M-SHEV (UKCA) | UKCA declaration of performance for the power supply of the M-SHEV (EV-12 / EV-24 / EV-48) |
| Environmental Product Declaration (EPD) | Environmental Product Declaration (EPD) |
Other
| Safety instructions and warranty conditions | Safety instructions and warranty conditions |
Videos
 M-SHEV module replacement | Tutorial for replacement or extension of a module in a M-SHEV control panel |
