Message interface MI-100

Preview: MI-100 Module M-SHEV Preview: SimonLink diagnostic software

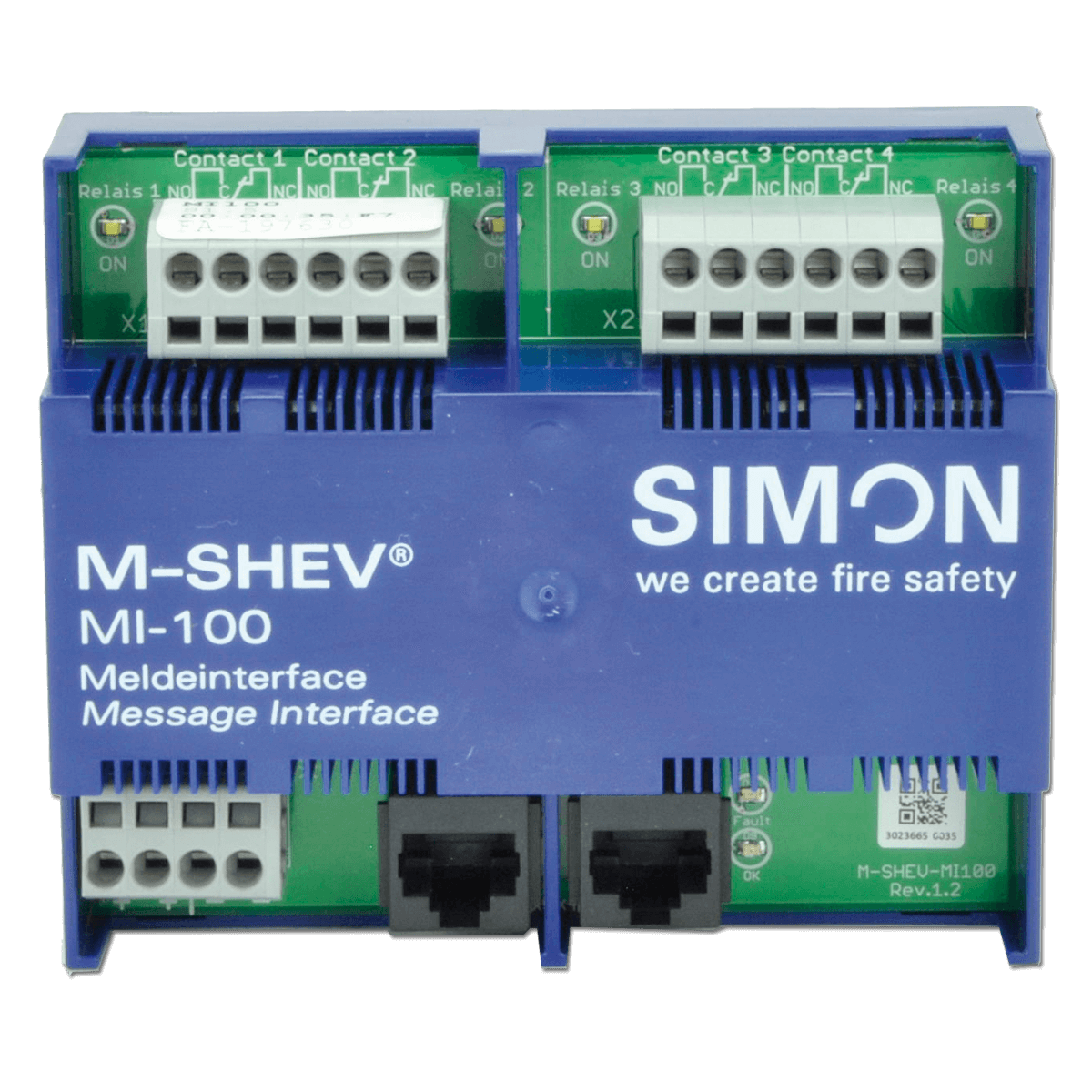

MI-100 Module M-SHEV
SimonLink diagnostic software

    Part numberST4 3382
    Input voltage24 V DC
    Output voltage24 V DC
Description Technische Daten Downloads
Description
MI-100 Message interface Provides four freely programmable, potential-free changeover... more
Close menu
Product information "Message interface MI-100"

MI-100 Message interface

Provides four freely programmable, potential-free changeover contacts NO / NC. Switching capacity 30 V DC, switching current max. 6 A. Switching operations can be set via SimonLink software for defined states in direct form or via matrix switching. All states of the individual base modules and the charging circuit can be called up. MI-100 modules are independent of the number and assignment of SHEV and ventilation groups.

Manufacturer:
SIMON PROtec Systems GmbH
Type: MI-100 Message interface
Article number: ST4 3382

Related links to "Message interface MI-100"
Downloads
Matchcode MI-100 Article name Meldeinterface MI-100 Part number ST4 3382 Input... more
Zurück
MatchcodeMI-100
Article nameMeldeinterface MI-100
Part numberST4 3382
Input voltage24 V DC
Output voltage24 V DC
LED signsLEDs auf Ladekarte: 1. Grüne LED “AKKU” = OK (Akku ist vorhanden und wird geladen) 2. Grüne LED “NETZ” = Netzbetrieb weitere LEDs auf den Modulen
IP codeIP54
Weight0.248
Housing typePlastic
ColourBlau
Appliance classI
Environment temperature range-5 °C - 40 °C
Technische Daten
Product Information... more
Zurück

Product Information

Brochure Control Panels Brochure Control Panels
Brochure M-SHEV control units Brochure for the modular control panel M-SHEV
Brochure M-SHEV_EN Brochure for the modular control panel M-SHEV (English)
Catalogue (web) Smoke & Daily Vent Catalogue (web) Smoke & Daily Vent

Certificates

CE-Certificate M-SHEV Declaration of conformity for the modular control panels M-SHEV-10, M-SHEV-10-AP, M-SHEV-12, M-SHEV-12-AP, M-SHEV-12-AP-ECO, M-SHEV-24-AP-ECO, M-SHEV-24, M-SHEV-48, M-SHEV-XX (cascadable power supply EV-24 / 48 A)
Environmental Product Declaration (EPD) Environmental Product Declaration (EPD)
