Central interface ZI-100

Preview: ZI-100 Module M-SHEV Preview: SimonLink diagnostic software Preview: ZI-100 Module M-VENT
ZI-100 Module M-SHEV
SimonLink diagnostic software

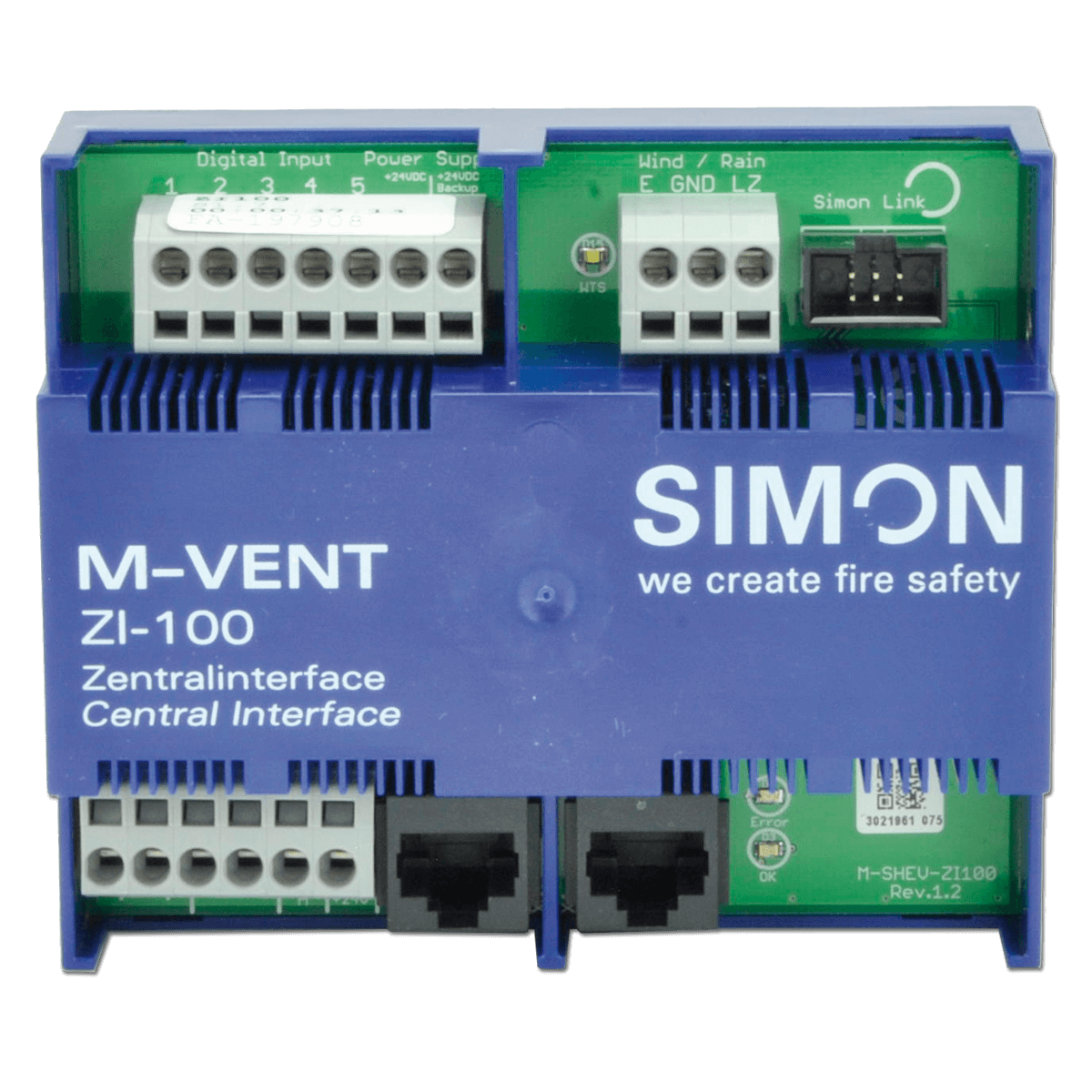

ZI-100 Module M-VENT

    Part numberST4 3380
    Input voltage230 V AC
    Output voltage24 V DC
Description Technische Daten Downloads
Description
Central interface ZI-100 Basic module for digital SHEV control M-SHEV. Initiates the... more
Close menu
Product information "Central interface ZI-100"

Central interface ZI-100

Basic module for digital SHEV control M-SHEV. Initiates the internal BUS for communication of all modules. Provides connection of central functions such as five digital inputs (freely adjustable), connection wind-rain detector or external weather station via relay, central reset button, Simon-Link connector and fault indicators. One module per central unit necessary.

Manufacturer:
SIMON PROtec Systems GmbH
Type: Central interface ZI-100
Article number: ST4 3380

Related links to "Central interface ZI-100"
Downloads
Matchcode ZI-100 Article name Zentralinterface ZI-100 Part number ST4 3380... more
Zurück
MatchcodeZI-100
Article nameZentralinterface ZI-100
Part numberST4 3380
Input voltage230 V AC
Output voltage24 V DC
LED signsLEDs auf Ladekarte: 1. Grüne LED “AKKU” = OK (Akku ist vorhanden und wird geladen) 2. Grüne LED “NETZ” = Netzbetrieb weitere LEDs auf den Modulen
IP codeIP54
Weight0.264
Housingverschiedene Gehäusegrößen
Housing typeSteel case
ColourRAL7035
Appliance classI
Environment temperature range-5 °C - 40 °C
Technische Daten
Product Information... more
Zurück

Product Information

Brochure Control Panels Brochure Control Panels
Brochure M-SHEV control units Brochure for the modular control panel M-SHEV
Brochure M-SHEV_EN Brochure for the modular control panel M-SHEV (English)
Catalogue (web) Smoke & Daily Vent Catalogue (web) Smoke & Daily Vent

Certificates

CE-Certificate M-SHEV Declaration of conformity for the modular control panels M-SHEV-10, M-SHEV-10-AP, M-SHEV-12, M-SHEV-12-AP, M-SHEV-12-AP-ECO, M-SHEV-24-AP-ECO, M-SHEV-24, M-SHEV-48, M-SHEV-XX (cascadable power supply EV-24 / 48 A)
Environmental Product Declaration (EPD) Environmental Product Declaration (EPD)
