SP-300-IP
| Part number | ST4 3252 |
| Input voltage | 230 V AC |
| Output voltage | 24 V DC |
| Output current | 3 |
| SHE Groups | 1 |
| Ventilation groups | 1 |

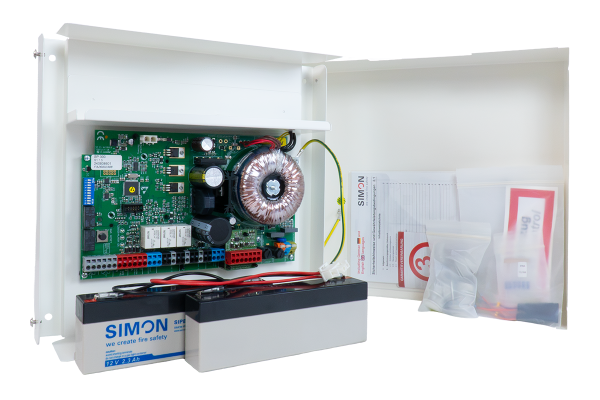

Compact control panel SP-300-IP
230 V AC / 24 V DC / 3 A
The Shaft Panel SP-300-IP is a compact control panel in the SHEV area. Smoke is extracted through a shaft in the building, which runs vertically through all floors. A shaft system consists of one HSP (Head of Shaft Panel) with a smoke exhaust flap at the end of the shaft and one SP (Shaft Panel) on each floor, which in turn controls a smoke exhaust flap. The system can be supplemented by a staircase control (Stair Panel). The installation of the compact control unit is surface-mounted.
Technical data:
Input voltage: 230 V AC
Output voltage: 24 V DC
Output current: 3 A
Monitoring: continuous and short-term operation
Protection class:: IP54
Temperature range: -5°C - +40°C
SHEV groups: 1
Ventilation groups: 1
Housing: sheet steel housing, surface-mounted
Color: coated RAL 9010
Dimensions (WxHxD): 325 x 305 x 89 mm
Weight: 6,80 kg
Manufacturer:
SIMON PROtec Systems GmbH | Medienstraße 8 | D-94036 Passau
Typ: Compact control panel SP-300-IP
Article number: ST4 3252
WEEE Reg. No.: DE 97535049
| Matchcode | SP-300-IP |
| Article name | SP-300-IP |
| Part number | ST4 3252 |
| Input voltage | 230 V AC |
| Output voltage | 24 V DC |
| Output current | 3 |
| IP code | IP54 |
| Switch on duration | 30 |
| SHE Groups | 1 |
| Ventilation groups | 1 |
| Housing | Stahlblechgehäuse, Aufputz |
| Housing type | Steel case |
| Colour | RAL 9010 |
| Housing width | 325 |
| Housing height | 305 |
| Housing depth | 89 |
| Environment temperature range | -5 °C - 40 °C |
