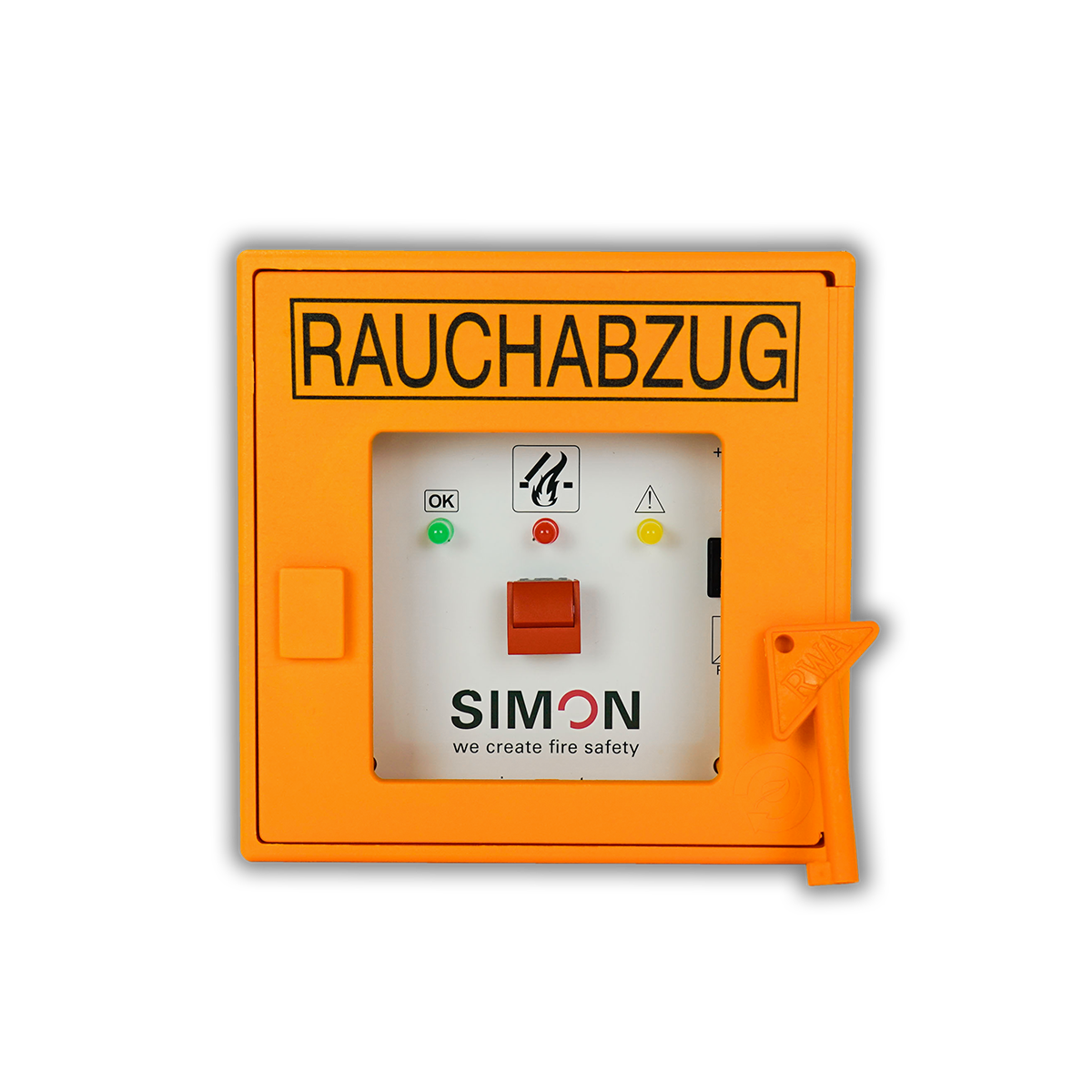

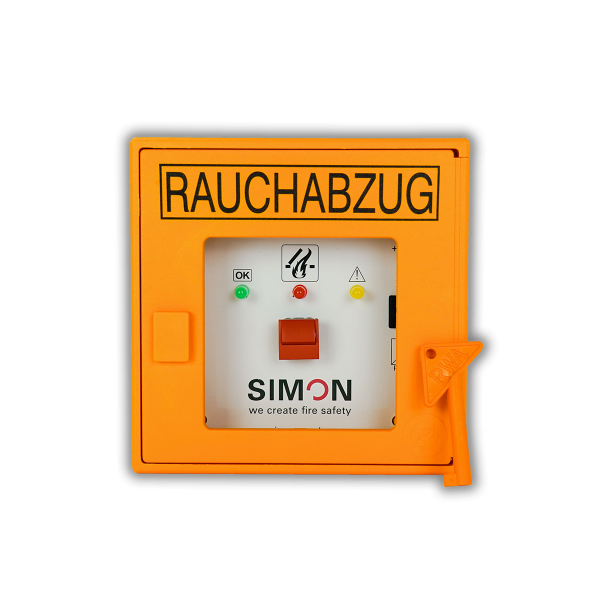

Main SHEV button HE-083-ORANGE-BIO

    Part numberA3 3160
    Input voltage24 V DC
    LED signsRot = Auslösung (RWA AUF)
    Gelb = Störung
    Grün = Betriebsbereit
Electrical manual emergency override switch HE-083 organge BioBased The electric SHEV... more
Product information "Main SHEV button HE-083-ORANGE-BIO"

Electrical manual emergency override switch HE-083 organge BioBased

The electric SHEV emergency switch HE-083 Orange is used in smoke and heat extraction sysems, type SP-300 / SP-600 / M-SHEV (witch SP-100). In the case of fire it can be used to activate the electrical control system and start the smoke funnel by hand. Additionally, it shows the condition of the control system. The sustainable housing is made of biobase (up to 78 %) materials.

Technical data:
Main sit switch with buzzer and LED signals for alarm, OK and fault. Triggering for alarm and reset.
Protection class: IP 40
Temperature range: -5°C - +75°C
Housing: shock-resistant housing made from BIOBASED materials witch frangible element (break glass plane) and key
Color: orange
Dimensions: 125 mm x 125 mm x 36 mm
Weight: 0,2 kg

Manufacturer:
SIMON PROtec Systems GmbH
Typ: Electrical manual emergency override switch HE-083 bio in orange
Article number: A3 3160

Related links to "Main SHEV button HE-083-ORANGE-BIO"
Matchcode HE-083-ORANGE-BIO Article name Haupt- und Nebenbedienstelle HE-083-ORANGE-BIO... more
MatchcodeHE-083-ORANGE-BIO
Article nameHaupt- und Nebenbedienstelle HE-083-ORANGE-BIO
Part numberA3 3160
Input voltage24 V DC
LED signsRot = Auslösung (RWA AUF) Gelb = Störung Grün = Betriebsbereit
IP codeIP40
Weight0.2
Housingnachhaltiges Kunststoffgehäuse (BioBased)
Housing typeBiobased
ColourRAL 2011
Housing width125
Housing height125
Housing depth36
Nominal working temperature20
Environment temperature range-5 °C - 75 °C
