Folding Arm² door opener PA-KL²-T-K-50

    Part numberM2 2023
    Input voltage24 V DC
    Nominal current1.3
    Opening angle122
    IP codeIP54
    Switch on duration30
Folding arm² door opener PA-KL²-T-K-50/122deg 24 V DC / 1.3 A / 500 N / 122°... more
Product information "Folding Arm² door opener PA-KL²-T-K-50"

Folding arm² door opener PA-KL²-T-K-50/122deg
24 V DC / 1.3 A / 500 N / 122° opening width
Single operation actuator

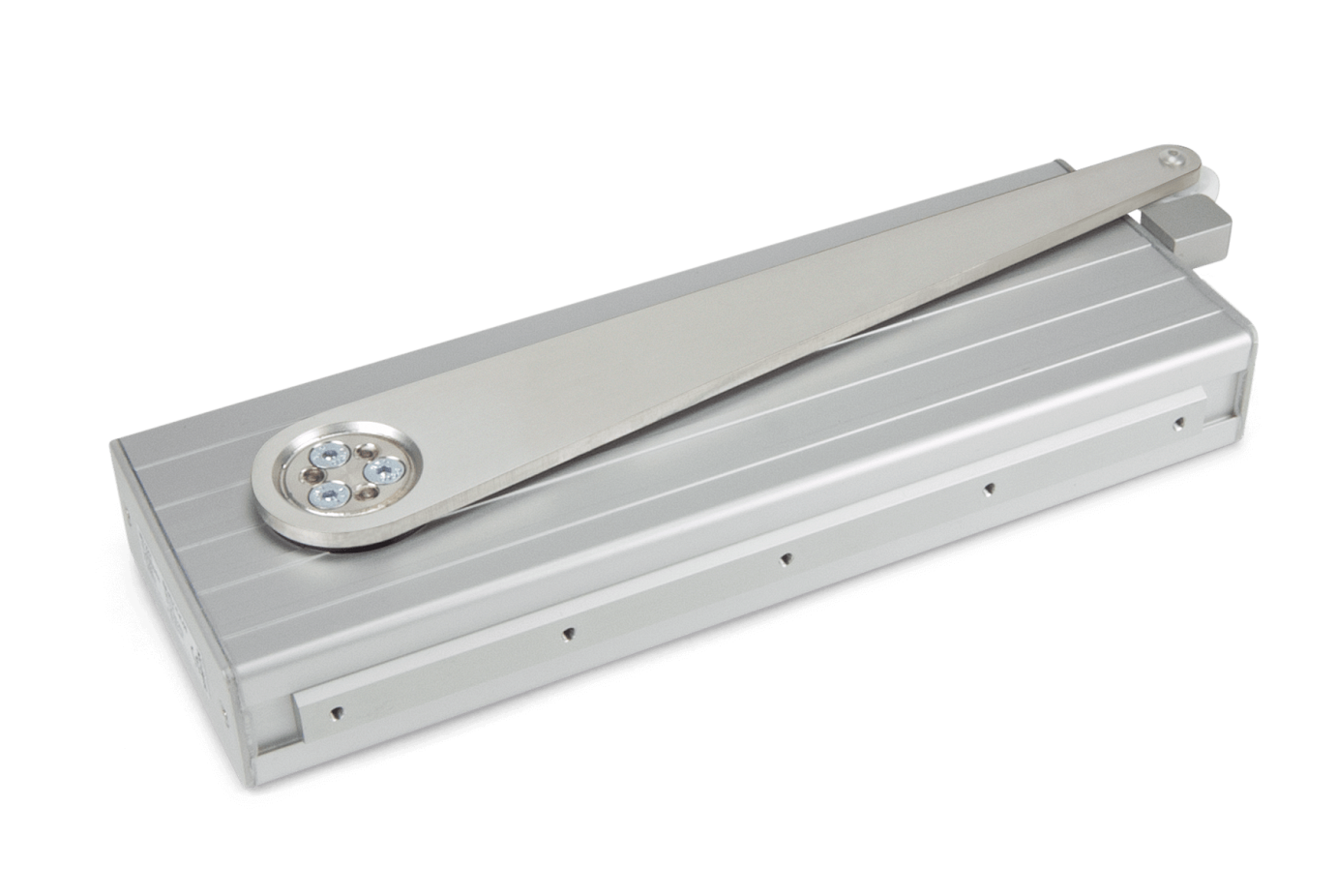

Folding Arm² PA-KL²-T Door opener as electromechanical actuator for opening doors for automated supply air for natural smoke extraction. Powerful actuator with 300 N push force via a lever arm with roller, which is not directly connected to the door leaf. Thus, there are no restrictions for manual door opening in normal operation and as an escape route. The supply air doors are to be designed self-closing with an upper door closer. Suitable for inward and outward opening doors, with bracket set (mounting bracket and mounting plate). With integrated, programmable SICO switch-off technology with microprocessor and SICO-PLUG connection plug. Work sequence control and start-up delay are freely adjustable. Connection for electric opener or motor lock available. Tested and certified for long-term performance according to DIN EN 12101-2.

Technical data:
Rated voltage: 24 V DC (- 15 % / + 15 %)
Ripple: max. 500 mV
Rated current: 1.3 A
Switch-on duration: 30 % ED S2 (ON: 3 min / OFF: 7 min)
Push force / nominal load in “OPEN”: 500 N
Nominal load in “CLOSE”: 50 N
Opening width: 122°
Running speed: 2 °/s
Opening time: within 60 seconds
Protection class: IP54 (IP65 on request)
Temperature range: 0°C to +75°C
Housing: Aluminium profile housing E6 / EV1 anodized
Lever: one-arm, stainless steel, with roller mechanism
Connection: SICO-PLUG (without connection cable / set)
Cut-off: Integrated overload cut-off with microprocessor
Volt-free contact (freely adjustable)
Dimensions (LxWxH): 382 x 58 x 118 mm
Weight: 3.70 kg

Options:
- Connecting cable/set
- Coating according to RAL or DB

Manufacturer:
SIMON PROtec Systems GmbH
Type: Folding arm² door opener PA-KL²-T-K-50/122deg
Article number: M2 2023

Related links to "Folding Arm² door opener PA-KL²-T-K-50"
Matchcode PA-KL²-T-K-50/122deg Article name Klapparm² Türöffner PA-KL²-T-K-50 Part... more
MatchcodePA-KL²-T-K-50/122deg
Article nameKlapparm² Türöffner PA-KL²-T-K-50
Part numberM2 2023
Input voltage24 V DC
Nominal current1.3
Input voltage range- 15 % / + 15 %
Ripple500
Opening angle122
Push force500
Pull force50
ClassificationDIN EN 12101-2, DIN EN 60335-1, DIN EN 60335-2-103
Cut-OffIntegrierte Lastabschaltung mit Mikroprozessor
Running speed2
IP codeIP54
Switch on duration30
Weight3.7
HousingAluminiumgehäuse E6 / EV1 eloxiert
Housing typeAluminium
ColourRAL & DB Farben
Housing length382
Housing width58
Housing height118
Appliance classIII
Connection cableSICO PLUG Anschluss. Exklusive Anschlussleitung / -set.
Nominal working temperature20
Environment temperature range0 °C - 75 °C
Brackets includedno
