Secondary SHEV button HE-081-ORANGE-BIO

Preview: HE-081 BioBased with closed housing Preview: HE-081 BioBased with opened housing

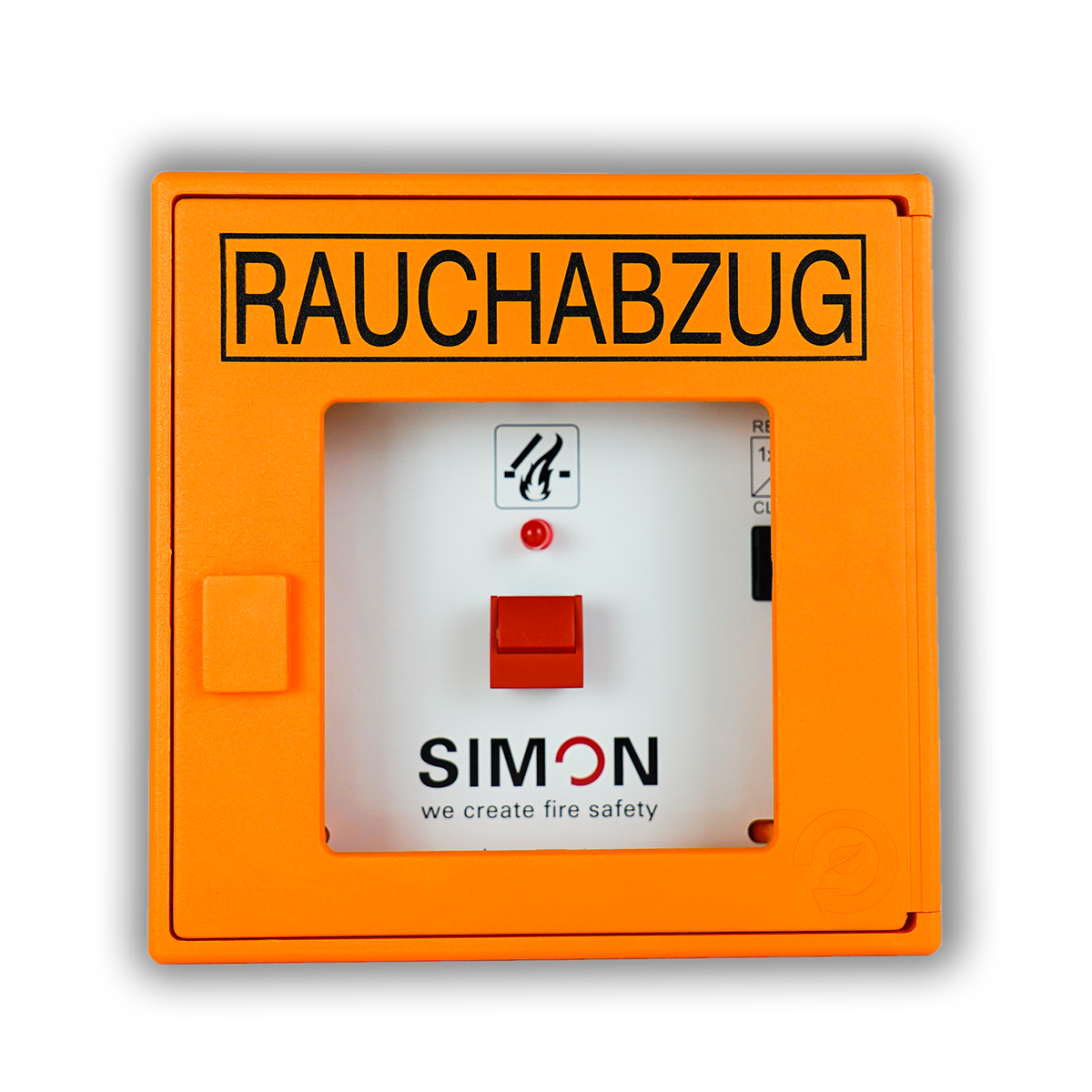

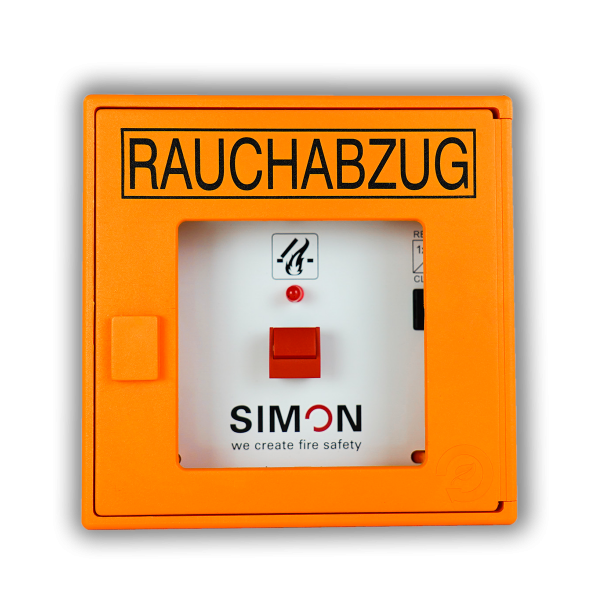

HE-081 BioBased with closed housing

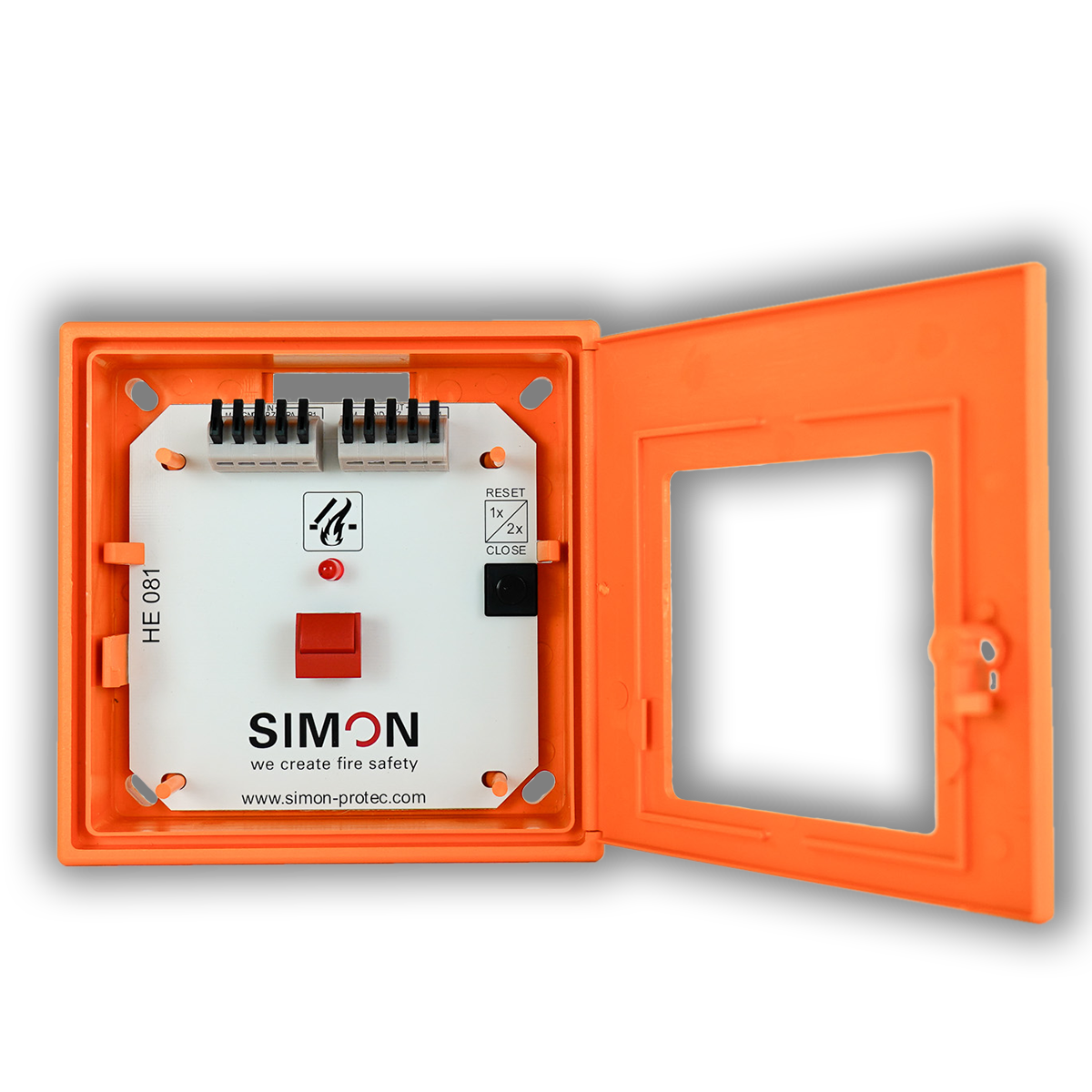

HE-081 BioBased with opened housing

    Part numberA3 3140
    Input voltage24 V DC
    LED signsRot = Auslösung (RWA AUF)
    Gelb = Störung
    Grün = Betriebsbereit
Description Technische Daten Downloads
Description
Electrical manual override switch- off site HE-081 BIOBASED in orange The electric SHEV... more
Close menu
Product information "Secondary SHEV button HE-081-ORANGE-BIO"

Electrical manual override switch- off site HE-081 BIOBASED in orange

The electric SHEV emergency switch  HE-081 as offsite switch in orange is used in smoke and heat extraction systems, type SHEV or M-SHEV. In the case of Fire it can be used to activate the electrical control system and start the smoke funnel by hand. Additionally, it shows the condition of the control system. The sustainable housing is made of biobase (up to 75 %) materials.

Technical data:
Offsite switch witch LED signal for Alarm. Triggering for alarm and reset.
Protection class: IP 40
Temperatur range: -5°C - +75°C
Housing: shock-resistant housing made from BIOBASED materials with frangible element (break glass plane) and key
Coler: orange
Dimension: 125 mm x 125 mm x 63 mm
Weight: 0,2 kg

Manufacturer:
SIMON PROtec Systems GmbH
Type: Elektical manual switch - offsite HE-081 Bio in orange
Article number: A3 3140

Related links to "Secondary SHEV button HE-081-ORANGE-BIO"
Downloads
Matchcode HE-081-ORANGE-BIO Article name Nebenbedienstelle HE-081-ORANGE-BIO Part... more
Zurück
MatchcodeHE-081-ORANGE-BIO
Article nameNebenbedienstelle HE-081-ORANGE-BIO
Part numberA3 3140
Input voltage24 V DC
LED signsRot = Auslösung (RWA AUF) Gelb = Störung Grün = Betriebsbereit
IP codeIP40
Weight0.2
HousingAufputz-Kunststoffgehäuse, optional im Unterputzgehäuse mit Drehtüre, Einschlagscheibe und Schlüssel
Housing typeBiobased
ColourOrange RAL 2011
Housing width125
Housing height125
Housing depth36
Appliance classIII
Nominal working temperature20
Environment temperature range-5 °C - 75 °C
Technische Daten
Product Information... more
Zurück

Product Information

Brochure Control Panels Brochure Control Panels
Brochure Emergency override switch Brochure about the emergency override switch HE-08x
Catalogue (web) Smoke & Daily Vent Catalogue (web) Smoke & Daily Vent

User Manuals

Brief instruction HE-08x Brief instruction for the alarm triggering devices HE080/081/082/086/087

Certificates

Certificate Declaration of conformity HE-0xx Declaration of conformity HE-0xx
Environmental Product Declaration (EPD) Environmental Product Declaration (EPD)

Other

Safety instructions and warranty conditions Safety instructions and warranty conditions
