VENT-6-IP ventilation
| Part number | ST4 4131 |
| Input voltage | 230 V AC |
| Output voltage | 24 V DC |
| Output current | 6 |
| Ventilation groups | 1 |
Ventilation control panel VENT-6-IP
230 V AC / 24 V DC / 6 A

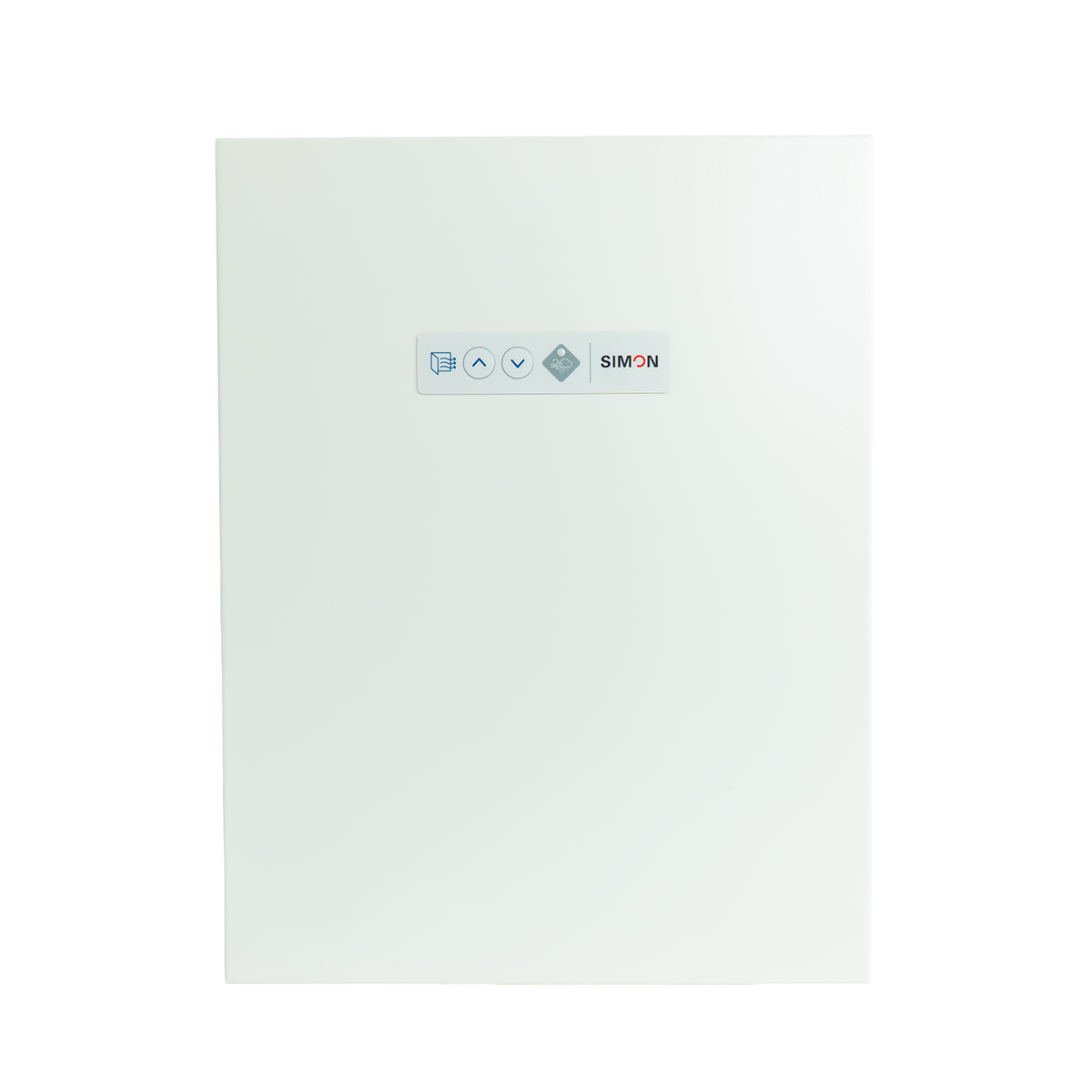

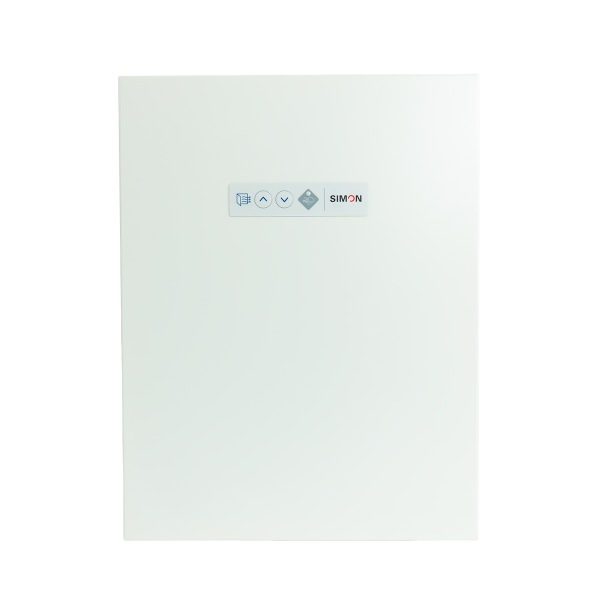

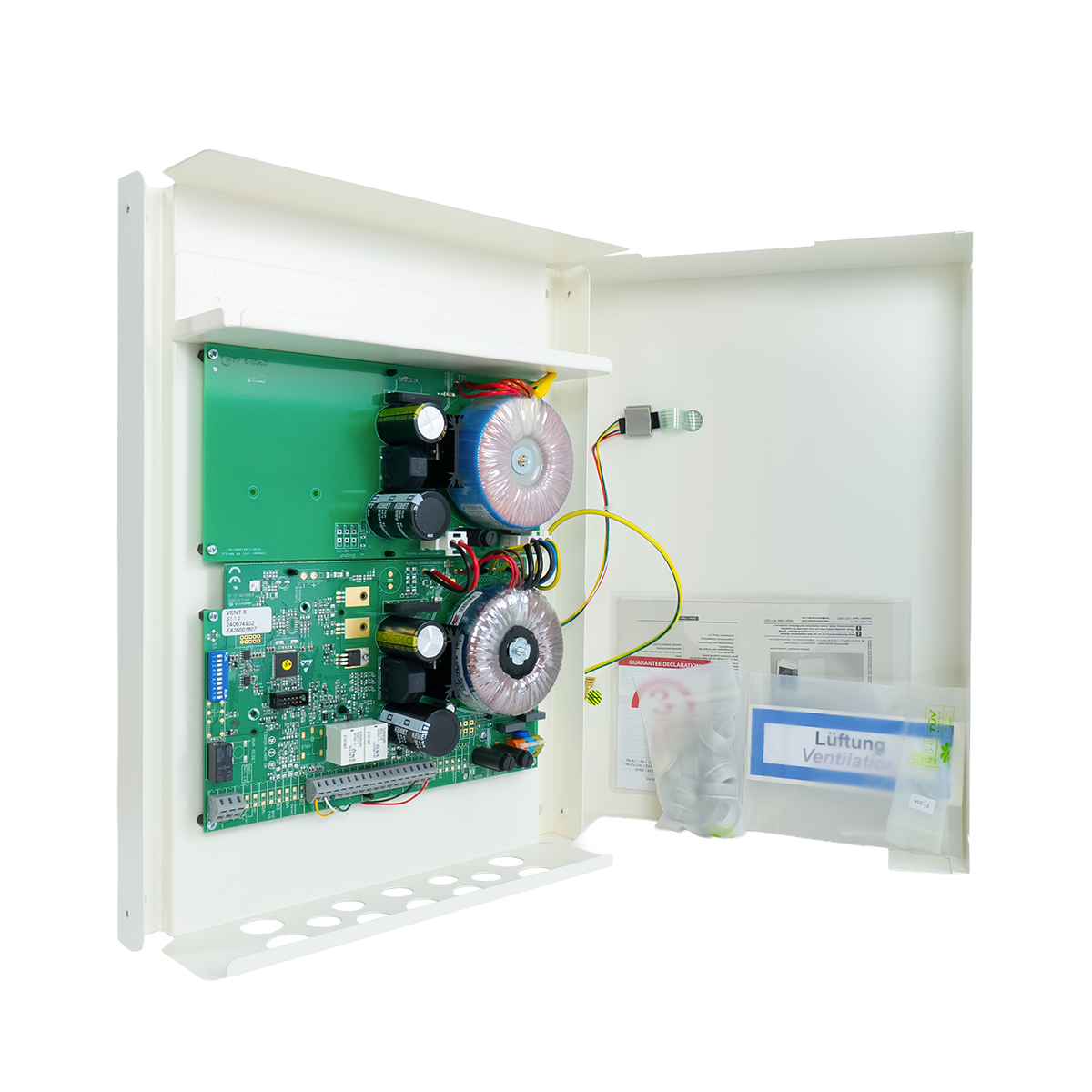

The electric ventilation control VENT-6-IP is a compact unit in a metal housing with membrane keypad OPEN/CLOSE. It contains the power supply and the entire control and regulation electronics for operating 24 V DC actuators. The VENT-6-IP controls the connected actuators for daily aeration and ventilation.
Technical data:
Input voltage: 230 V AC
Output voltage: 24 V DC
Output current: 6 A
Monitoring: continuous and short-term operation
Protection class:: IP54
Temperature range: -5°C - +40°C
Ventilation groups: 1
Housing: sheet steel case, coated
Color: RAL 9010
Dimensions (WxHxD): 325 x 423 x 89 mm
Weight: 7 kg
Manufacturer:
SIMON PROtec Systems GmbH | Medienstraße 8 | D-94036 Passau
Typ: Ventilation control panel VENT-6-IP
Article number: ST4 4131
WEEE Reg. No.: DE 97535049
| Matchcode | VENT-6-IP |
| Article name | VENT-6-IP Lüftungssteuerung |
| Part number | ST4 4131 |
| Input voltage | 230 V AC |
| Output voltage | 24 V DC |
| Output current | 6 |
| IP code | IP54 |
| Switch on duration | 30 |
| Ventilation groups | 1 |
| Housing | Stahlblechgehäuse |
| Housing type | Steel case |
| Colour | RAL 9010 |
| Housing width | 301 |
| Housing height | 444 |
| Housing depth | 85 |
| Appliance class | I |
| Environment temperature range | -5 °C - 40 °C |
