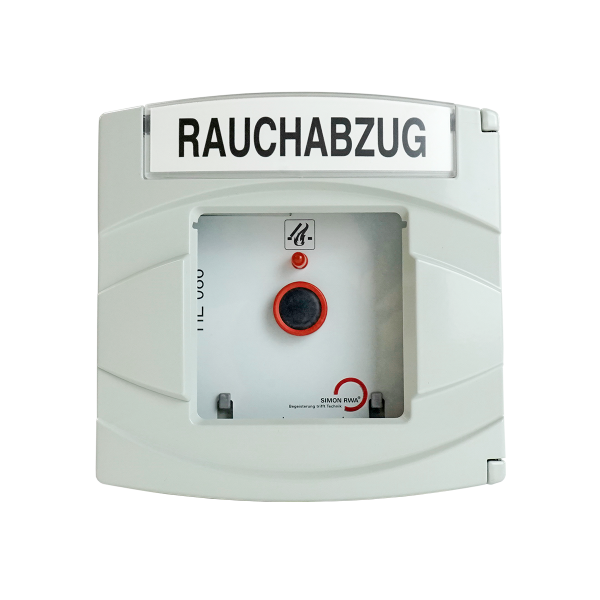

Secondary SHEV button type HE 086 Grey
| Part number | A3 2171 |
| Input voltage | 24 V DC |
| LED signs | Rot = Auslösung (RWA AUF) Gelb = Störung Grün = Betriebsbereit |
Electrical manual emergency override switch HE-086
The electrical manual push-button type... more
Product information "Secondary SHEV button type HE 086 Grey"
Electrical manual emergency override switch HE-086
The electrical manual push-button type HE 086 are used as auxiliary control unit in smoke and heat extraction systems, respectively for smoke and fire curtains, and serve for the manual triggering of a SHEV system in case of fire. It shows additionally the condition of the control system.
Technical data:
Rated voltage range: 17.5 V DC to 29 V DC
Protection class: IP 40
Temperature range: -5°C - +75°C
Housing: shock-resistant aluminum housing with frangible element (break glass plane) and key
Colors: orange, yellow, grey
Dimensions: 125 x 125 x 34 mm
Weight: 0,45 kg
Manufacturer:
SIMON PROtec Systems GmbH
Type: Electrical manual emergency override switch HE-086
Related links to "Secondary SHEV button type HE 086 Grey"
Matchcode HE 086 Grau Article name Nebenbedienstelle für RWA-Anlagen HE 086 Grau... more
| Matchcode | HE 086 Grau |
| Article name | Nebenbedienstelle für RWA-Anlagen HE 086 Grau |
| Part number | A3 2171 |
| Input voltage | 24 V DC |
| LED signs | Rot = Auslösung (RWA AUF) Gelb = Störung Grün = Betriebsbereit |
| IP code | IP40 |
| Weight | 0.45 |
| Housing | Aluminium Druckgussgehäuse |
| Housing type | Aluminium |
| Colour | RAL 7035 |
| Housing width | 125 |
| Housing height | 125 |
| Housing depth | 34 |
| Nominal working temperature | 20 |
| Environment temperature range | -5 °C - 75 °C |
Product Information... more
Product Information
 Brochure Control Panels | Brochure Control Panels |
| Brochure Emergency override switch | Brochure about the emergency override switch HE-08x |
| Catalogue (web) Smoke & Daily Vent | Catalogue (web) Smoke & Daily Vent |
User Manuals
| Brief instruction HE-08x | Brief instruction for the alarm triggering devices HE080/081/082/086/087 |
Certificates
| Certificate Declaration of conformity HE-0xx | Declaration of conformity HE-0xx |
| Environmental Product Declaration (EPD) | Environmental Product Declaration (EPD) |
Other
| Safety instructions and warranty conditions | Safety instructions and warranty conditions |
