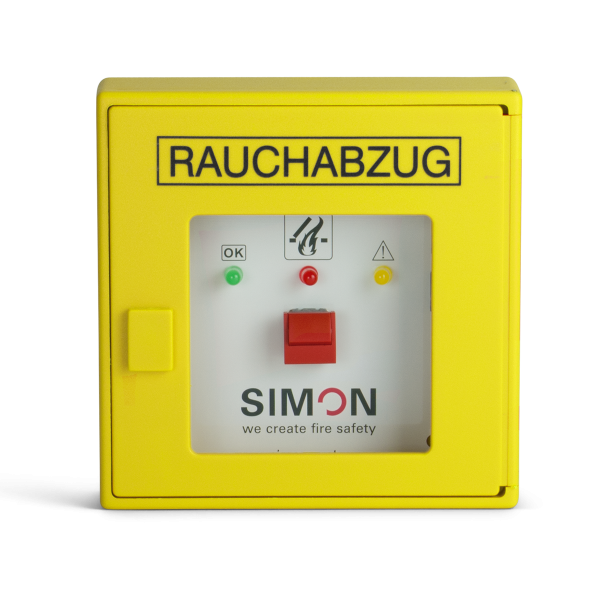

Main SHEV button type HE 082 Yellow

Preview: HE-080_082_083 yellow Preview: HE-082 yellow
HE-080_082_083 yellow
HE-082 yellow

    Part numberA3 2151
    Input voltage24 V DC
    LED signsRot = Auslösung (RWA AUF)
    Gelb = Störung
    Grün = Betriebsbereit
Description Technische Daten Downloads
Description
Electric SHEV emergency button, HE 082 yellow The HE 082 yellow is a main SHEV button of... more
Close menu
Product information "Main SHEV button type HE 082 Yellow"

Electric SHEV emergency button, HE 082 yellow

The HE 082 yellow is a main SHEV button of electrical line-monitored SHEV systems (SHEV 3, SHEV 6, ESM-T / X, - tested according to DIN EN 12101-9) with a replaceable board. The "UP" button and the "CLOSE" button (NO contact) are included.

There are three LED indicators for SHEV on the electric hand control HE 082 Yellow: triggered (red), ready for operation (green) and fault (yellow) - in accordance with VdS guideline 2592 and in the sense of the MBO.

The HE 082 yellow is available in the RAL color 1004 (according to VdS 2592) in a shock-resistant plastic housing (ABS) according to DIN 14655, EN 54, complete with a thin-glass pane and key as a unit.

Dimensions: 125 * 125 * 36 mm (H * W * D).

Related links to "Main SHEV button type HE 082 Yellow"
Downloads
Matchcode HE 082 Gelb Article name Hauptbedienstelle für RWA-Anlagen HE 082 Gelb... more
Zurück
MatchcodeHE 082 Gelb
Article nameHauptbedienstelle für RWA-Anlagen HE 082 Gelb
Part numberA3 2151
Input voltage24 V DC
LED signsRot = Auslösung (RWA AUF) Gelb = Störung Grün = Betriebsbereit
IP codeIP40
Weight0.2
HousingAufputz-Kunststoffgehäuse, optional im Unterputzgehäuse mit Drehtüre, Einschlagscheibe und Schlüssel
Housing typePlastic
ColourRAL 1004
Housing width125
Housing height125
Housing depth36
Appliance classIII
Nominal working temperature20
Environment temperature range-5 °C - 75 °C
Technische Daten
Product Information... more
Zurück

Product Information

Brochure Control Panels Brochure Control Panels
Brochure Emergency override switch Brochure about the emergency override switch HE-08x
Catalogue (web) Smoke & Daily Vent Catalogue (web) Smoke & Daily Vent

User Manuals

Brief instruction HE-08x Brief instruction for the alarm triggering devices HE080/081/082/086/087

Certificates

Certificate Declaration of conformity HE-0xx Declaration of conformity HE-0xx
Environmental Product Declaration (EPD) Environmental Product Declaration (EPD)

Other

Safety instructions and warranty conditions Safety instructions and warranty conditions
