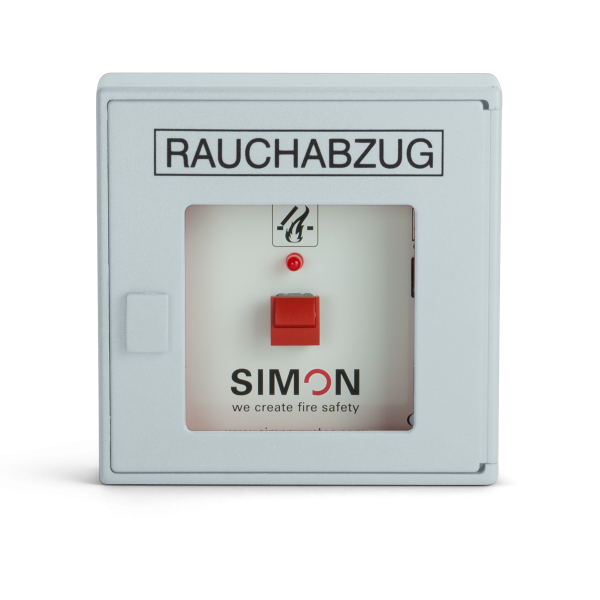

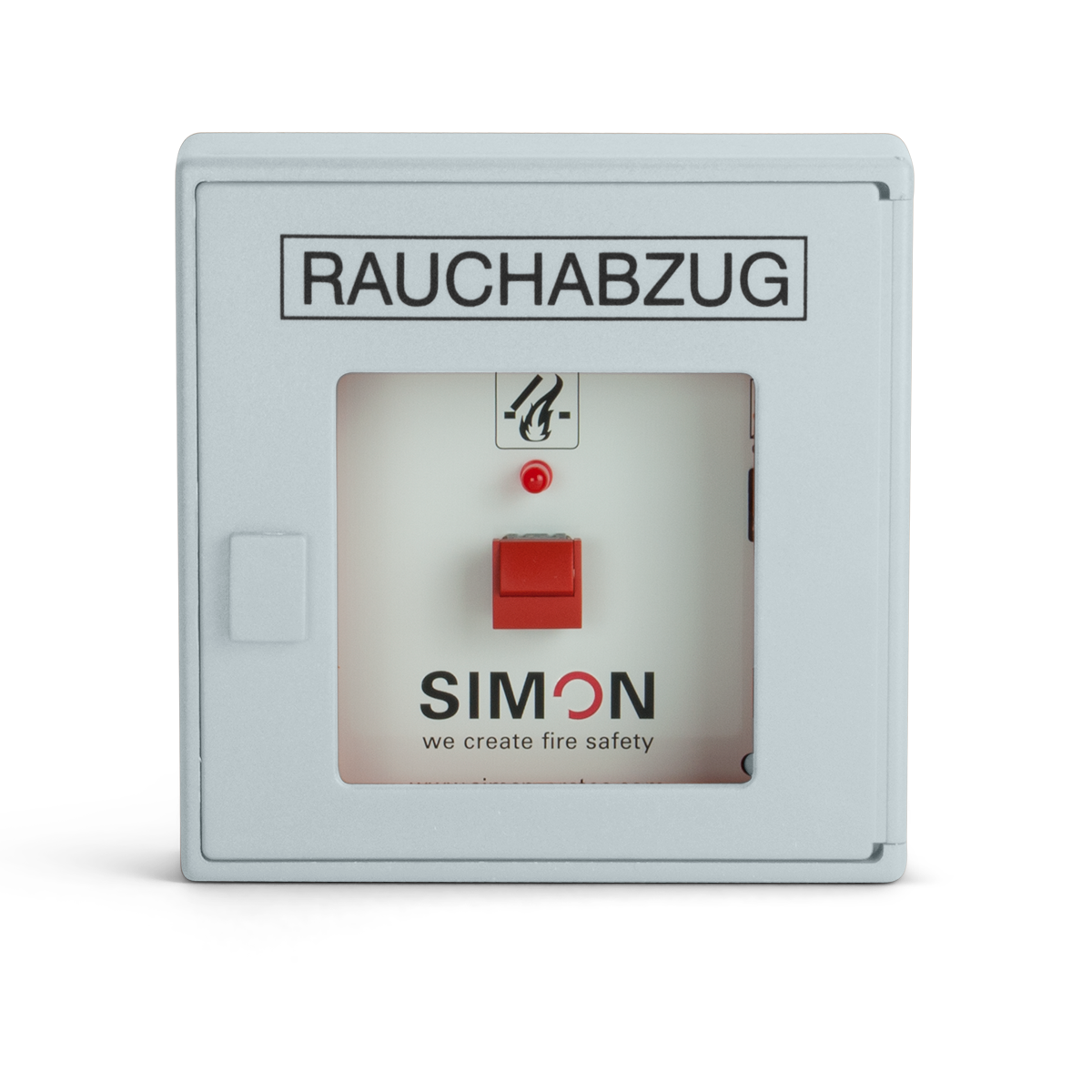

Secondary SHEV button type HE 081 Grey
| Part number | A3 2142 |
| Input voltage | 24 V DC |
| LED signs | Rot = Auslösung (RWA AUF) Gelb = Störung Grün = Betriebsbereit |
Electric SHEV emergency button, HE 081 gray
Secondary SHEV button of electrical line... more
Product information "Secondary SHEV button type HE 081 Grey"
Electric SHEV emergency button, HE 081 gray

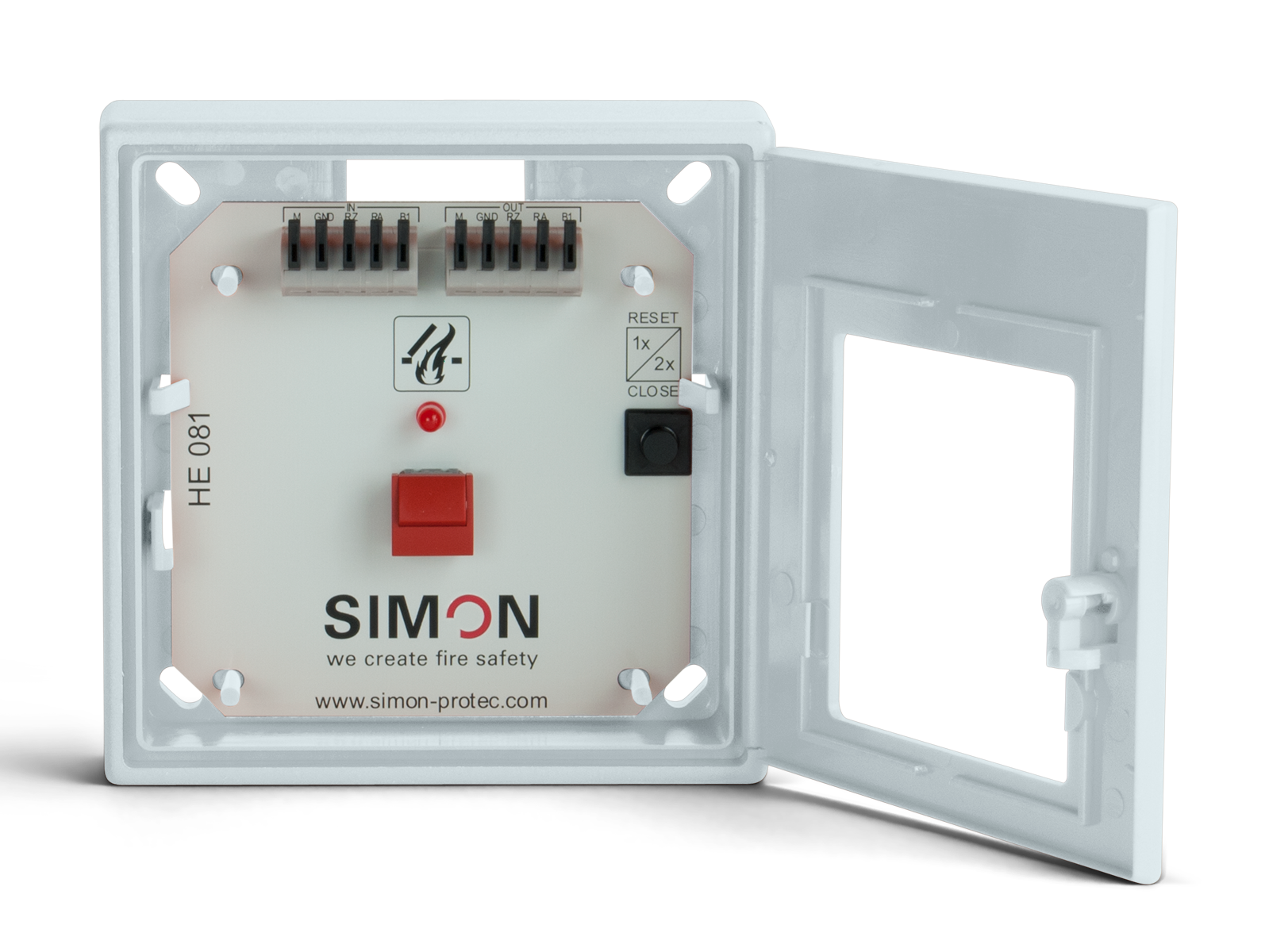

Secondary SHEV button of electrical line monitored RWA systems (SHEV 3, SHEV 6, ESM-T / X, - tested to DIN EN 12101/9), with interchangeable board, incl. "On" - button, "To" - button (NO) 24 V, 1 LED - indication for SHE triggered (red), according to VdS guideline 2592 and in the sense of the MBO. Color RAL 7035, in impact-resistant plastic housing (ABS) according to DIN 14655, EN 54 complete with thin glass plate and key as a unit.
Dimensions: 125 * 125 * 36 mm (H * W * D).
Related links to "Secondary SHEV button type HE 081 Grey"
Matchcode HE 081 Grau Article name Nebenbedienstelle für RWA-Anlagen HE 081 Grau... more
| Matchcode | HE 081 Grau |
| Article name | Nebenbedienstelle für RWA-Anlagen HE 081 Grau |
| Part number | A3 2142 |
| Input voltage | 24 V DC |
| LED signs | Rot = Auslösung (RWA AUF) Gelb = Störung Grün = Betriebsbereit |
| IP code | IP40 |
| Weight | 0.2 |
| Housing | Aufputz-Kunststoffgehäuse, optional im Unterputzgehäuse mit Drehtüre, Einschlagscheibe und Schlüssel |
| Housing type | Plastic |
| Colour | RAL 7035 |
| Housing width | 125 |
| Housing height | 125 |
| Housing depth | 36 |
| Appliance class | III |
| Nominal working temperature | 20 |
| Environment temperature range | -5 °C - 75 °C |
Product Information... more
Product Information
 Brochure Control Panels | Brochure Control Panels |
| Brochure Emergency override switch | Brochure about the emergency override switch HE-08x |
| Catalogue (web) Smoke & Daily Vent | Catalogue (web) Smoke & Daily Vent |
User Manuals
| Brief instruction HE-08x | Brief instruction for the alarm triggering devices HE080/081/082/086/087 |
Certificates
| Certificate Declaration of conformity HE-0xx | Declaration of conformity HE-0xx |
| Environmental Product Declaration (EPD) | Environmental Product Declaration (EPD) |
Other
| Safety instructions and warranty conditions | Safety instructions and warranty conditions |
