Compact Control Unit SHEV 6

    Part numberST4 3141
    Input voltage230 V AC
    Output voltage24 V DC
    Output current6.0
    SHE Groups1
    Ventilation groups1
Compact control panel SHEV 6 230 V AC / 24 V DC / 6 A The SHEV compact control panel is a... more
Product information "Compact Control Unit SHEV 6"

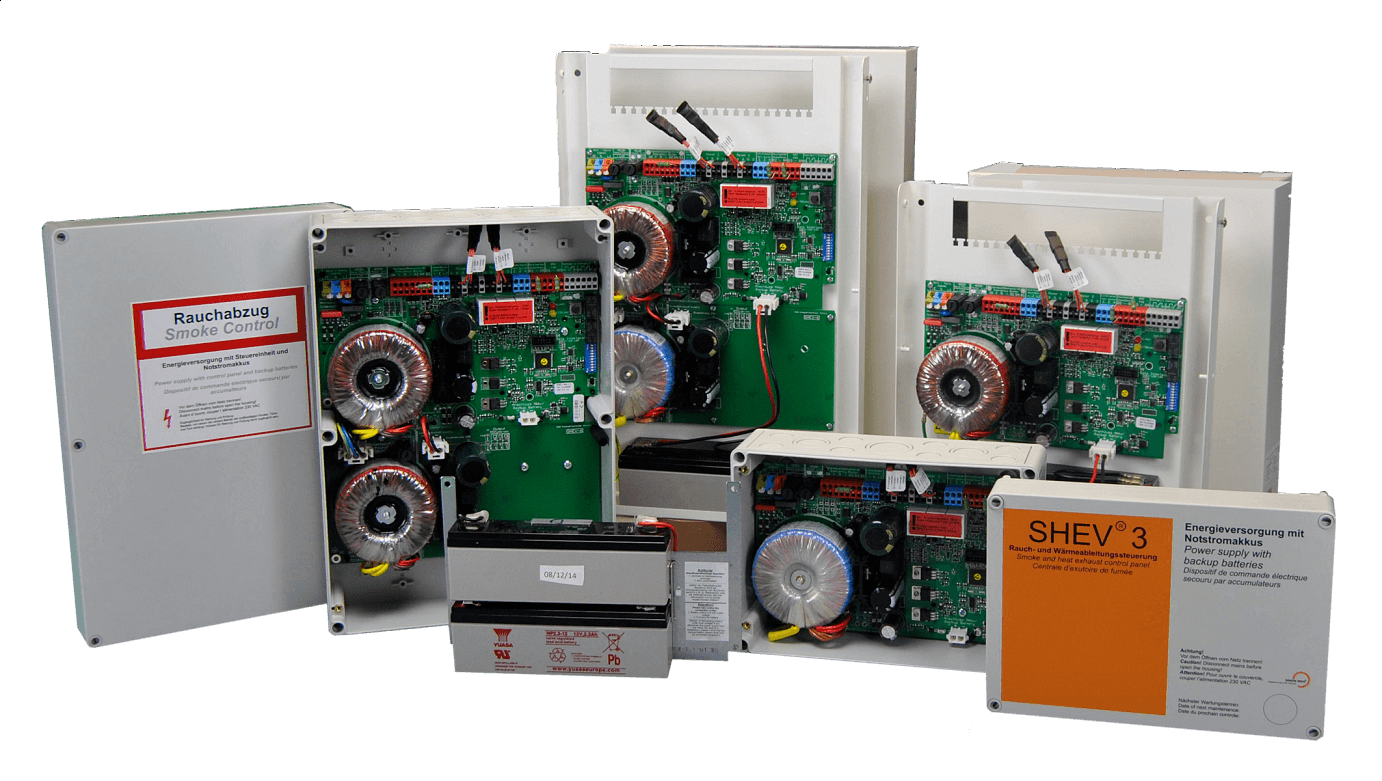

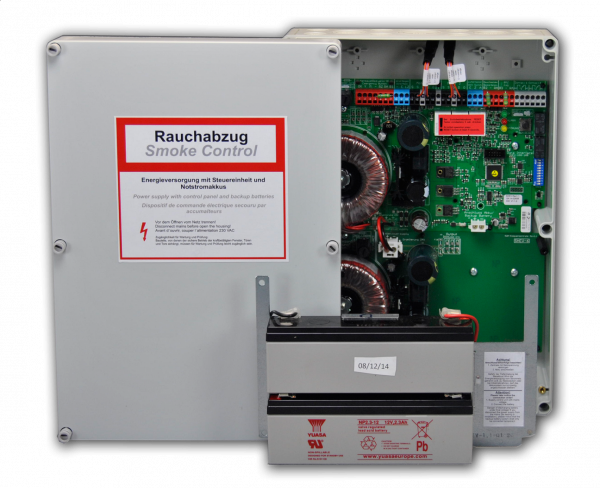

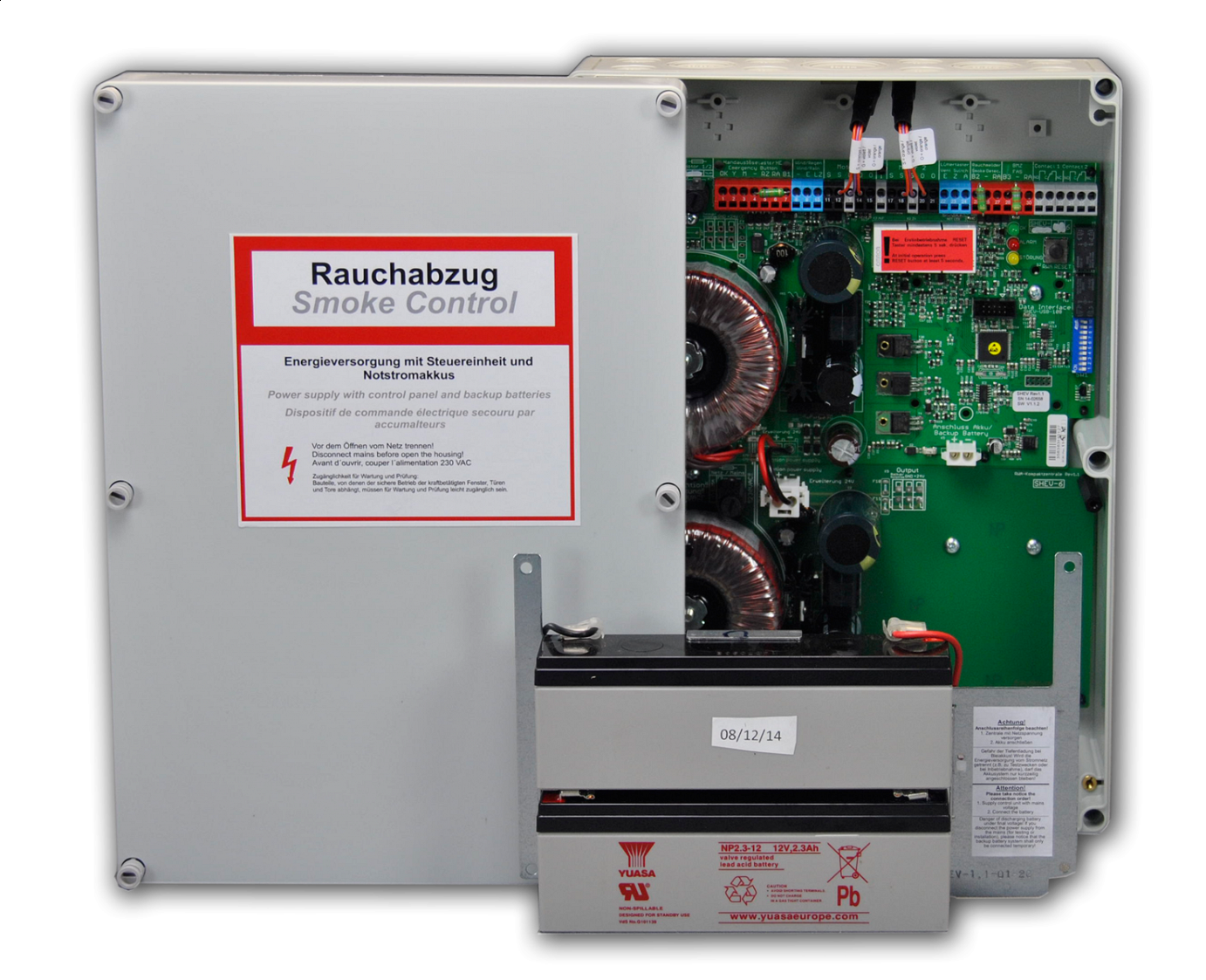

Compact control panel SHEV 6
230 V AC / 24 V DC / 6 A

The SHEV compact control panel is a compact device with an output current of 6 A. The control panel contains a primary and secondary power supply as well as the entire control and regulation technology for operating 24 Volt DC actuators for building openings, e.g. windows and smoke exhaust flaps. The compact control panel controls the actuators in case of fire as well as for daily ventilation. The SHEV compact control panel is specially designed for SHEV use in stairwells and for NSHEV and offers all necessary connections for release devices (push buttons, smoke detector, fire alarm system). In addition, various components can be connected for daily ventilation applications: wind/rain detectors, vent buttons, timers and higher-level controls. The ventilation function is at the same time a daily function control of the SHEV system.

The SHEV compact control panel is CE certified according to EN 12101-10 and tested according to ISO 21927-9.

Technical data:
Input voltage: 230 V AC
Output voltage: 24 V DC
Output current: 6 A
Monitoring: continuous and short-term operation
Protection class:: IP66
Temperature range: -5°C - +40°C
SHEV groups: 1
Ventilation groups: 1
Housing: Plastic
Color: grey (similar RAL 7035)
Dimensions (WxHxD): 361 x 254 x 111 mm
Weight: 6.40 kg

Manufacturer;
SIMON PROtec Systems GmbH
Typ: Compact control panel SHEV 6
Article number: ST4 3141

Output current (Ampere): 6 A
SHEV / VENT: Natuaral ventilation, SHEV, SHEV & Natural ventilation
Output voltage: 24 V DC
Related links to "Compact Control Unit SHEV 6"
Matchcode SHEV 6 Article name Kompaktzentrale SHEV 6 Part number ST4 3141... more
MatchcodeSHEV 6
Article nameKompaktzentrale SHEV 6
Part numberST4 3141
Input voltage230 V AC
Output voltage24 V DC
Output current6.0
ClassificationCE zertifiziert DIN EN 12101-10, geprüft ISO 21927-9
IP codeIP66
Switch on duration30
SHE Groups1
Ventilation groups1
Weight6.40
HousingKunststoffgehäuse
Housing typePlastic
ColourGrau, ähnl. RAL7035
Housing width361
Housing height254
Housing depth111
Environment temperature range-5 °C - 40 °C
Product Information... more

Product Information

Brochure Control Panels Brochure Control Panels
Brochure SHEV control unit Brochure for the SHEV-control unit of all SHE solutions in the staircase (englisch version)
Catalogue (web) Smoke & Daily Vent Catalogue (web) Smoke & Daily Vent
Control unit brochuere SHEV Control unit brochure for the compact control unit SHEV

User Manuals

Additional operating manual N-SHEV-3-6_EN Additional operating manual for the N-SHEV-3 and N-SHEV-6, optional 24 V clamp (english version)
Operating manual SHEV-6 Operating manual for SHEV-6
Quick Guide SHEV-3/6(-AP) Quick guide compact control unit SHEV-3/6(-AP)

Certificates

Certificate SHEV-3-6 Declaration of confirmity for the compact control unit SHEV-3-6
Certifictate UKCA_SHEV-3-6-602 Declaration of conformity for smoke control panel SHEV-3, SHEV-6, SHEV-602
Declaration of performance for the power supply of the SHEV Declaration of performance for the power supply of the SHEV-3 / SHEV-6 control unit
Environmental Product Declaration (EPD) Environmental Product Declaration (EPD)

Other

Information on batteries Additional information on the disposal of waste batteries
Safety instructions and warranty conditions Safety instructions and warranty conditions
