Main and secondary SHEV button HE 083 Yellow
| Part number | A3 2161 |
| Input voltage | 24 V DC |
| LED signs | Rot = Auslösung (RWA AUF) Gelb = Störung Grün = Betriebsbereit |

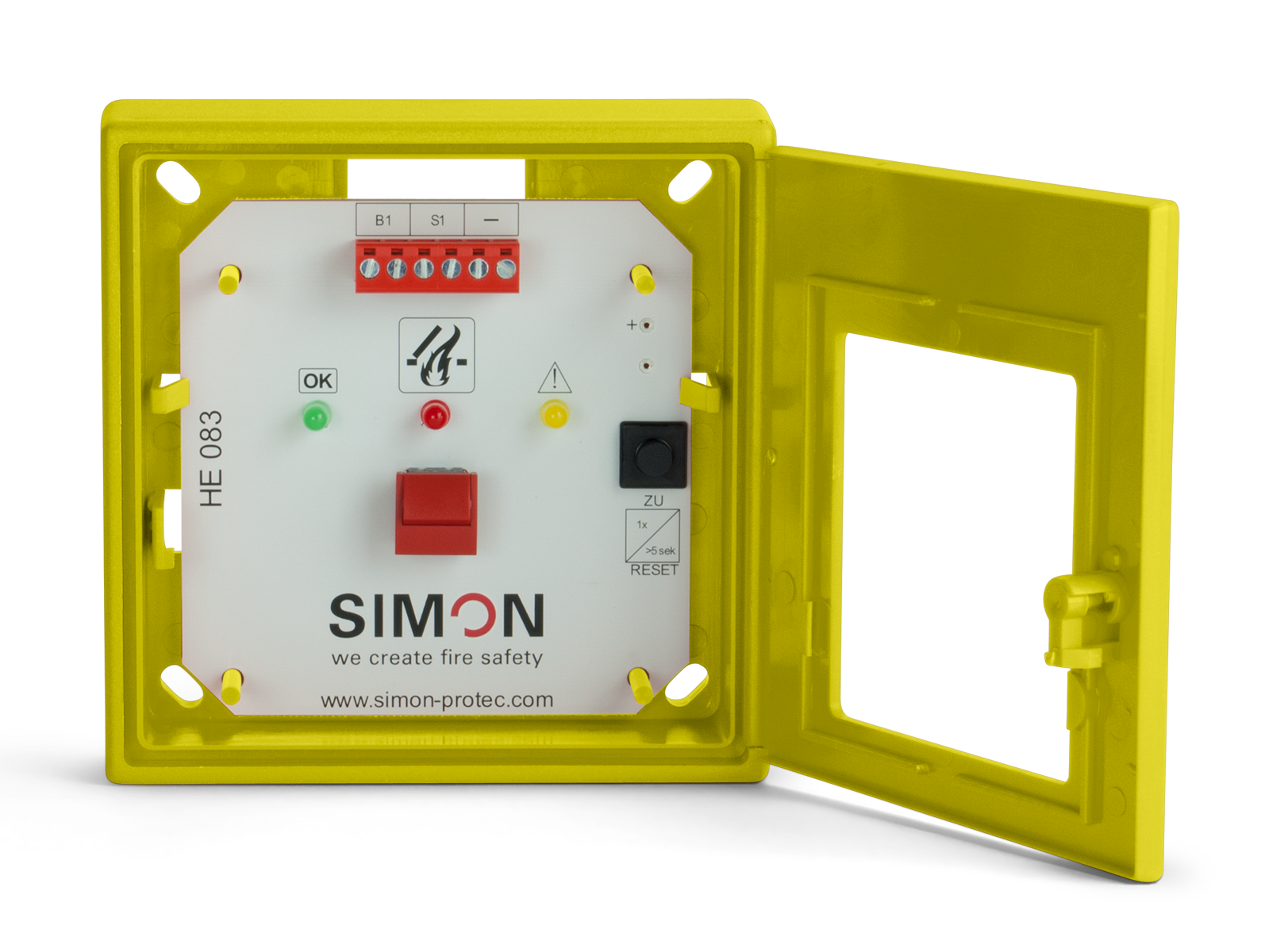

Electrical manual emergency override switch HE-083 yellow
The electric SHEV emergency button HE 083 yellow is used in smoke and heat extraction systems, type SP-300 / SP-600 / M-SHEV (with SP-100). In the case of fire it can be used to activate the electrical control system and start the smoke funnel by hand. Additionally, it shows the condition of the control system.
Technical data:
Input voltage range: 15 V DC to 30 V DC
Protection class: IP 40
Temperature range: -5°C - +75°C
Housing: shock-resistant plastic housing (ABS) with frangible element (break glass plane) and key
Color: yellow
Dimensions: 125 x 125 x 36 mm
Weight: 0,2 kg
Manufacturer:
SIMON PROtec Systems GmbH
Type: Electrical manual emergency override switch HE-083 yellow
Article number: A3 2161
| Matchcode | HE 083 Gelb |
| Article name | Haupt- und Nebenbedienstelle HE 083 Gelb |
| Part number | A3 2161 |
| Input voltage | 24 V DC |
| LED signs | Rot = Auslösung (RWA AUF) Gelb = Störung Grün = Betriebsbereit |
| IP code | IP40 |
| Weight | 0.2 |
| Housing | Kunststoffgehäuse (ABS) |
| Housing type | Plastic |
| Colour | RAL 1004 |
| Housing width | 125 |
| Housing height | 125 |
| Housing depth | 36 |
| Nominal working temperature | 20 |
| Environment temperature range | -5 °C - 75 °C |
Product Information
 Brochure Control Panels | Brochure Control Panels |
| Brochure Emergency override switch | Brochure about the emergency override switch HE-08x |
| Catalogue (web) Smoke & Daily Vent | Catalogue (web) Smoke & Daily Vent |
User Manuals
| Brief instruction HE-083 | Brief instruction for the alarm triggering device |
Certificates
| Certificate Declaration of conformity HE-0xx | Declaration of conformity HE-0xx |
| Environmental Product Declaration (EPD) | Environmental Product Declaration (EPD) |
Other
| Safety instructions and warranty conditions | Safety instructions and warranty conditions |
