Main SHEV button type HE 082 grey
| Part number | A3 2152 |
| Input voltage | 24 V DC |
| LED signs | Rot = Auslösung (RWA AUF) Gelb = Störung Grün = Betriebsbereit |

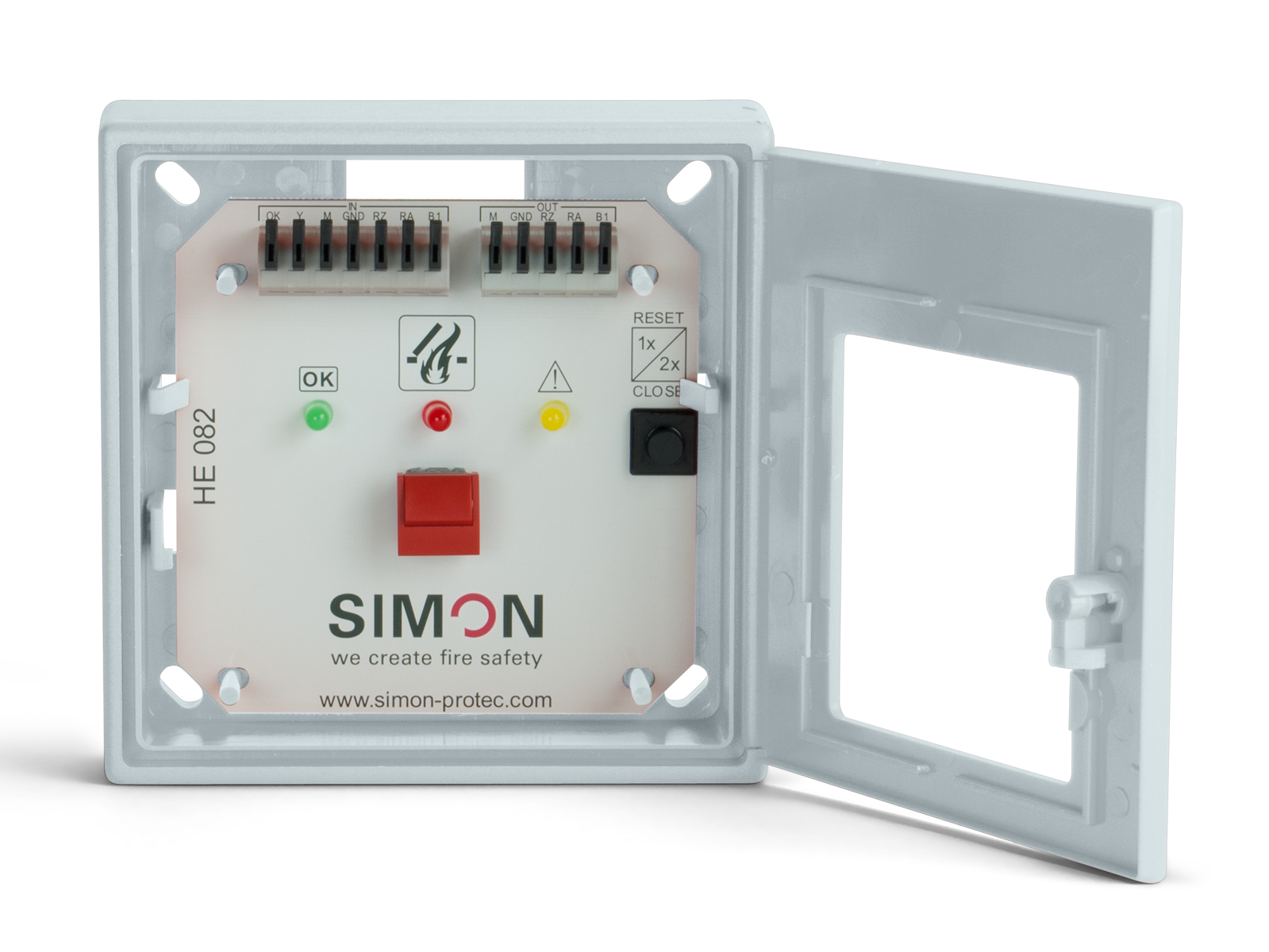

Electric SHEV emergency button, HE 082 Grey
The HE 082 Gray is a main SHEV button of electrical line-monitored SHEV systems (SHEV 3, SHEV 6, ESM-T / X, - tested according to DIN EN 12101-9), whose board is interchangeable. "UP" button and "CLOSE" button (NO) are included.
Three LED indicators for SHEV on the HE 082 Gray indicate the operating status of the SHEV emergency button: triggered (red), ready for operation (green) and fault (yellow) - according to VdS guideline 2592 and in the sense of the MBO.
The electrical SHEV emergency button HE 082 Gray is available in RAL color 7035 (according to VdS 2592) in a shock-proof housing made of plastic (ABS) according to DIN 14655, EN 54, complete with thin glass pane and key as one unit.
Dimensions: 125 * 125 * 36 mm (H * W * D).
| Matchcode | HE 082 Grau |
| Article name | Hauptbedienstelle für RWA-Anlagen HE 082 Grau |
| Part number | A3 2152 |
| Input voltage | 24 V DC |
| LED signs | Rot = Auslösung (RWA AUF) Gelb = Störung Grün = Betriebsbereit |
| IP code | IP40 |
| Weight | 0.2 |
| Housing | Aufputz-Kunststoffgehäuse, optional im Unterputzgehäuse mit Drehtüre, Einschlagscheibe und Schlüssel |
| Housing type | Plastic |
| Colour | Grau (RAL 7035) |
| Housing width | 125 |
| Housing height | 125 |
| Housing depth | 36 |
| Appliance class | III |
| Nominal working temperature | 20 |
| Environment temperature range | -5 °C - 75 °C |
