Main SHEV button HE-080-GELB-BIO
| Part number | A3 3131 |
| Input voltage | 24 V DC |
| LED signs | Rot = Auslösung (RWA AUF) Gelb = Störung Grün = Betriebsbereit |

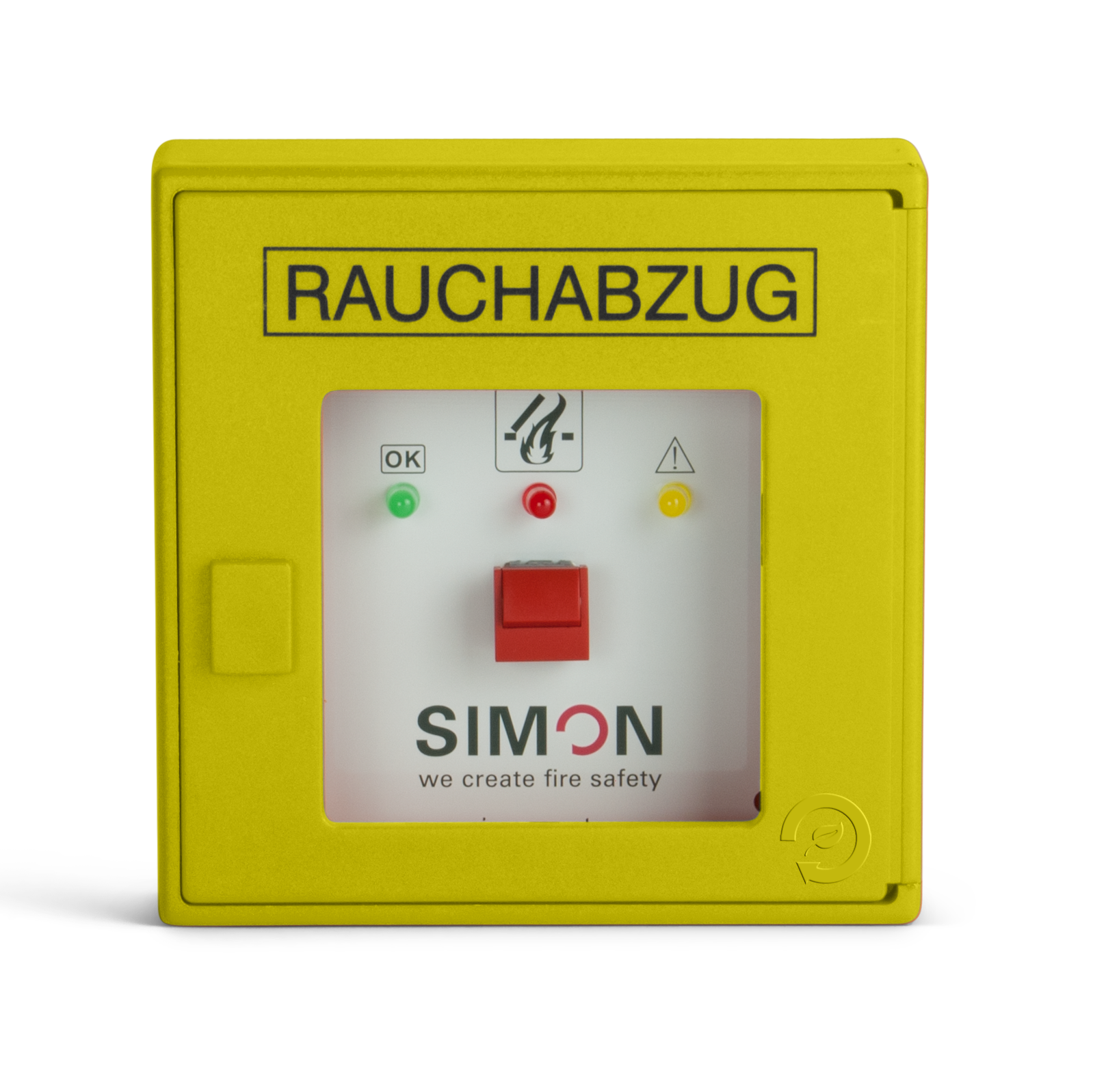

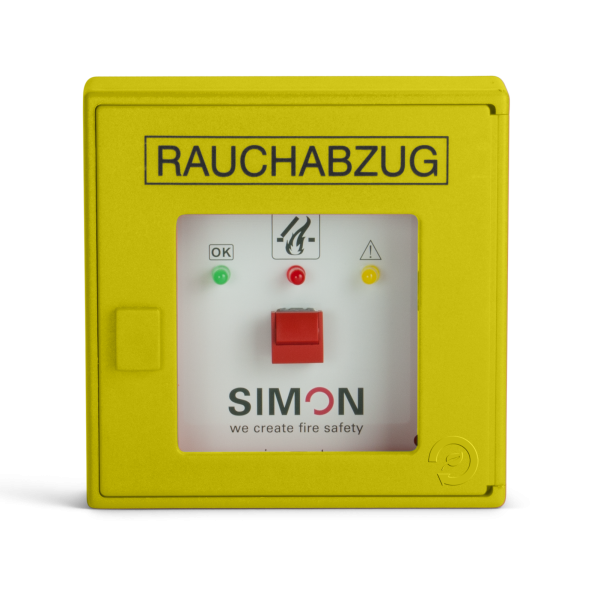

Electrical manual emergency override switch -main site HE-080 Gelb BioBased
The electric SHEV emergency switch HE-080 as main site switch in yellow is used in smoke and heat extraction systems witch type SHEV or M-SHEV. In the case of fire it can be used to activate the electrical control system and start the smoke funnel by hand. Additionally, it shows the condition of the control system. The sustainable housing is made of biobased (up to 78 %) materials.
Technical data:
Main site switch with buzzer and LED signals for alarm, OK and fault. Triggering for alarm and reset.
Protection class: IP 40
Temperature range: -5°C - +75°C
Housing: shock-resistant housing made from BIOBASE materials with frangible element (breack glass plane) and key.
Color: yellow
Dimensions: 125 mm x 125 mm x 36 mm
Weight: 0,2 kg
Manufacturer:
SIMON PROtec Systems GmbH | Medienstraße 8 | D-94036 Passau
Type: Electrical manual switch - main site HE-080 in yellow
Article number: A3 3131
WEEE Reg. No.: DE 97535049
| Matchcode | HE-080-GELB-BIO |
| Article name | Hauptbedienstelle HE-080-GELB-BIO |
| Part number | A3 3131 |
| Input voltage | 24 V DC |
| LED signs | Rot = Auslösung (RWA AUF) Gelb = Störung Grün = Betriebsbereit |
| IP code | IP40 |
| Weight | 0.2 |
| Housing | Aufputz-Kunststoffgehäuse, optional im Unterputzgehäuse mit Drehtüre, Einschlagscheibe und Schlüssel |
| Housing type | Biobased |
| Colour | RAL 1004 |
| Housing width | 125 |
| Housing height | 125 |
| Housing depth | 36 |
| Appliance class | III |
| Nominal working temperature | 20 |
| Environment temperature range | -5 °C - 75 °C |
