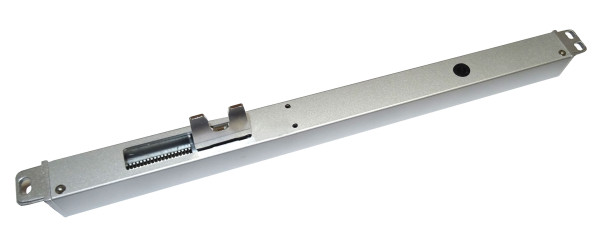

Supplementary electric locking PA-ZV-LOCK-A

Supplementary Electric Locking PA-ZV-LOCK
24 V DC / 1.0 A

The locking actuator PA-ZV-LOCK is used for locking and unlocking windows with integrated locking stripe and for subsequent control of 24 V DC actuator technology. The locking actuator PA-ZV-LOCK enables an installation integrated
into the frame (with lock plate) as well as an installation mounted on the frame (with locking fork). Both brackets move the revolving locking stripe of the window via the roller pins optionally 18 mm or 36 mm (stroke setting via DIP switch 2) in OPEN or CLOSE direction. The connection via SICO BUS to a SICO capable PA actuator (Master) is made via a four-pin connection plug.

Technical Data:
Rated voltage: 24 V DC (- 15 % / + 15 %)
Ripple: max. 500 mV
Rated current: 1.1 A
Max. starting current: 1.2 A
Max. cut-off current: 1.1 A
Overload protection: electronic
Switch-on duration: 30% (ON: 3 min. / OFF: 7 min.)
Opening / locking time with stroke 18 mm: 4 s
Opening / locking time with stroke 18 mm: 7.2 s
Protection type: IP32 / IP10
Temperature range: 0°C to +70°C
Housing: Aluminium
Connection: 4-pin plug
Cut-off technology: integrated electronic overload cut-off
Dimensions (LxWxH): 377 x 26 x 26 mm
Weight: 0.47 kg

Manufacturer:
SIMON PROtec Systems GmbH | Medienstraße 8 | D-94036 Passau
Type: Supplementary electric locking PA-ZV-LOCK (-I / -A)
Article number: B5 6222 / B5 6221
WEEE Reg. No.: DE 97535049
