Louvre slit actuator PA-LSH-75/165
| Part number | M2 2485 |
| Input voltage | 24 V DC |
| Nominal current | 1.0 |
| IP code | IP20 |
| Switch on duration | 30 |
Slit actuator PA-LSH-75/165
24 V DC / 1.0 A / 750 N / 165 mm stroke

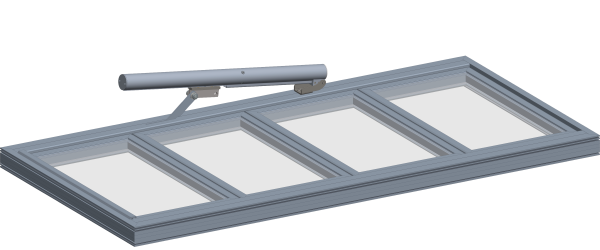

The slit actuator PA-LSH-75/165 is an electromechanical actuator for opening and closing louvre windows of the type Hahn. The electronic load cut-off with microcontroller is integrated in the actuator and thus prevents an overload in the end positions. Tested according to DIN EN 12101-2 for SHEV application with retriggering blockage.
Technical data:
Rated voltage: 24 V DC /±15%
Rated current: 1.0 A
Switch-on duration: 30% (ON: 3 min / OFF: 7 min)
Push force: 750 N
Pulling force: 750 N
Nominal locking force: 1000 N
Stroke length: 165 mm
Running speed: 7.7 mm/s
Protection class: IP20
Temperature range: -5°C to +75°C
Housing: aluminium profile tube anodized in EV1
Housing type: Aluminium
Connection: SICO-PLUG (without connection cable / set)
Dimensions (LxDxH): 523 x 36 x 63 mm
Sound level: < 70 dB (A)
Weight: 1.75 kg
Manufacturer:
SIMON PROtec Systems GmbH | Medienstraße 8 | D-94036 Passau
Type: Slit actuator PA-LSH-75/165
Article number: M2 2485
WEEE Reg. No.: DE 97535049
| Matchcode | PA-LSH-75/165 |
| Article name | Lamellenschlitzantrieb PA-LSH-75/165 |
| Part number | M2 2485 |
| Input voltage | 24 V DC |
| Nominal current | 1.0 |
| Stroke | 165 |
| Push force | 750 |
| Pull force | 750 |
| Cut-Off | eingebaute elektronische Lastabschaltung |
| IP code | IP20 |
| Switch on duration | 30 |
| Mounting way | attached |
| Weight | 1,75 |
| Housing | Durchgehendes Alu-Profilrohr, eloxiert E6/EV1 mit integrierter Aufnahme für flexibles Konsolensystem |
| Housing type | Aluminium |
| Colour | Auf Anfrage |
| Housing length | 544 |
| Diameter | 59 |
| Appliance class | III |
| Connection cable | SICO PLUG Anschluss. Exklusive Anschlussleitung / -set. |
| Brackets included | yes |
