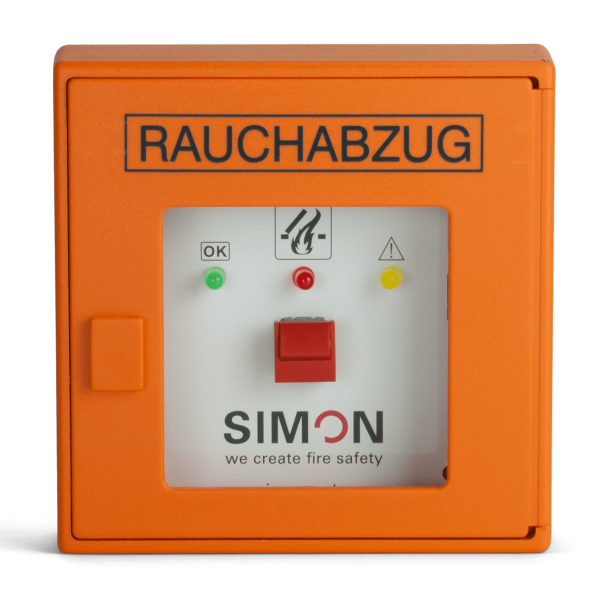

Main SHEV button HE 083 Orange

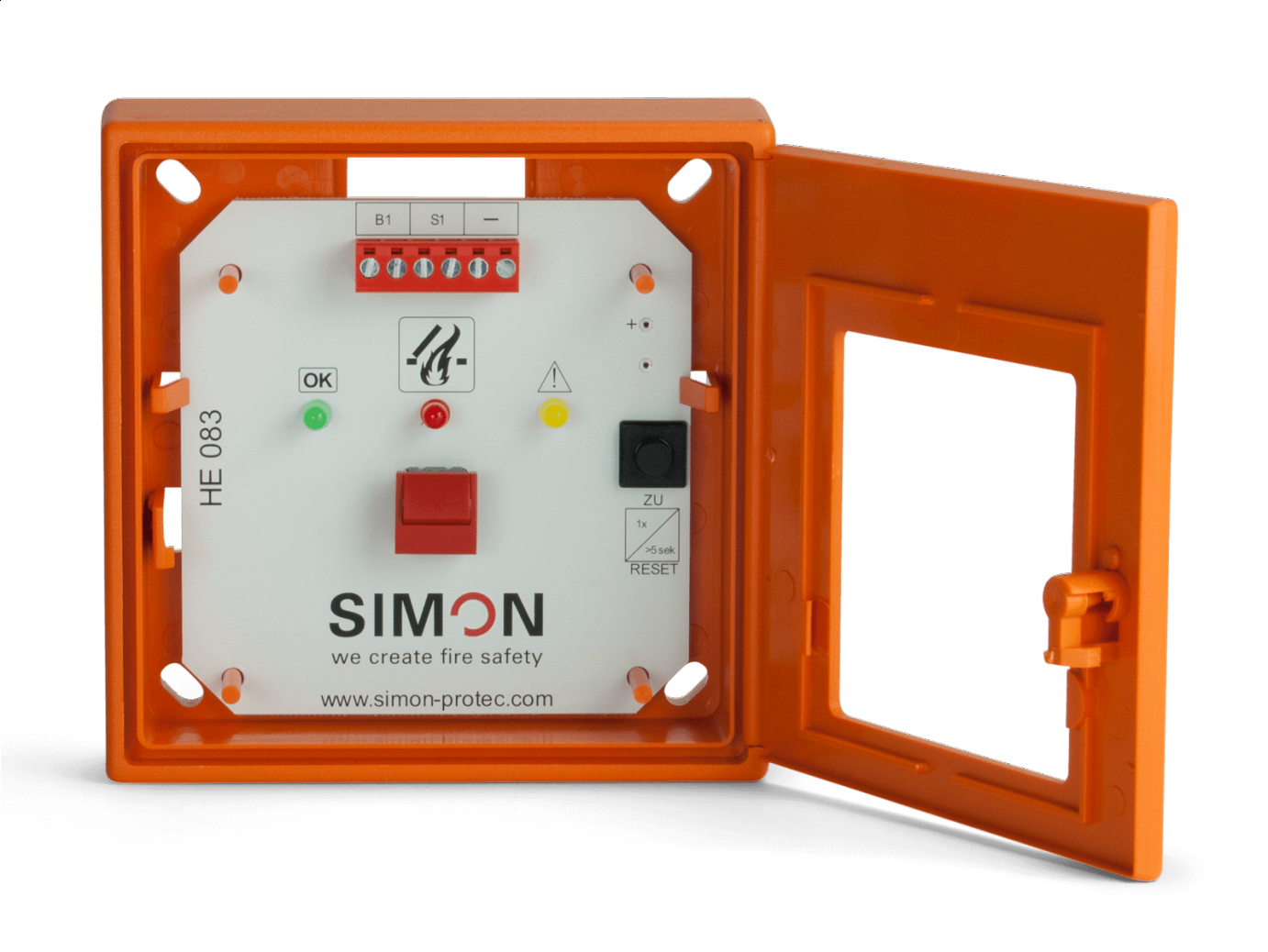

Preview: Photo of the SHE button HE 083 with opened housing Preview: Photo of the SHE button HE-083 with opened housing
Photo of the SHE button HE 083 with opened housing
Photo of the SHE button HE-083 with opened housing

    Part numberA3 2160
    Input voltage24 V DC
    LED signsRot = Auslösung (RWA AUF)
    Gelb = Störung
    Grün = Betriebsbereit
Description Technische Daten Downloads
Description
Electrical manual emergency override switch HE-083 organge The electric SHEV emergency... more
Close menu
Product information "Main SHEV button HE 083 Orange"

Electrical manual emergency override switch HE-083 organge

The electric SHEV emergency button HE 083 Orange is used in smoke and heat extraction systems, type SP-300 / SP-600 / M-SHEV (with SP-100). In the case of fire it can be used to activate the electrical control system and start the smoke funnel by hand. Additionally, it shows the condition of the control system.

Technical data:
Input voltage range: 15 V DC to 30 V DC
Protection class: IP 40
Temperature range: -5°C - +75°C
Housing: shock-resistant plastic housing (ABS) with frangible element (break glass plane) and key
Color: orange
Dimensions: 125 x 125 x 36 mm
Weight: 0,2 kg

Manufacturer:
SIMON PROtec Systems GmbH
Type: Electrical manual emergency override switch HE-083 organge
Article number: A3 2160

Related links to "Main SHEV button HE 083 Orange"
Downloads
Matchcode HE 083 Orange Article name Haupt- und Nebenbedienstelle HE 083 Orange Part... more
Zurück
MatchcodeHE 083 Orange
Article nameHaupt- und Nebenbedienstelle HE 083 Orange
Part numberA3 2160
Input voltage24 V DC
LED signsRot = Auslösung (RWA AUF) Gelb = Störung Grün = Betriebsbereit
IP codeIP40
Weight0.2
HousingKunststoffgehäuse (ABS)
Housing typePlastic
ColourRAL 2011
Housing width125
Housing height125
Housing depth36
Nominal working temperature20
Environment temperature range-5 °C - 75 °C
Technische Daten
Product Information... more
Zurück

Product Information

Brochure Control Panels Brochure Control Panels
Brochure Emergency override switch Brochure about the emergency override switch HE-08x
Catalogue (web) Smoke & Daily Vent Catalogue (web) Smoke & Daily Vent

User Manuals

Brief instruction HE-083 Brief instruction for the alarm triggering device

Certificates

Certificate Declaration of conformity HE-0xx Declaration of conformity HE-0xx
Environmental Product Declaration (EPD) Environmental Product Declaration (EPD)

Other

Safety instructions and warranty conditions Safety instructions and warranty conditions
