Secondary SHEV button type HE 081 Orange

Preview: Photo of the SHE button HE-081 with closed housing Preview: Photo of the SHE button HE-081 with opened housing

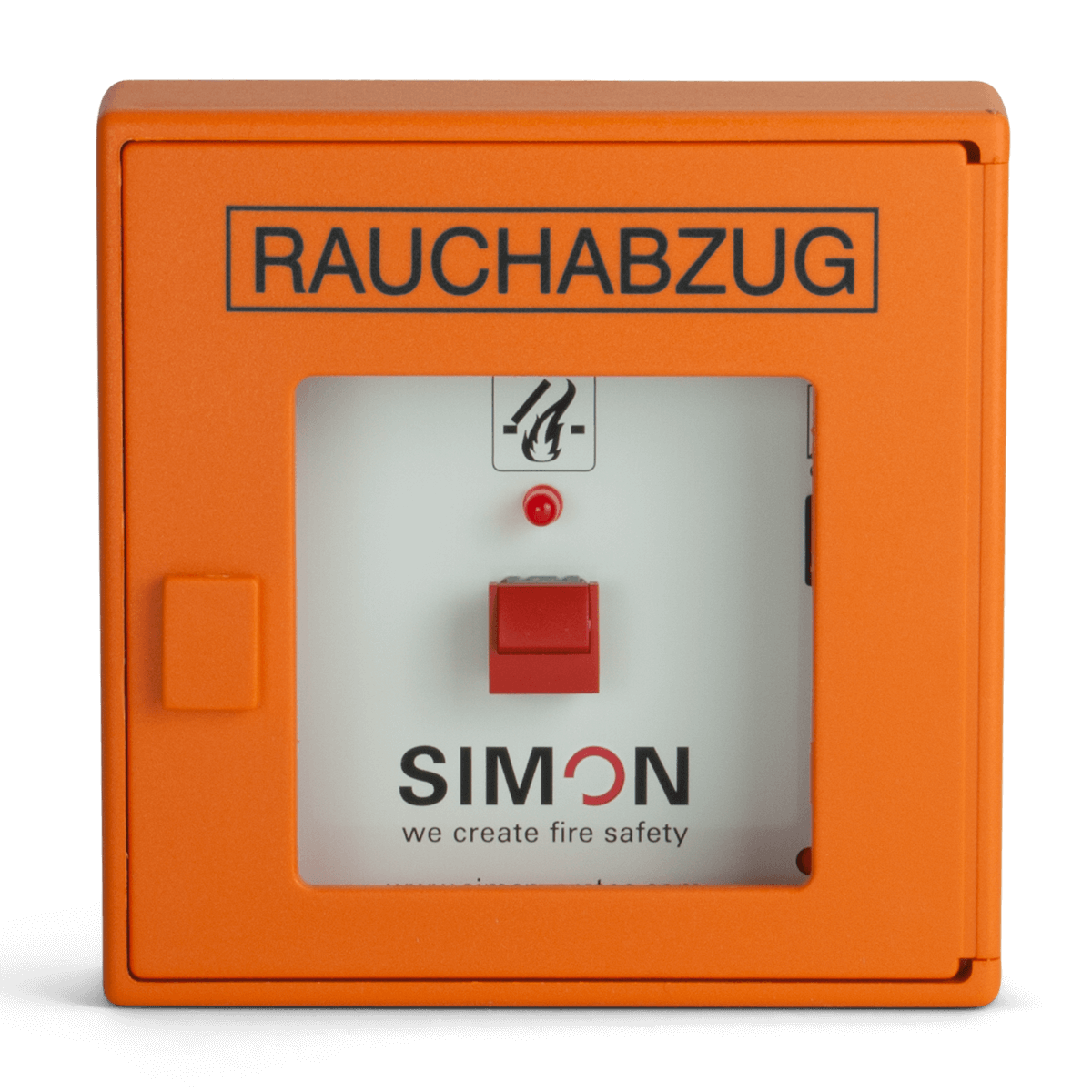

Photo of the SHE button HE-081 with closed housing

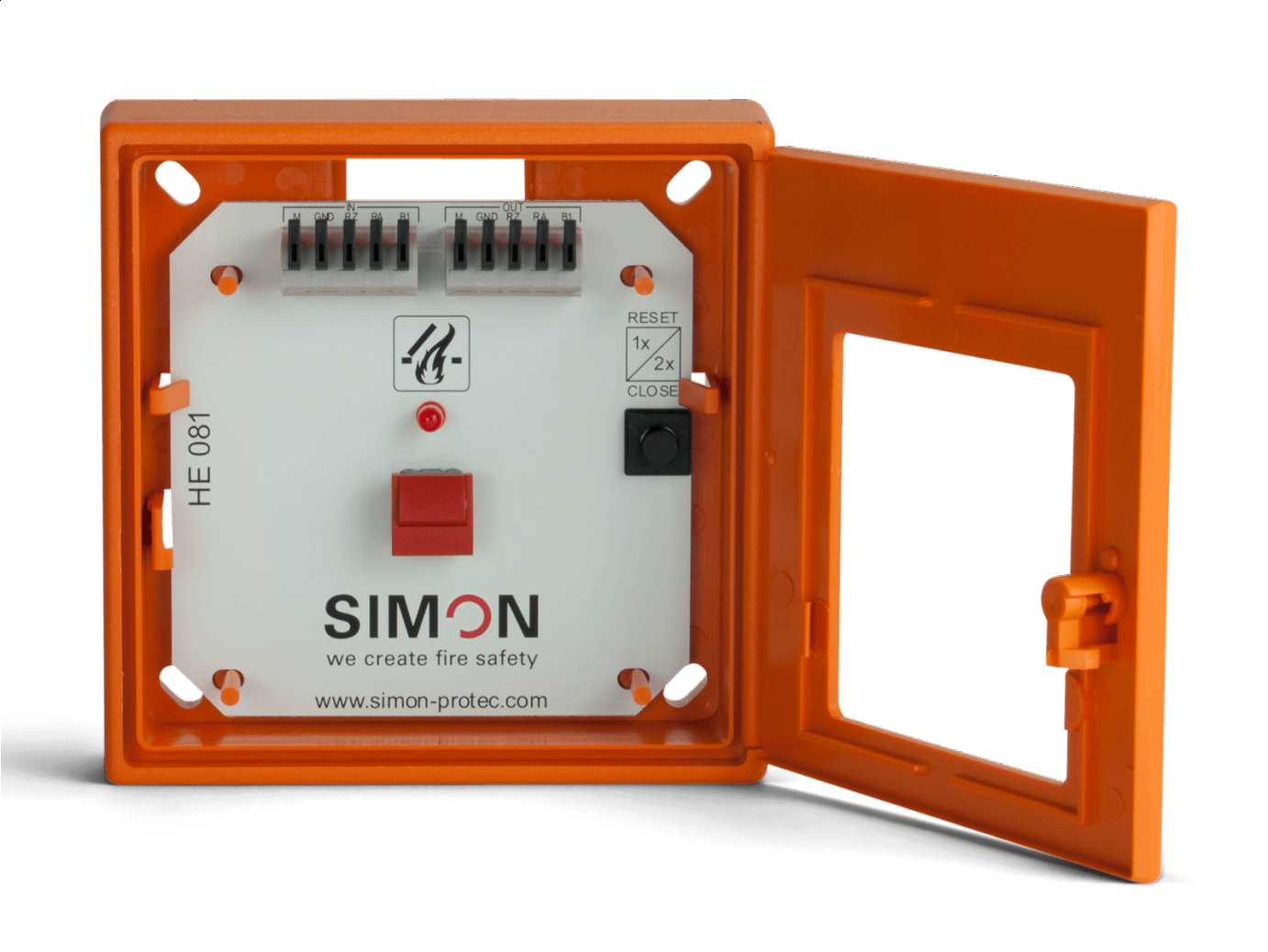

Photo of the SHE button HE-081 with opened housing

    Part numberA3 2140
    Input voltage24 V DC
    LED signsRot = Auslösung (RWA AUF)
    Gelb = Störung
    Grün = Betriebsbereit
Description Technische Daten Downloads
Description
Electric SHEV emergency button, HE 081 orange secondary SHEV button of electrical line... more
Close menu
Product information "Secondary SHEV button type HE 081 Orange"

Electric SHEV emergency button, HE 081 orange

secondary SHEV button of electrical line monitored SHEV systems (SHEV 3, SHEV 6, ESM-T / X, - tested to DIN EN 12101/9), with interchangeable board, incl. "On" - button, "To" - button (NO) 24 V, 1 LED - indication for SHEV triggered (red), according to VdS guideline 2592 and in the sense of the MBO. Color RAL 2011, in impact-resistant plastic housing (ABS) according to DIN 14655, EN 54 complete with thin glass and key as a unit.

Dimensions: 125 * 125 * 36 mm (H * W * D).

Related links to "Secondary SHEV button type HE 081 Orange"
Downloads
Matchcode HE 081 Orange Article name Nebenbedienstelle für RWA-Anlagen HE 081 Orange... more
Zurück
MatchcodeHE 081 Orange
Article nameNebenbedienstelle für RWA-Anlagen HE 081 Orange
Part numberA3 2140
Input voltage24 V DC
LED signsRot = Auslösung (RWA AUF) Gelb = Störung Grün = Betriebsbereit
IP codeIP40
Weight0.2
HousingAufputz-Kunststoffgehäuse, optional im Unterputzgehäuse mit Drehtüre, Einschlagscheibe und Schlüssel
Housing typePlastic
ColourOrange RAL 2011
Housing width125
Housing height125
Housing depth36
Appliance classIII
Nominal working temperature20
Environment temperature range-5 °C - 75 °C
Technische Daten
Product Information... more
Zurück

Product Information

Brochure Control Panels Brochure Control Panels
Brochure Emergency override switch Brochure about the emergency override switch HE-08x
Catalogue (web) Smoke & Daily Vent Catalogue (web) Smoke & Daily Vent

User Manuals

Brief instruction HE-08x Brief instruction for the alarm triggering devices HE080/081/082/086/087

Certificates

Certificate Declaration of conformity HE-0xx Declaration of conformity HE-0xx
Environmental Product Declaration (EPD) Environmental Product Declaration (EPD)

Other

Safety instructions and warranty conditions Safety instructions and warranty conditions
