Main SHEV button type HE 080 Orange

Preview: Photo of the SHE button HE-080 closed housing Preview: Photo of the SHE button HE-080 with opened housing

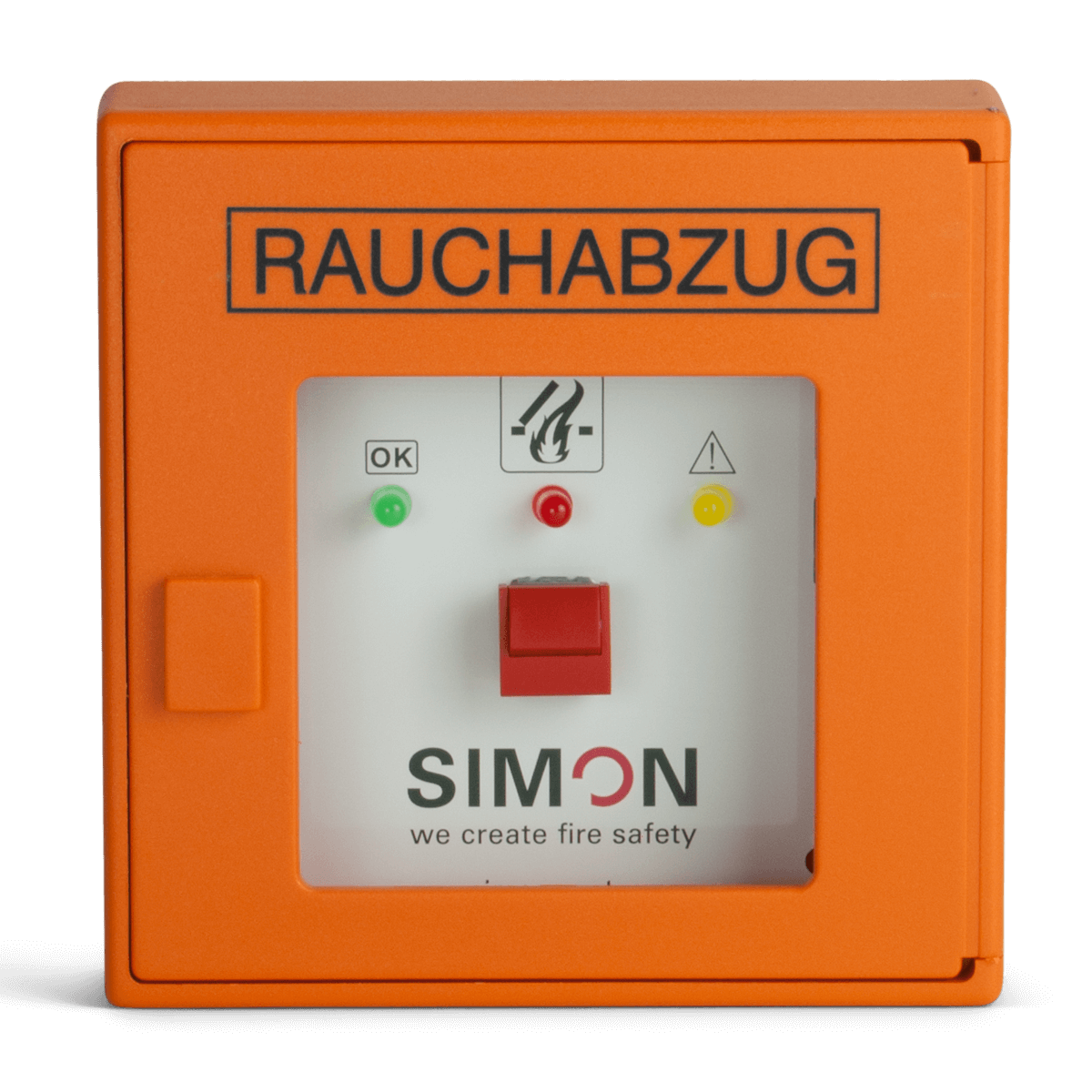

Photo of the SHE button HE-080 closed housing

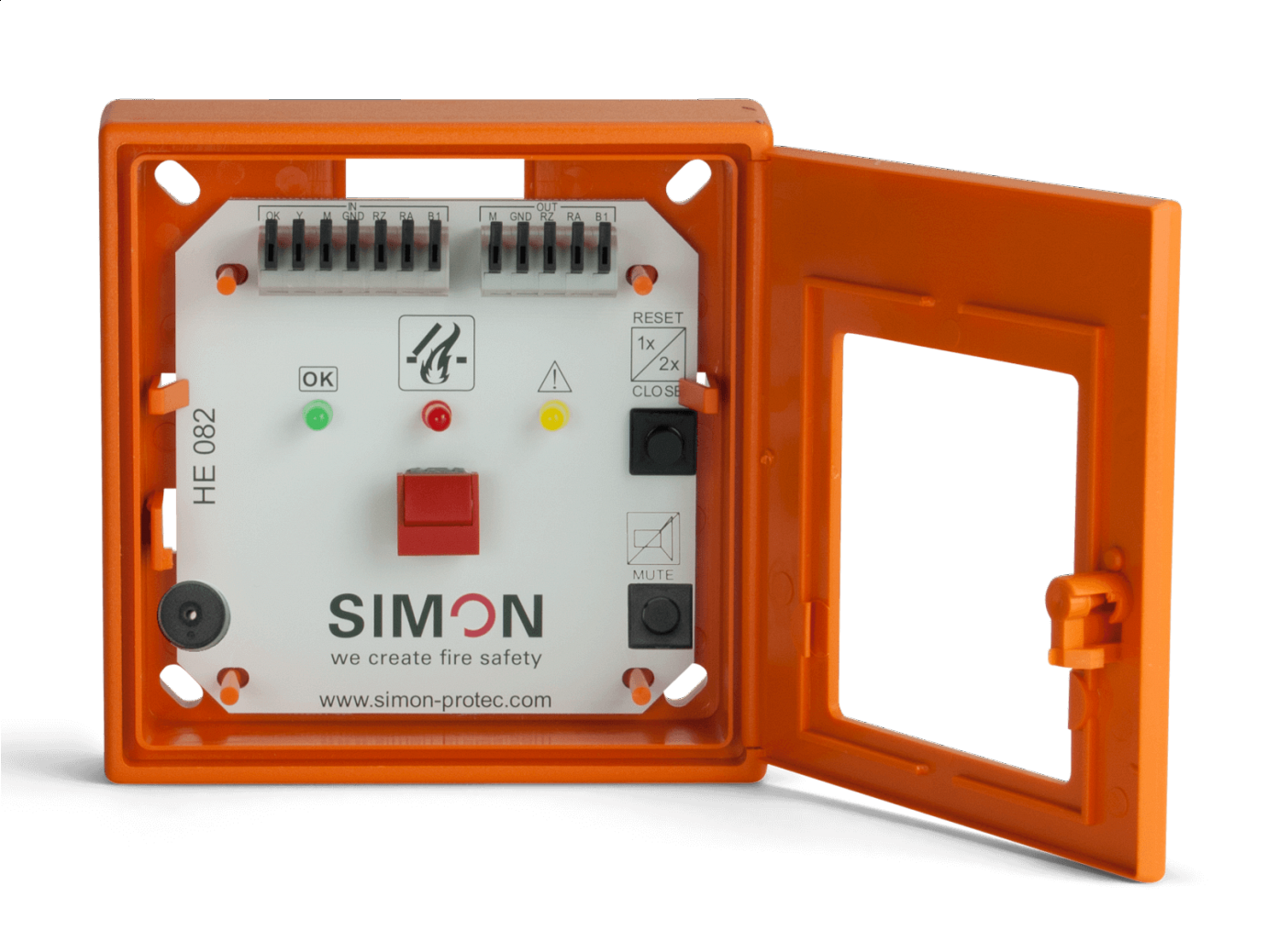

Photo of the SHE button HE-080 with opened housing

    Part numberA3 2130
    Input voltage24 V DC
    LED signsRot = Auslösung (RWA AUF)
    Gelb = Störung
    Grün = Betriebsbereit
Description Technische Daten Downloads
Description
Electrical manual emergency override switch HE-080 orange The HE 080 Orange is a main... more
Close menu
Product information "Main SHEV button type HE 080 Orange"

Electrical manual emergency override switch HE-080 orange

The HE 080 Orange is a main SHEV-button of electrical line-monitored SHEV systems (SHEV 3, SHEV 6, ESM-T / X, - tested according to DIN EN 12101-9), whose board is interchangeable. The "UP" and "CLOSE" buttons are included.
On the main SHEV-button there are three LED indicators for SHEV (according to the VdS guideline 2592 and in the sense of the MBO): "triggered" = red, "ready" = green and "fault" = yellow. A buzzer signals a trip or a fault. This can be eliminated with the mute key (inclusive).

The HE 080 is available in impact-resistant plastic housing (ABS), in accordance with DIN 14655, in RAL color 2011 and complete with thin-glass disc and key as a unit.

Dimensions: 125 * 125 * 36 mm (H * W * D)
