Supplementary electric locking ZV-ELIMATIC-A

Part number | B5 6105 |
Input voltage | 24 V DC |
Nominal current | 0.95 |
Switch on duration | 30 |
Supplementary Electric Locking ZV-ELIMATIC-A
24 V DC / 0.95 A

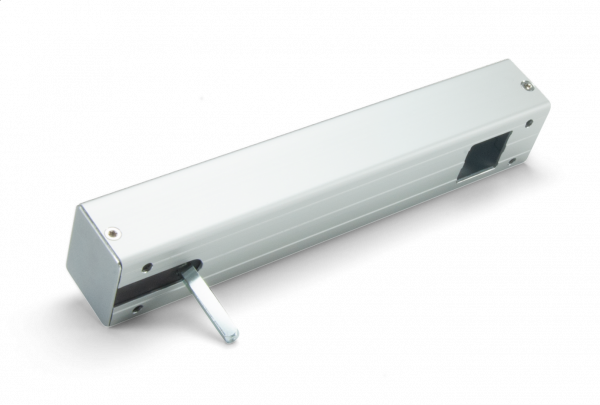

The processor-controlled locking device ZV-ELIMATIC is delivered in a compact aluminium housing. It includes a square-pin (7 x 7 mm) for the connection to the locking mechanisms of the window and a 6-pole connector for two 3-pole plugs (supply / actuator connection). Possible settings via DIP-switch 1 – 2 (rotary direction / angle of rotation). The rotation angle can be set to 90° and 180°. The ZV-ELIMATIC is equipped with an integrated integrated work sequence controller with F-contact.
Technical Data:
Rated voltage: 24 V DC (- 15 % / + 15 %)
Ripple: max. 500 mV
Rated current: 0.95 A
Max. starting current: 1 A
max. cut-off current: 1.05 A
Switching time sequence control: ca. 3 s
Max. switching current for all connected actuators: 6 A
Switch-on duration: 30% (ON: 3 min. / OFF: 7 min.)
Max. turning moment: 10 Nm
Turning moment (nominal load): 9 Nm
Opening time (nominal load / 180°): ≤ 13 s
Protection type: IP32
Temperature range: 0°C to +75°C
Housing: Aluminium E6/EV1
Connection: 6-pole connector for two 3-pole plugs
Cut-off technology: integrated electronic overload cut-off
Dimensions (LxWxH): 266 x 50 x 41 mm
Weight: 0.9 kg
Manufacturer:
SIMON PROtec Systems GmbH
Type: Supplementary electric locking ZV-ELIMATIC-A
Article number: B5 6105
