Control unit LiSE

Control panel for LiSE products for lift shaft smoke extraction

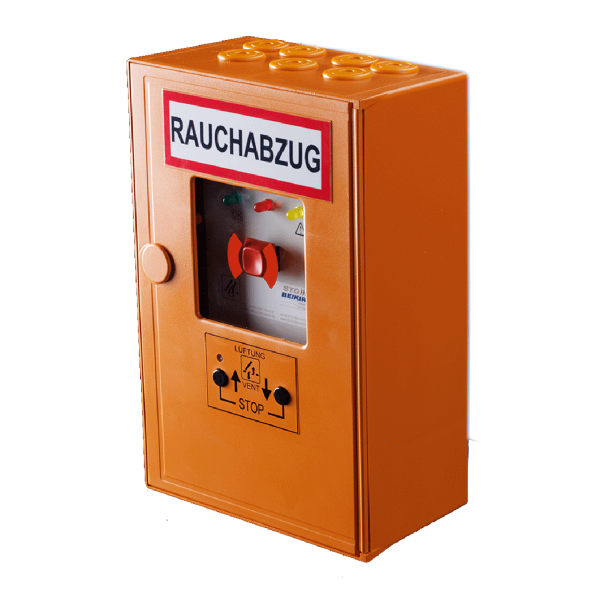

SHEV control panel, orange, type LiSE CE, for connection of max. 2 actuators each 1 A, in 1 SHEV group and 1 ventilation group, with integrated SHEV control panel and ventilation button, standard forwarding of the messages Fault and SHEV activated. Various setting options, e.g. stroke limitation, fault=SHEV, BMA, VdS triggering, SHEV Zu=Reset. Preset dip switches 3,8,9,10.

Connection for:
- 10 SHEV operating points
- 10 automatic detectors
- 10 ventilation button
- with built-in power supply 24V incl. charging unit and emergency power accumulators
- in AP plastic housing 220x145x85mm (HxWxD)
- Housing color RAL-2011, orange

Suitable as standard for connection to on-site bus systems (e.g. KNX/EIB) to implement various functions. For this purpose, the actuators provided by the customer must provide potential-free inputs and outputs.

Type tested: DIN EN 61010-1 with TÜV (registration no. 44 780 12026524).

Certified according to EN 12101-10 and tested according to prEN12101-9. This test still essentially meets the requirements of the respective VdS test.
