Multisensor LiSE
| Part number | A3 2503 |
| Input voltage | 24 V DC |

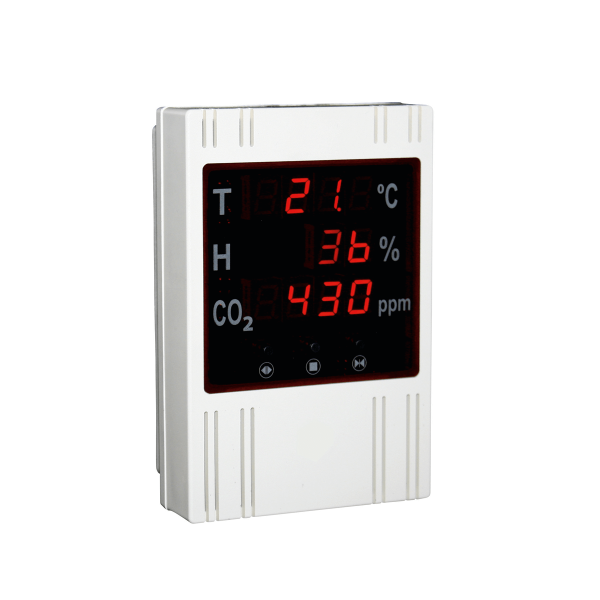

Multisensor for LiSE products for lift shaft smoke extraction
Multifunction sensor for recording and evaluating air values such as temperature, relative humidity and air quality (VOC, predominantly CO2) for the control of smoke and heat ventilation systems.
Functions:
- Display of temperature, humidity and CO2
- adjustable threshold values
- Programming of min/max values
- potential-free switching contacts for min./max. values
- integrated ventilation button
- Sensor can be switched off
Supply voltage: 24V DC (-20%, +30%)
Power consumption: 10...50 mA at 24V
Temperature range: 0...40°C, 10...90% RH, non-condensing
Switching current of the potential-free contacts: 0.5 A DC
Protection class: IP 20, for indoor use only
Dimensions: 120 x 80 x 38 mm (HxWxD)
Display:
- Temperature: 3 digits
- Air humidity: 2 digits
- CO2: 4 digits
| Matchcode | Multisensor LiSE |
| Article name | Multisensor LiSE |
| Part number | A3 2503 |
| Input voltage | 24 V DC |
