Smoke detector LiSE
| Part number | A3 2502 |

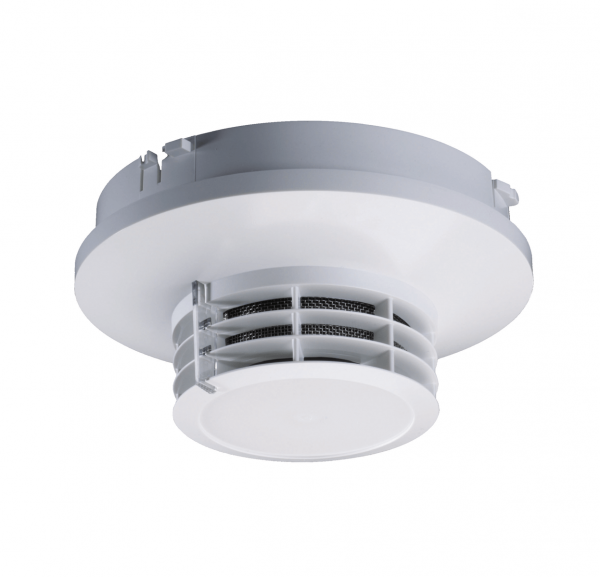

Smoke detector for LiSE products for lift shaft smoke extraction
Scattered light smoke detector for lift shaft smoke extraction, with base, acc. to EN 54-7, white, with "triggered" display, VdS approval no. G 207123. The scattered light smoke detector LiSE is a VdS approved and specially developed smoke detector for monitoring elevator shafts to detect smoke.
This product contains materials which are subject to the duty to inform according to article 33 of the regulation (EG) No. 1907 / 2006.
SVHC Material Information: Lead Titanium Zirconium Oxide.
Nominal data:
Operating voltage: 18 V DC to 30 V DC
Notification criterion: current increase, 2-wire technology
Response threshold in case of smoke: according to EN 54 part 7
Dimensions: Ø 118.8 x approx. 68 mm incl. base
| Matchcode | Rauchmelder LiSE |
| Article name | Rauchmelder LiSE |
| Part number | A3 2502 |
