Chain actuator EA230-K-50/300

    Part numberM2 5150
    Input voltage230 V AC
    Nominal current0.15
    Running speed11
    IP codeIP32
    Switch on duration30
Chain actuator EA230-K-50/300 230 V AC / 0.15 A / 500 N / 300 mm stroke / single operation... more
Product information "Chain actuator EA230-K-50/300"

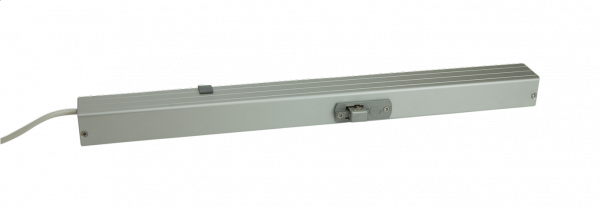

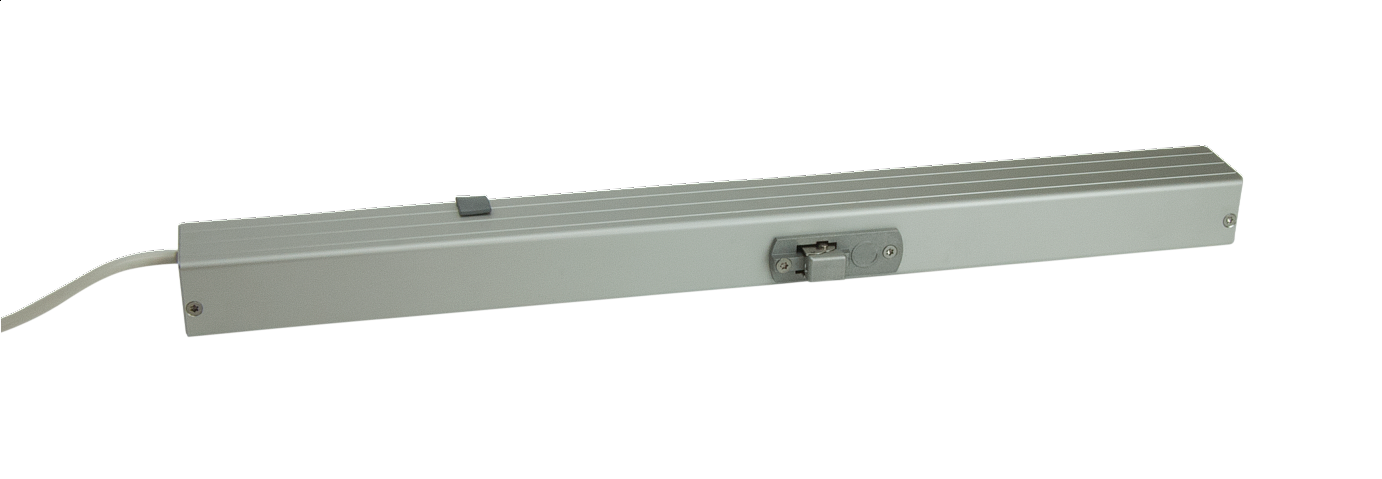

Chain actuator EA230-K-50/300
230 V AC / 0.15 A / 500 N / 300 mm stroke / single operation actuator

Chain actuator for SHEV and controlled natural ventilation applications.
Flexible installation at main closing edges.
Suitable for frame and sash mounting on inward and outward opening sashes/flaps in the facade.

Technical data:
Rated voltage: 230 V AC (- 10% / + 10%)
Rated current: 0.15 A
Switch-on duration: ED 30% (ON: 3 min / OFF: 7 min)
Push force: 500 N
Pulling force: 500 N
Nominal locking force: ≤ 700 N
Stroke length: 300 mm
Running speed: 11 mm/s
Protection class: IP32
Temperature range: -5°C - 75°C
Housing: Anodized EV1 aluminum profile housing

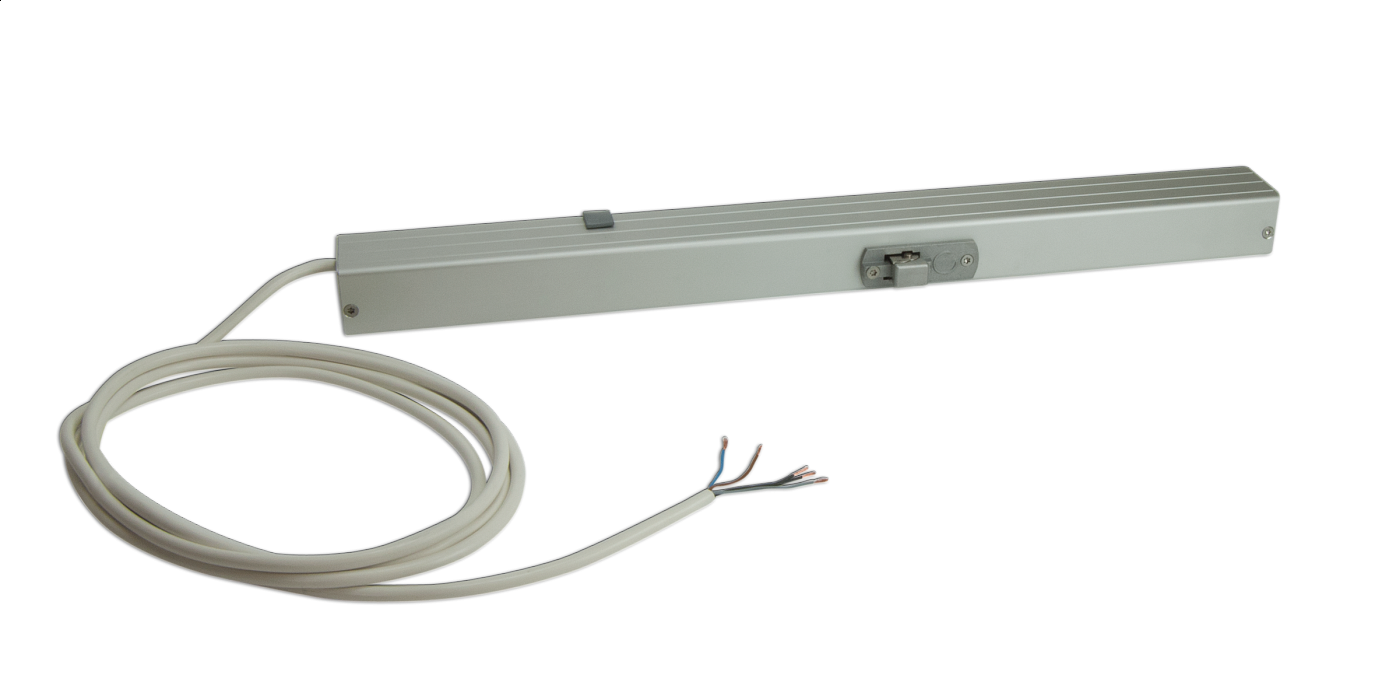

Connection cable: Silicone connection cable 5 x 0.75 mm² (length 3,000 mm)
Cut-off: Integrated electronic load cut-off
Dimensions (LxWxH): 546 x 50 x 41 mm
Weight: 2.12 kg

Brackets not included

Options:
- Coating according to RAL or DB

Manufacturer:
SIMON PROtec Systems GmbH
Type: Chain actuator EA230-K-50/300
Article number: M2 5150

Related links to "Chain actuator EA230-K-50/300"
Matchcode EA230-K-50/300 Article name Kettenantrieb EA230-K-50/300 Part number M2... more
MatchcodeEA230-K-50/300
Article nameKettenantrieb EA230-K-50/300
Part numberM2 5150
Input voltage230 V AC
Nominal current0.15
Input voltage range- 10 % / + 10 %
Stroke300
Push force500
Pull force500
Nominal locking force700
Cut-OffIntegrierte elektronische Lastabschaltung
Running speed11
IP codeIP32
Switch on duration30
Mounting wayattached
Weight2.12
HousingAluminium Profilgehäuse E6/EV1 eloxiert
Housing typeAluminium
ColourAuf Anfrage
Housing length546
Housing width50
Housing height41
Appliance classII
Connection cableSilikonanschlussleitung 5 x 0,75 mm² (Länge 3.000 mm)
Nominal working temperature20
Environment temperature range-5 °C - 75 °C
Brackets includedno
