chain actuator EA-KN-20-XS
| Part number | M2 5030 |
| Input voltage | 24 V DC |
| Nominal current | 0.32 |
| Running speed | 8 |
| IP code | IP32 |
| Switch on duration | 30 |

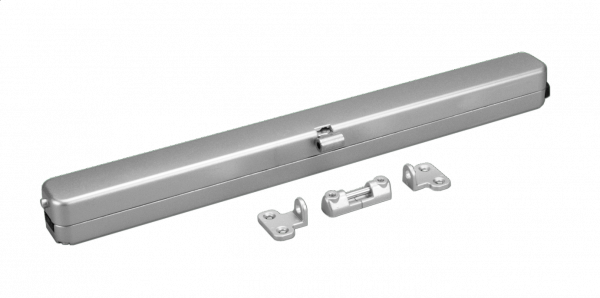

Chain actuator EA-KN-20-XS
24 V DC / 0.32 A / 150 N / 210 mm stroke / single operation actuator
Chain actuator for SHEV and controlled natural ventilation applications.
Flexible installation at main closing edges.
Suitable for frame and sash mounting on inward and outward opening sashes/flaps in the facade.
Technical data:
Rated voltage: 24 V DC
Rated current: 0.32 A
Switch-on duration: ED 30% (ON: 3 min / OFF: 7 min)
Push force: 150 N
Pulling force: 150 N
Nominal locking force: ≤ 1000 N
Stroke length: 210 mm
Running speed: 8 mm/s
Protection class: IP32
Temperature range: -5°C - 65°C
Housing: Anodized EV1 aluminum profile housing
Connection cable: silicone connection cable 3 x 0.75 mm², length 2 m
Cut-off: Integrated load cut-off with microprocessor
Dimensions (LxWxH): 28 x 28 x 310 mm
Weight: 0.72 kg
Brackets not included
Manufacturer:
SIMON PROtec Systems GmbH
Type: Chain actuator EA-KN-20-XS
Article number: M2 5030
- Do you have any questions concerning this product?
- Umweltproduktdeklaration (EPD)
- Catalogue (web) Smoke & Daily Vent
- Katalog (Web) RWA & Lüftung
- Sicherheitshinweise & Gewährleistungsbedingungen
- Safety instructions and warranty conditions
- Broschüre Fensterautomation
- Brochure Window Automation
- Environmental Product Declaration (EPD)
- Further products by SIMON PROtec
| Matchcode | EA-KN-20-XS |
| Article name | Kettenantrieb EA-KN-20-XS |
| Part number | M2 5030 |
| Input voltage | 24 V DC |
| Nominal current | 0.32 |
| Stroke | 210 |
| Push force | 150 |
| Pull force | 150 |
| Nominal locking force | 1000 |
| Cut-Off | Integrierte, elektronische Lastabschaltung |
| Running speed | 8 |
| IP code | IP32 |
| Switch on duration | 30 |
| Mounting way | integrated |
| Weight | 0.72 |
| Housing | Alu-Profilgehäuse EV1 eloxiert |
| Housing type | Aluminium |
| Colour | Auf Anfrage |
| Housing length | 28 |
| Housing width | 28 |
| Housing height | 310 |
| Appliance class | III |
| Connection cable | Silikonanschlussleitung 3 x 0,75 mm², Länge 2 m |
| Environment temperature range | -5 °C - 65 °C |
| Brackets included | no |
